Box to Pin Thread Drill Rod Connector Adapter for DTH Down The Hole Drill Pipe

Short Description:

Applicable Industries: Construction works, Energy & Mining
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2022
Place of Origin: Beijing, China
Brand Name: JCDRILL
Type: Water Swivel
Machine Type: Drilling Equipment
Material: High Manganese Steel, Carbon Steel
Processing Type: Casting
Use: Metal drilling, Mining
Local Service Location: None
Certification: ISO, API

Product Detail

Product Tags

Product Detail

Applicable Industries: Construction works, Energy & Mining Machine Type: Drilling Equipment
Video outgoing-inspection: Provided Material: High Manganese Steel, Carbon Steel
Machinery Test Report: Provided Processing Type: Casting
Marketing Type: Hot Product 2022 Use: Metal drilling, Mining
Place of Origin: Beijing, China Local Service Location: None
Brand Name: JCDRILL Certification: ISO, API
Type: Water Swivel

Product Features

Introduction

Sub adapter includes pin-pin adapter ,pin-box adapter and box-box adapter.



API standard adapters /coupling are used for rock breaking anchoring drilling ,and geological water well drilling operations. They are used for the conversion and connection of drill string components. They are one of the main tools for connecting upper and Iower drilling tools.



We can provide various from of couplings /adapters, Usually we use 35CrMo, 42CrMo and 40CrMo as the material of couplings/adapters. After rough processing, it is quenched and tempered heat treatment. After fine processing, we make the surface nitriding treatment. These process can effectively eliminate the failure rate of thread adhesion, thread broken and dilatation. It is more wear-resistant and easy to disassemble. All of equipment are adapted precision imported CNC lathes to do customized thread processing. It can not only ensure the standoff of the thread, but also ensure the precision.

BOX TO PIN
API Threads Length Weight Wrench Flats Diameter(mm) Parts No.
BOX BOX (mm) A B
2 3/8"REG 2 3/8"REG 140 4 65 77 77 BP11-14065-7777
2 3/8"REG 2 3/8"REG 140 5.5 65 90 90 BP11-14065-9090
2 3/8"REG 2 3/8"IF 144 5.5 65 90 90 BP12-14465-9090
2 3/8"REG 2 7/8"REG 130 8 65 95 95 BP13-13065-9595
2 3/8"REG 3 1/2"REG 120 10.5 95 90 102 BP15-12095-9002
2 3/8"IF 2 3/8"REG 164 6.8 65 90 90 BP21-16465-9090
2 7/8"REG 2 3/8"REG 154 6.5 65 90 90 BP31-15465-9090
2 7/8"REG 3 1/2"REG 120 11 95 90 115 BP35-12095-9015
3 1/2"REG 2 3/8"REG 219 12.5 95 115 90 BP51-21995-1590
3 1/2"REG 2 3/8"IF 160 10.5 95 115 115 BP52-16095-1515
3 1/2"REG 2 7/8"REG 160 10.8 95 115 115 BP53-16095-1515
3 1/2"REG 2 7/8"IF 160 10.8 95 115 115 BP54-16095-1515
3 1/2"REG 3 1/2"REG 160 10.5 95 115 115 BP55-16095-1515
4 1/2"REG 3 1/2"REG 235 10.5 95 146 115 BP65-23595-4615
2 3/8" REG 2"Z 300 15 67 76 76 BP110-30067-7676
F48x10 F42x10 203 4.6 40 59 59 BP78-20395-5959
F48x10 F48x10 203 5 40 59 59 BP77-20395-5959
F48x10 2"REG 203 5.2 40 59 59 BP79-20395-5959

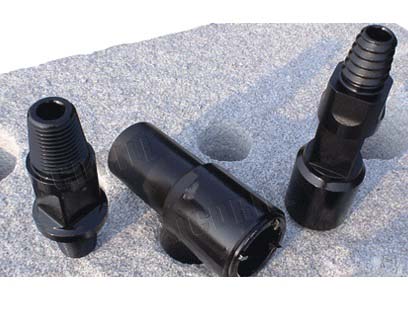

Sub Adapter Sub Adapter

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
