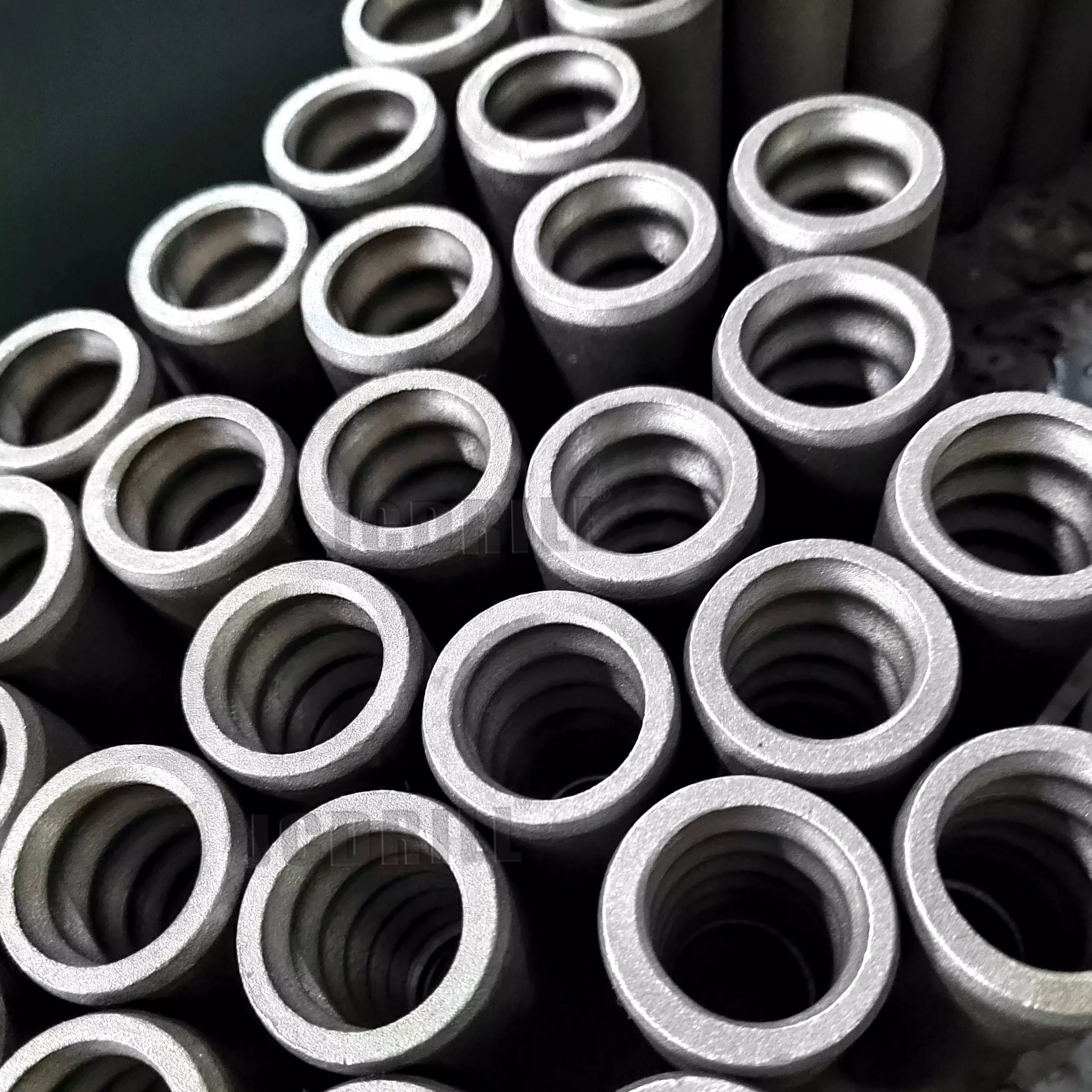

HL38 Thread Drill Pipe Coupling Joint Sleeve

Short Description:

Product Name:	Thread crossover coupling sleeve
Thread	R25,R28,R32,R3212,T38,T45,
Diameter	45mm-63mm (or 1 3/8 inch to 1 7/9 inch)
Length	150mm-210mm (or 6 inch to 8 1/4 inch)
Material:	High strength alloy steel bar
Type	full-bridge, semi-bridge etc.
Color	Yellow, Gold, Black or based on customer requirements.
MOQ:	No MOQ required for testing and trial order

Send email to us

Product Detail

Product Tags

Product Detail

Condition	New	Color	black or Customized
Applicable Industries	Construction works , Energy & Mining, Tunneling	Diameter	45MM-76MM
Video outgoing-inspection	Provided	Thread Type	R25,R28,R32,R38,T38,T45,T51
Machinery Test Report	Provided	Key words	Coupling Sleeve
Brand Name	Jcdrill	Application	Mining / Quarrying / Tunneling/Blasting
Type	Drill Sleeve	Length	150MM-235MM
Machine Type	Drilling Tool	Formation	Hard / Medium hard / Soft Rock Formation
Material	Carbide	Bridge type	Semi-bridge / Full-bridge
Processing Type	Forging	Raw Material	High quality alloy steel
Use	Mining

Product Features

BENCH DRILLING COUPLING SLEEVES
Coupling sleeve for Extension Drill Rod connection.High quality of alloy steels and CNC machining guarantee our reliable and consistent quality control of coupling sleeves.when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission.
Coupling sleeves are also used to connect several rods to each other in the same way. Coupling sleeves have a middle stop to prevent over-threading on to the drill rod.
Thread: R25, R28, R32,R3212, HL38,T45, T51,
Function: Coupling sleeve, Adapter Coupling
Type: Full-bridge, Semi-bridge
Our factory
Shipment & package

Factory :

1. We have 15-year engineering experience on drilling
We can provide detailed solution for you by email,phone and even video if you have any problems while drilling
2. Professional quality control system
Advanced equipment , International quality certification and ecperienced worker
3. In-time delivery
3 days if in stock; 15-20 days for production
4. Good after-service
1) Full compensation if it occurs that buttons are out ,broken and the body broken while button is worn less than 1/3
2) 24-hour online service
5. Strong production capacity.

HL38
Drill Bit	Bit Dia.		NO x Button x Dia.			Flushing Hole		Weight
Drill Bit	mm	inch	Front	Gauge	Angle	Front	Side	（KG）
	spherical Buttons
	64	2 1/2	3x11	6x12	35°	3		1.8
	70	2 3/4	4x11	8x11	40°	2		1.9
	70	2 3/4	4x10,1x10	8x11	30°	4		1.9
	70	2 3/4	3x10,1x10	8x12	35°	3		1.8
	76	3	4x11	8x11	40°	2		2.4
	76	3	3x11,1x11	6x12	35°	3	1	2.6
	76	3	4x11,1x11	8x12	35°	4		2.6
	89	3 1/2	5x12	8x12	35°	2		3.3
	89	3 1/2	4x13,1x13	8x13	35°	4		3.3
	Parabolic Buttons
	64	2 1/2	3x11	6x12	35°	3		1.8
	70	2 3/4	4x11	8x11	40°	2		1.9
	70	2 3/4	4x10,1x10	8x11	30°	4		1.9
	76	3	4x11	8x11	40°	2		2.4
	76	3	3x11,1x11	6x13	35°	3	1	2.6
	76	3	4x11,1x11	8x12	35°	4		2.6
	89	3 1/2	5x12	8x12	35°	2		3.3
	89	3 1/2	4x13,1x13	8x13	35°	4		3.3
	spherical Buttons
	64	2 1/2	3x10,1x10	6x11	35°	3		2.2
	70	2 3/4	4x10,1x10	8x11	35°	4		2.4
	76	3	4x11,1x11	8x11	40°	4		3.3
	76	3	4x11,1x11	8x12	35°	4		3.3
	89	3 1/2	5x12	8x12	35°	2		4.8
	89	3 1/2	4x13,1x13	8x13	35°	4		4.8
	Parabolic Buttons
	64	2 1/2	3x10,1x10	6x11	35°	3		2.2
	70	2 3/4	4x10,1x10	8x11	35°	4		2.4
	76	3	4x11,1x11	8x11	40°	4		3.3
	76	3	4x11,1x11	8x12	35°	4		3.3
	89	3 1/2	5x12	8x12	35°	2		4.8
	89	3 1/2	4x13,1x13	8x13	35°	4		4.8
Drill Roll				Length		Dimaeter		Weight
Drill Roll				mm	inch	mm	inch	（KG）
				1220	4'	39	1 1/2	10.2
				1525	5'	39	1 1/2	12.8
				1830	6'	39	1 1/2	15.3
				2435	8'	39	1 1/2	20.4
				3050	10'	39	1 1/2	25.5
				3660	12'	39	1 1/2	30.9
				3964	13'	39	1 1/2	33.2
				4270	14'	39	1 1/2	35.7
				4880	16'	39	1 1/2	41
				5530	18'11/2''	39	1 1/2	46.3
				6095	20'	39	1 1/2	50.9
				915	3'	39	1 1/2	10.7
				1220	4'	39	1 1/2	13.3
				1525	5'	39	1 1/2	15.8
				1830	6'	39	1 1/2	18.3
				3050	10'	39	1 1/2	28.5
				3660	12'	39	1 1/2	33.6
				4270	14'	39	1 1/2	38.7
				4880	16'	39	1 1/2	43.7
				5530	18'11/2''	39	1 1/2	49.2
				6095	20'	39	1 1/2	53.9
				1220	4'	32	1 1/4	8.6
				1830	6'	32	1 1/4	12.6
				2435	8'	32	1 1/4	16.6
				3050	10'	32	1 1/4	20.8
				3660	12'	32	1 1/4	24.9
Coupling			Length		Dimaeter		Thread	Weight
Coupling			mm	inch	mm	inch		（KG）
			170	6 3/4	55	2 5/32	HL38	1.9
			190	7 1/2	55	2 5/32	HL38	2.1


Commercial Terms of Product

Minimum Order Quantity	N/A
Price
Packaging Details	Standard Export Delivery Package
Delivery Time	7days
Payment Terms	T/T
Supply Ability	Based on Detailed Order
