| Place of Origin | Beijing, China | Brand Name | JCDRILL |
| Type | Core Barrel | Machine Type | Drilling Tool |
| Material | Alloy steel | Processing Type | Forging |
| Use | Ore Mining, core drilling | Certification | ISO |
Ntroduction
T2 series are thin wall double tube core barrels, used for surface exploration, especially mining applications. Due to their thin kerf, these core barrels provide rapid penetration.
Our head assembly features long life span, good compatibility with parts like inner tube and outer tube from other vendors, and availability in all spare parts.
Available in diameters: T2-36, T2-46, T2-56, T2-66, T2-76, T2-86, T2-101.
1.5m and 3.0m length core barrels are available.
Specification
| No. | Core Barrel Std. | Item | Bit Std. | Reamer Std. | Bit OD（mm） | Bit ID（mm） |
| T2 Series | ||||||
| 1 | T2-46 | 1.5M double tube core barrel | T2-46 | T2-46 | 46 | 31.7 |
| 2 | T2-56 | 1.5M double tube core barrel | T2-56 | T2-56 | 56 | 41.7 |
| 3 | T2-56 | 3M double tube core barrel | T2-56 | T2-56 | 56 | 41.7 |
| 4 | T2-66 | 1.5M double tube core barrel | T2-66 | T2-66 | 66 | 51.7 |
| 5 | T2-66 | 3M double tube core barrel | T2-66 | T2-66 | 66 | 51.7 |
| 6 | T2-76 | 1.5M double tube core barrel | T2-76 | T2-76 | 76 | 61.7 |
| 7 | T2-76 | 3M double tube core barrel | T2-76 | T2-76 | 76 | 61.7 |
| 8 | T2-86 | 1.5M double tube core barrel | T2-86 | T2-86 | 86 | 71.7 |
| 9 | T2-86 | 3M double tube core barrel | T2-86 | T2-86 | 86 | 71.7 |
| 10 | T2-101 | 1.5M double tube core barrel | T2-101 | T2-101 | 101 | 83.7 |
| 11 | T2-101 | 3M double tube core barrel | T2-101 | T2-101 | 101 | 83.7 |

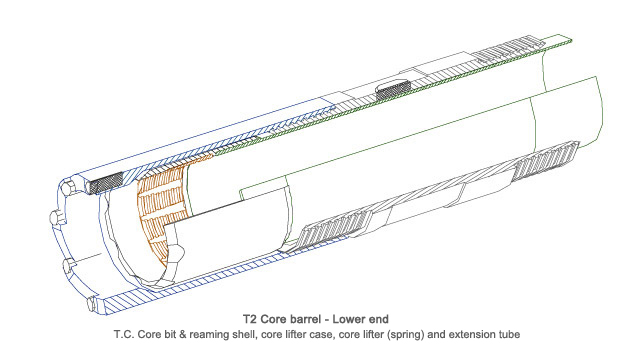

Technology Design
Application
Packaging & Delivery
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
