| Model Number | 3/3.5,4,5,6,8,10,12 inches | Certification | ISO CE |
| Drill Rock hardness | F=6-20 | Warranty | 1 Year |
| Condition | New | After-sales Service | 7X24hours available |
| Type | Down the hole drill bits | Color | As request |
| Processing Type | Forging | Button shape | Spherical, Ballistic, Semi-ballistic |
| Place of Origin | Hebei, China (Mainland) | Bit face shape | Flat, concave, convex, drop center |
| Brand Name | JCDRILL | Other shanks | COP,DHD,MISSION, SD |
| Usage | Rock drilling | Type | DTH Hammer bits |
| Material | Tungsten Carbide | Machine Type | Drilling Tool |
| Advantages | high quality and factory prices | Bit face shape | Flat, concave, convex, drop center |
| Application | Quarry or mining or well drilling | Packing | Carton and Wooden case |

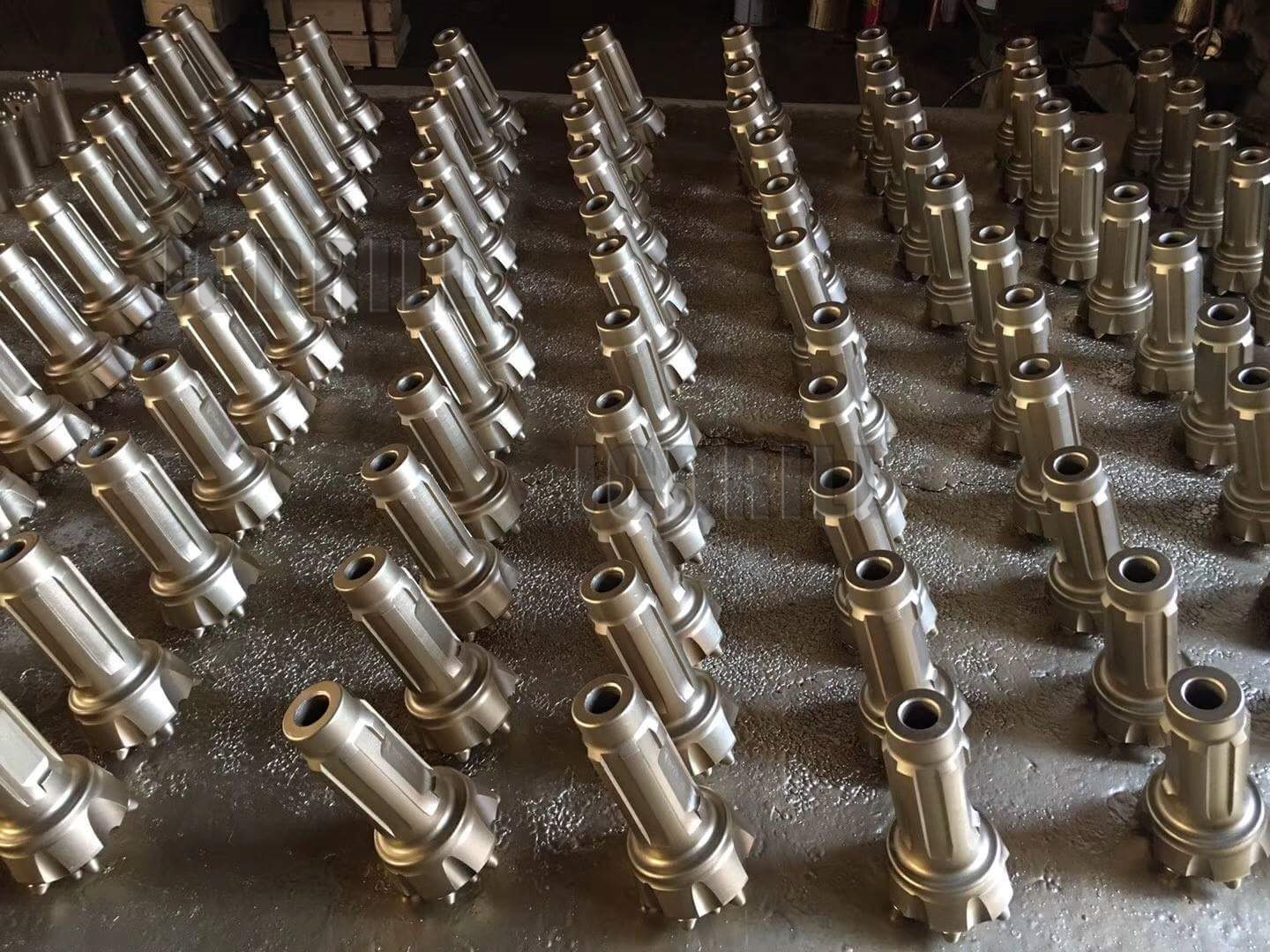

We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, top hammer button bits, coupling, cross bits, drill rods .
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.
| Lower Pressure Button Bits | ||||||
| Model | Head,Dia.（mm） | Shank Length | Apline Q'ty | Port Hole Q'ty | Drill Bit Face | |
| CIR | CIR65 | 65,68 | 105 | 4 | 2 | Flat Face |
| CIR70 | 76,85 | 111 | 4 | 2 | Flat Face,Convex Face | |
| CIR90 | 90,110 | 130 | 6 | 2 | Concave Face,Convex Face | |
| CIR110 | 110,130,140 | 140 | 6 | 2 | Concave Face,Flat Face | |
| CIR150 | 155,165,178 | 170 | 6 | 3 | Convex Face | |
| CIR170 | 195,203 | 170 | 6 | 3 | Convex Face | |
| Bit Shank | Bit Diameter.(mm) |
| CIR-Series Low Air pressure DTH Bits | |
| CIR65,HR65 | 65,68,75mm |
| CIR80,HR80 | 83,85mm |
| CIR90,HR90 | 85,90,110mm |
| CIR110,HR110 | 110,115,120,135mm |
| HR150, | 155,160,165,170,180,210,220mm |
| 1''-2''Middle Air pressure DTH Bits | |
| BR1,BR2,HD25 | 64,70,76,80,82,90mm |
| 3'' High Air pressure DTH Bits | |
| COP32,BR3,HD35,IR3.5,COP34,QL30,M30 | 85,90,95,100,105mm |
| 4'' High Air pressure DTH Bits | |
| HD45,DHD340A,COP44,SD4,QL40,M40,HM4 | 105,110,115,120,127,130,133mm |
| 5'' High Air pressure DTH Bits | |
| HD55,DHD350,COP54,SD5,QL50,M50,HM5 | 130,135,140,146,152,165mm |
| 6'' High Air pressure DTH Bits | |
| HD65,DHD360,COP64,SD6,QL60,M60,HM6 | 152,155,165,171,190,203mm |
| 8'' High Air pressure DTH Bits | |
| HD85,DHD380,COP84,SD8,QL80,M80,HM8 | 200,203,216,222,226,229,,241,254,270,305mm |
| 10'' High Air pressure DTH Bits | |
| SD10,NUMA100 | 254,305,311,318,330mm |
| 12'' High Air pressure DTH Bits | |
| DHD1120,SD12,NUMA120,NUMA125 | 305,311,330,356,381mm |
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
