| Applicable Industries: | Construction works, Energy & Mining | Machine Type: | Drilling Equipment |
| Video outgoing-inspection: | Provided | Material: | High Manganese Steel, Carbon Steel |
| Machinery Test Report: | Provided | Processing Type: | Casting |
| Marketing Type: | Hot Product 2022 | Use: | Metal drilling, Mining |
| Place of Origin: | Beijing, China | Local Service Location: | None |
| Brand Name: | JCDRILL | Certification: | ISO, API |
| Type: | Water Swivel |
Introduction
DTH sub adapter down the hole hammer rod adaptor
Rock drilling tools manufacturer JCDrill: The sub adapter of drill-class production technology, and has formed a complete
production system has a number of leading level of electro-hydraulic forging hammer, to controll atmosphere furnace heat treatment production line and excellent Seiko CNC machine tool production equipment. All parts CNC machining, the key technology of CNC control to ensure that the products of high quality, high reliability.
Drill String Accessories
JCDRILL offers a range of drill string accessories including Water Swivels, Plugs, Cross-over Subs (Adaptors) and recovery tools.

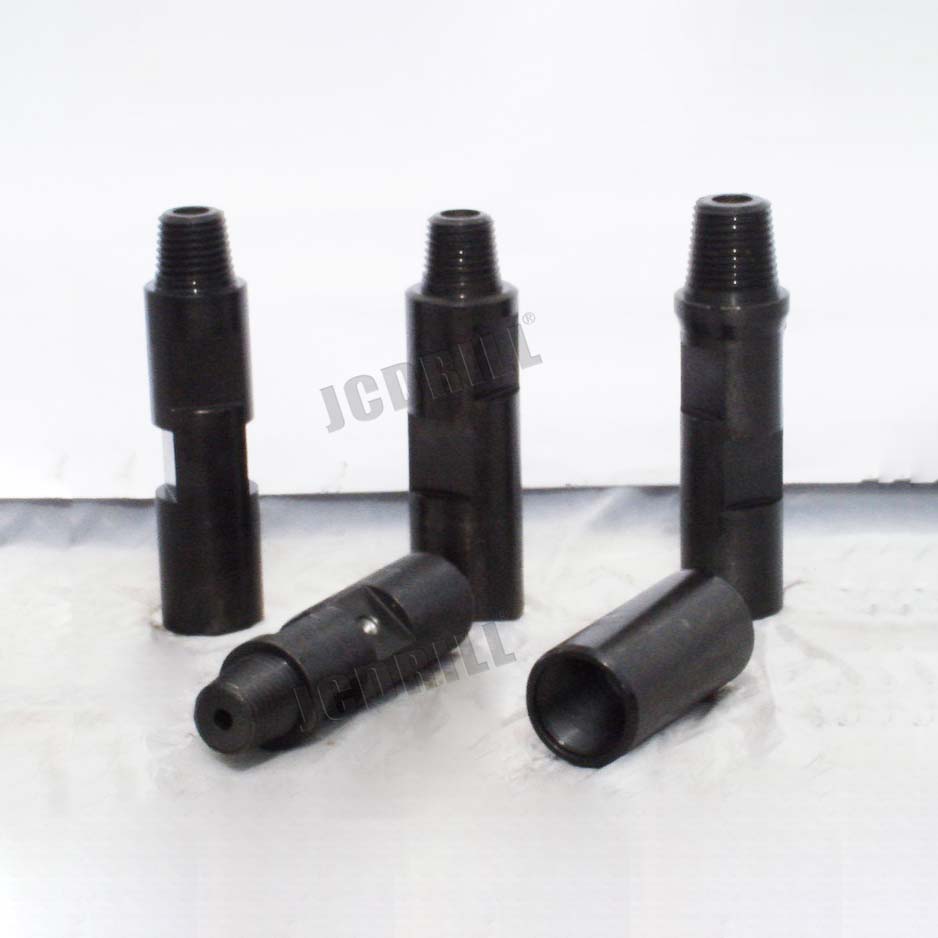

Sub Adapter for DTH Hammer
Type：Box to Box, Pin to Pin, Box to Pin
Thread: API REG，IF
| PIN TO PIN | |||||||
| API Threads | Length | Weight | Wrench Flats | Diameter(mm) | Parts No. | ||
| BOX | BOX | (mm) | (ka) | (mm | A | B | |
| 2 3/8"REG | 2 3/8"REG | 70 | 5 | 65 | 90 | 90 | PP11-7065-9090 |
| 2 3/8"REG | 3 1/2"REG | 97 | 9 | 95 | 90 | 115 | PP15-9795-9590 |
| 3 1/2"REG | 3 1/2"REG | 90 | 10 | 95 | 115 | 115 | PP55-9095-1515 |
| 2 3/8"REG | 2 7/8"REG | 152 | 8 | 70 | 90 | 90 | PP13-5270-9090 |
| 3 1/2"REG | 4 1/2"REG | 240 | 10.5 | 120 | 115 | 140 | PP56-4020-1540 |
| 4 1/2"REG | 4 1/2"REG | 255 | 11 | 120 | 146 | 146 | PP66-5520-4646 |
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
