| Brand Name | JCDRILL | Advantage | Direct Manufacturer |
| Type | Tungstern Carbide Threaded Drill Bits | Application | Mine,Ore,Railway,Tunnel,Water Irrigation etc. |
| Machine Type | Drilling Tool | Feature | Fast Penetration Rate With Good Wearing Resistance |
| Material | Tungsten Carbide and High Quality Alloy Steel | Threaded | R25 R28 R32 R38 T38 T45 T51 etc |
| Processing Type | Casting | Suitable Brand | Atlas copco,Boart longyear,Halco,Fantini,Furukawa... |
| Use | Rock Drilling, Underground Mining, Quarry, Blasting, etc | Name | Tungstern Carbide Threaded Button Rock Drill Bits |
Introduction
JCDRILL is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, mining drilling, and also demolition project.
Product General Introduction:
1. Application:
The thread drill bits / jack hammer bits / button bits are widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.
2. Material:
Thread Drill bits are made by high quality alloy steel bar and tungsten carbides.
Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks.
3. OEM:
In addition, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Characteristic
(1)Bit body : normal type and retrac type
(2)R thread: R25 R28 R32 R38
(3)T thread: T38 T45 T51
(4)Bit diameter: 45-89mm.

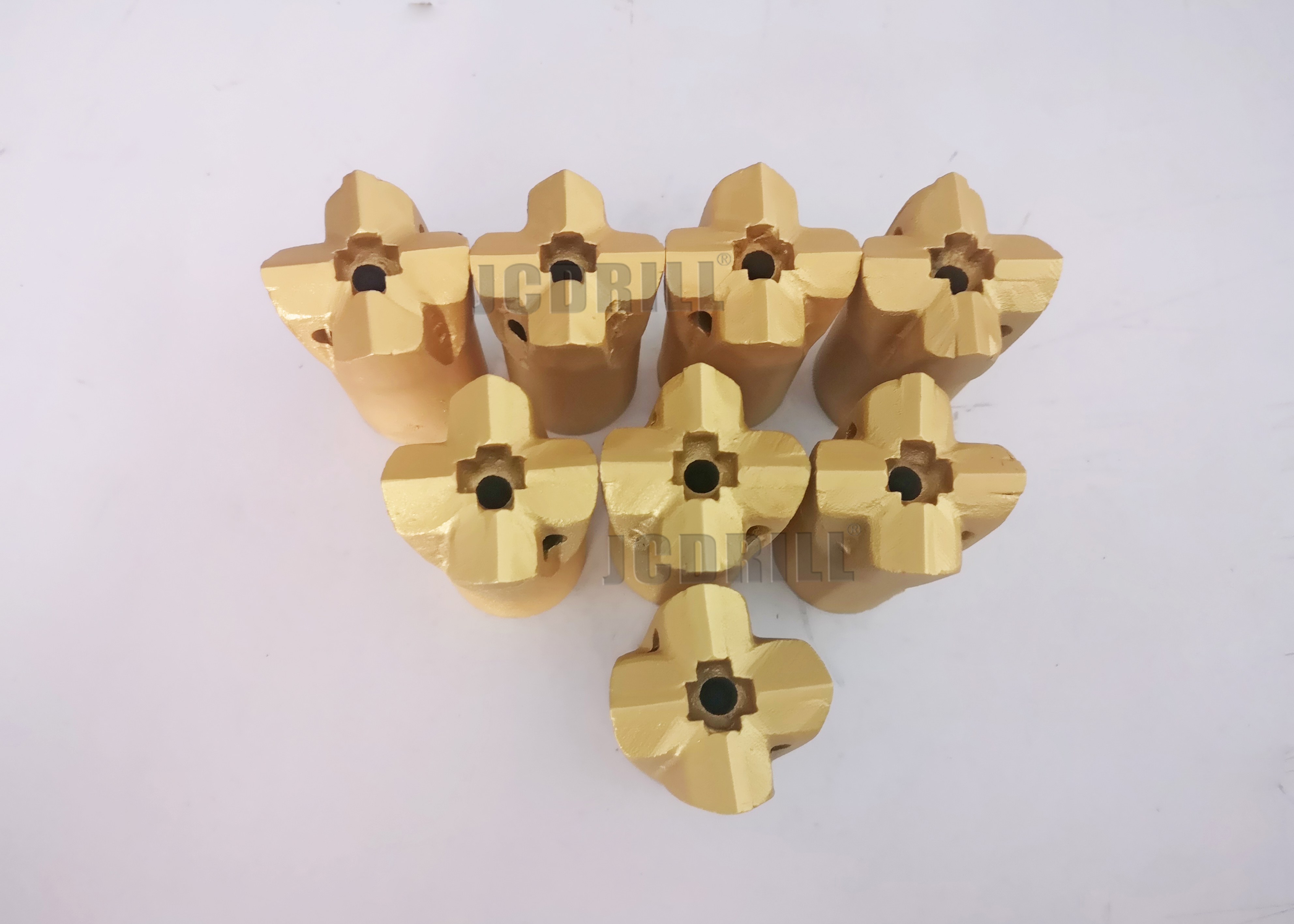

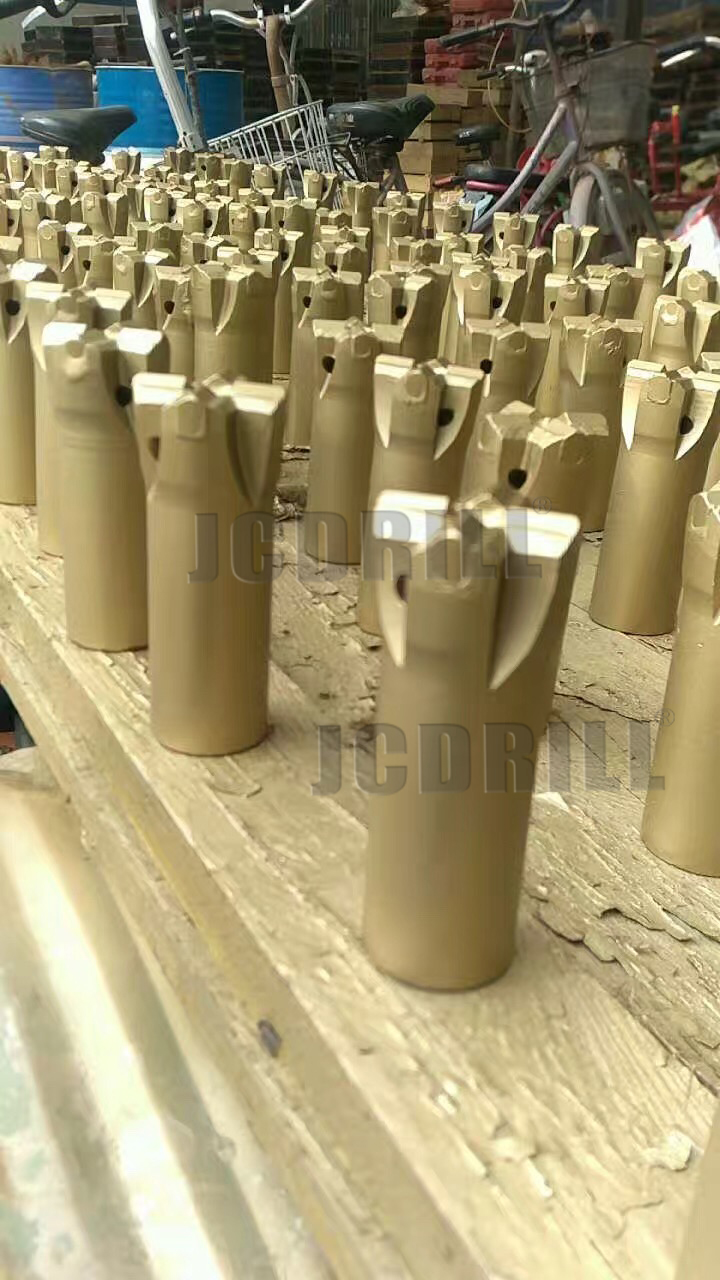

(5)Drill bit models: cross bit/button bit
(6)Button bit shape: spherical/parabolic
(7)Bit face shape: flat face and drop centre
| T51 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
spherical Buttons | |||||||
| 89 | 3 1/2 | 4x13 | 8x13 | 40° | 2 | 4.9 | ||
| 89 | 3 1/2 | 5x13 | 8x13 | 35° | 2 | 1 | 4.9 | |
| 89 | 3 1/2 | 3x11,2x11 | 35° | 4 | 4.9 | |||
| 89 | 3 1/2 | 4x11,1x11 | 8x13 | 35° | 4 | 4.9 | ||
| 102 | 3 1/2 | 4x13,1x13 | 8x13 | 35° | 4 | 4.9 | ||
| 102 | 4 | 4x14 | 8x14 | 40° | 2 | 5.8 | ||
| 102 | 4 | 6x13 | 8x16 | 35° | 2 | 1 | 5.8 | |
| 102 | 4 | 3x13,2x13 | 6x14 | 35° | 3 | 1 | 5.8 | |
| 102 | 4 | 4x13,1x13 | 8x14 | 35° | 4 | 5.8 | ||
| 115 | 4 | 4x13,2x13 | 8x13 | 35° | 4 | 1 | 5.8 | |
| 115 | 4 1/2 | 6x14 | 8x14 | 35° | 2 | 6.8 | ||
| 115 | 4 1/2 | 6x14 | 8x16 | 35° | 2 | 6.8 | ||
| 115 | 4 1/2 | 4x13,2x13 | 8x14 | 35° | 4 | 6.8 | ||
| 115 | 4 1/2 | 4x13,3x13 | 8x14 | 35° | 4 | 6.8 | ||
| 115 | 4 1/2 | 4x14,2x14 | 8x16 | 35° | 4 | 6.8 | ||
| 127 | 5 | 8x14 | 8x16 | 35° | 2 | 1 | 7.5 | |
| 127 | 5 | 4x16,2x13 | 8x16 | 35° | 4 | 7.5 | ||
| 127 | 5 | 4x14,3x14 | 8x14 | 35° | 4 | 7.5 | ||
| Parabolic Buttons | ||||||||
| 89 | 3 1/2 | 5x13 | 8x13 | 35° | 2 | 1 | 4.9 | |
| 89 | 3 1/2 | 3x11,2x11 | 6x13 | 35° | 4 | 4.9 | ||
| 89 | 3 1/2 | 4x11,1x11 | 8x13 | 35° | 4 | 4.9 | ||
| 89 | 3 1/2 | 4x13,1x13 | 8x13 | 35° | 4 | 4.9 | ||
| 102 | 4 | 4x14 | 8x14 | 40° | 2 | 5.8 | ||
| 102 | 4 | 6x13 | 8x16 | 35° | 2 | 1 | 5.8 | |
| 102 | 4 | 3x13,2x13 | 6x14 | 35° | 3 | 1 | 5.2 | |
| 102 | 4 | 4x13,1x13 | 8x14 | 35° | 4 | 5.8 | ||
| 102 | 4 | 4x13,2x13 | 8x13 | 35° | 4 | 1 | 5.8 | |
| 115 | 4 1/2 | 6x14 | 8x16 | 35° | 2 | 6.8 | ||
| 115 | 4 1/2 | 4x13,2x13 | 8x14 | 35° | 4 | 6.8 | ||
| 115 | 4 1/2 | 4x13,3x13 | 8x14 | 35° | 4 | 6.8 | ||
| 115 | 4 1/2 | 4x14,2x14 | 8x16 | 35° | 4 | 6.8 | ||
| Drill Roll | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
3050 | 10' | 52 | 2 | 45.3 | |||
| 3660 | 12' | 52 | 2 | 54.1 | ||||
| 4270 | 14' | 52 | 2 | 63 | ||||
| 4880 | 16' | 52 | 2 | 71.8 | ||||
| 5530 | 18' | 52 | 2 | 81.2 | ||||
| 6095 | 20' | 52 | 2 | 89.4 | ||||
 |
1525 | 5' | 52 | 2 | 26.2 | |||
| 1830 | 6' | 52 | 2 | 30.6 | ||||
| 3050 | 10' | 52 | 2 | 48.3 | ||||
| 3660 | 12' | 52 | 2 | 57.1 | ||||
| 4270 | 14' | 52 | 2 | 66 | ||||
| 4880 | 16' | 52 | 2 | 74.8 | ||||
| 5530 | 18' | 52 | 2 | 84.2 | ||||
| 6095 | 20' | 52 | 2 | 92.4 | ||||
| Coupling | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
225 | 8 7/8 | 71 | 2 51/64 | 4.6 | |||
| 225 | 8 7/8 | 76 | 3 | 4.8 | ||||
| 235 | 9 1/4 | 72 | 2 7/8 | 4.7 | ||||
| 235 | 9 1/4 | 77 | 3 | 4.9 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
