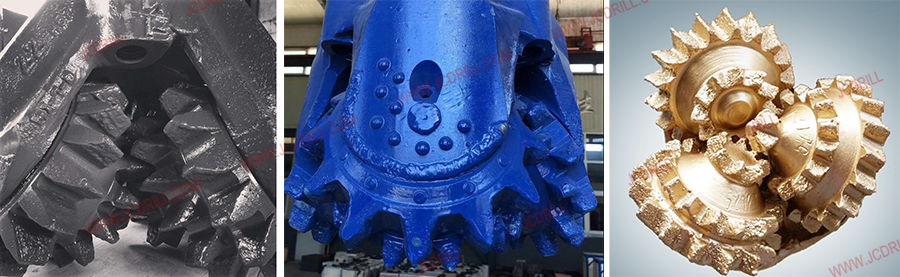

Tricone Bits Introduction

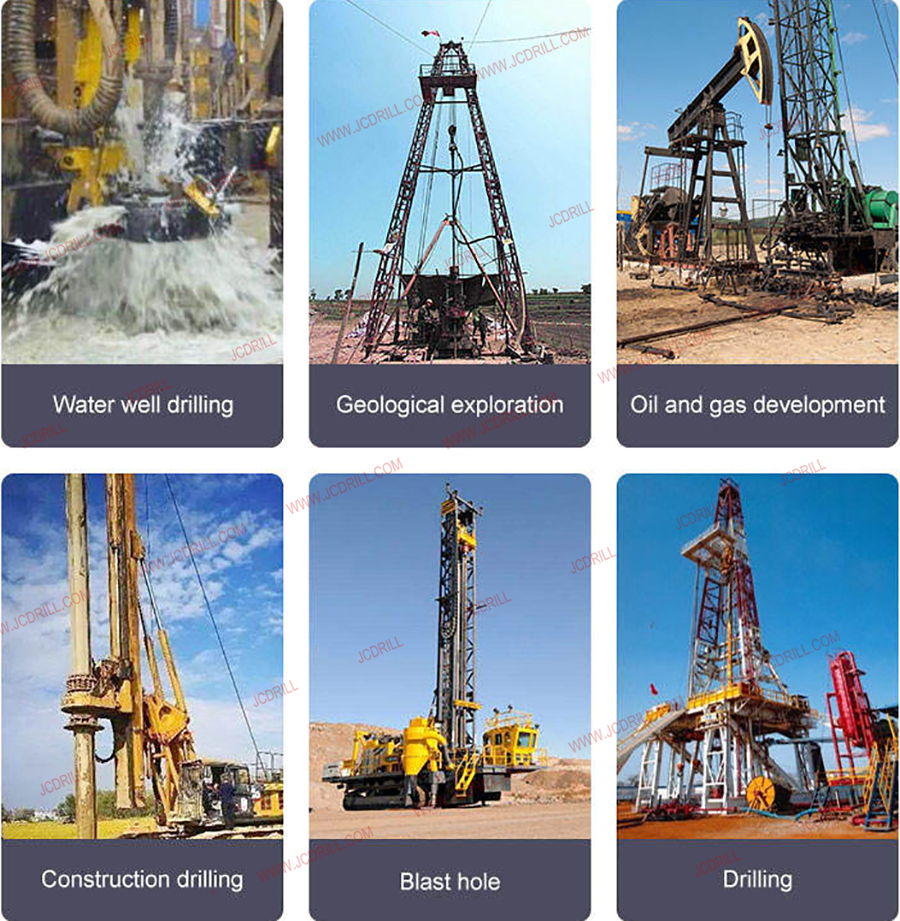

Tricone bit is an important tool for oil drilling. Its working performance directly affects drilling quality, drilling efficiency and drilling cost. Roller bit: It can be divided into single cone, double cone, tri cone and multi cone bits according to the number of cutter. Tricone bit is the most commonly used bit at home and abroad.Our products are mainly used in: oil drilling, water well, natural gas drilling, geothermal well drilling, air conditioning well drilling, coal mine exploration, mining, bridge construction, etc.We have a complete range of products including DTH bits, tricone bits, PDC drill bits, impregnated diamond coring bits, water well bits, oil bits, mine bits, drill pipes, drilling rigs and drilling tools. Welcome new and old customers to negotiate cooperation.
Tricone Bits Application
Table of classification of formation hardness and bit selection
| Roller cone bit | IADC code of diamond bit | Formation description | Rock type | Compressive strength (Mpa) |
ROP(m/h) |
| IADC code | |||||
| 111/124 | M/S112~M/S223 | Very soft:sticky soft formation with low compressive strength. | Clay Siltstone sandstone |
<25 | >20 |
| 116/137 | M/S222~M/S323 | Soft:soft formation with low compressive strength and high drillability. | Clay rock Marl Lignite sandstone |
25~50 | 10~20 |
| 417/527 | M/S323~M/S433 | Medium soft:soft to medium formation with low compressive strength and steak. | Clay rock Marl Lignite Sandstone Siltstone Anhydrite Tuff |
50~75 | 5~15 |
| 517/537 | M322~M443 | Medium:medium to hard formation with high compressive strength and thin abrasive streak. | Mudstone Dark rock shale |
75~100 | 2~6 |
| 537/617 | M422~M444 | Medium hard:hard and dense formation with high compressive strength and medium abrasiveness. | Dark rock Hard shale Anhydrite Sandstone Dolomite |
100~200 | 1.5~3 |
Steel Tooth Tricone Bits Size
|
Regular Sizes
|
Regular IADC
|
API Reg Pin
|
Make-up Torque(N.m)
|
|
3 7/8"(98.4mm)
|
126/216/637
|
2 3/8
|
4100~4700
|
|
4 5/8"(117.4mm)
|
126/216/517/537/637
|
2 7/8
|
6100~7500
|
|
5 1/4"(133.3mm)
|
126/216/517/537/637
|
3 1/2
|
9500~12200
|
|
5 5/8"(142.8mm)
|
126/216/517/537/637
|
3 1/2
|
9500~12200
|
|
5 7/8"(149.2mm)
|
126/216/517/537/637
|
3 1/2
|
9500~12200
|
|
6"(152.4mm)
|
126/127/216/517/537/617/637
|
3 1/2
|
9500~12200
|
|
6 1/4"(158.7mm)
|
126/127/216/517/537/617/637
|
3 1/2
|
9500~12200
|
|
6 1/2"(165mm)
|
126/127/216/517/537/617/637
|
3 1/2
|
9500~12200
|
|
7 1/2"(190mm)
|
126/216/517/537
|
4 1/2
|
16300~21700
|
|
7 5/8"(193mm)
|
126/216/517/537
|
4 1/2
|
16300~21700
|
|
7 7/8"(200mm)
|
126/216/517/537
|
4 1/2
|
16300~21700
|
|
8 1/2"(215.9mm)
|
117/127/217/437/517/537/617/637
|
4 1/2
|
16300~21700
|
|
9 1/2"(241.3mm)
|
117/127/217/437/517/537/617/637
|
6 5/8
|
38000~43400
|
|
9 7/8"(250.8mm)
|
117/127/217/437/517/537/617/637
|
6 5/8
|
38000~43400
|
|
10 5/8(269.8mm)
|
117/127/137/217/517/537/617/637
|
6 5/8
|
38000~43400
|
|
11 5/8(295.3mm)
|
117/127/137/217/517/537/617/637
|
6 5/8
|
38000~43400
|
|
12 1/4"(311.1mm)
|
114/127/217/437/517/537/617/637
|
6 5/8
|
38000~43400
|
|
13 5/8"(346.0mm)
|
127/217/517/537/617/637
|
6 5/8
|
38000~43400
|
|
14 3/4"(374.6mm)
|
127/217/517/537/617/637
|
7 5/8
|
46100~54200
|
|
17 1/2"(444.5mm)
|
114/115/125/215/515/535/615/635
|
7 5/8
|
46100~54200
|
|
26"(660.4mm)
|
114/115/125/215/515/535/615
|
7 5/8
|
46100~54200
|
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
