BH190 water well drilling DTH back reverse hammer

Short Description:

Condition New
Type Rotary Drilling Rig
Processing Type Forging
 Place of Origin Beijing, China (Mainland)
Brand Name JCDRILL
Usage Rock drilling
Material Carbide

Product Detail

Product Tags

Product Detail

Model Number 3/3.5,4,5,6,8,10,12 inches Certification ISO CE
Drill Rock hardness F=6-20 Warranty 1 Year
Condition New After-sales Service 7X24hours available
Type Rotary Drilling Rig Color As request
Processing Type Forging Button shape Spherical, Ballistic, Semi-ballistic
 Place of Origin Beijing, China (Mainland) Bit face shape Flat, concave, convex, drop center
Brand Name JCDRILL Other shanks COP,DHD,MISSION, SD
Usage Rock drilling Type DTH Hammer
Material Carbide Machine Type Drilling Tool

Product Features

Introduction

The back hammer may be mounted on the drill pipe joint between the borehole gripper and the swivel head, thus creating a combined effect of effective reverse impact and vibration.

Sturdy and reliable, the back hammer is composed of three components and a plastic housing which acts both as an exhaust emissions guider and a muffler. With regards to the maintenance, it's only necessary to keep it clean and the linking section we protected when the back hammer is not in use.

Bassed the characteristics of the wells,oil,gas and construction drilling, our company self-designed, developed and manufactured this kind of high pressure DTH hammer.



1.Using the latest rock drilling theory,optimizing the inside structure and the size of the air distrbution,to make the DTH hammer obtain the optimal energy transfer and make it achieve faster drilling speed and lower air consumption.

2.For such projects as the drill bit break,retrieving very difficult,we specially designed a safe and reliable anti-shedding device for the bit.

3.The check valve can be replaced to replaced to the one with bigger air controlling hole to provide more efficient cutting discharge.

4.The top sub and the drive chuck have special thread,which can achieve an easier disassemble.

DTH back hammers are used for dealing with the stuck drill, hit up to solve the stuck drill problem.

Main model: BH140 BH170 BH190 BH240

Back Hammer
Products Pressure Thread Total Length(mm) Diameter KG
LBH140 8Bar API 3 1/2" 510 140 31
LBH160 8Bar API 3 1/2" 540 160 44
LBH190 8Bar API 4 1/2" 580 190 63
LBH240 8Bar API 4 1/2" 600 240 85
DTH Hammer
Type Model Outer Diameter
High pressure DTH Hammer
3 inch JD25A 71mm
3.5 inch JD35A/M30 82mm
4 inch JD45A/QL40A/M40/SD4 99mm
5 inch JD55A/QL50A/M50/SD5 125mm
6 inch JD65A/QL60A/M60/SD6 142mm
8 inch JD85A/QL80A/M80/SD8 180mm
10 inch HD100A/SD10 225mm
12 inch JD125A/SD12 275mm
14 inch JD140A -
Middel Pressure DTH Hammer
2.5 inch BR1 56mm
3 inch BR2 64mm
3.5 inch BR3 82mm
Lower Pressure DTH Hammer
3 inch CIR65 68mm
3.5 inch CIR70 76mm
4 inch CIR90 99mm
5 inch CIR110 110mm
6 inch CIR150 150mm
8 inch CIR170 170mm
Back Hammer
6 inch BH140 155mm
8 inch BH170 190mm
10 inch BH190 220mm
12 inch BH240 190mm

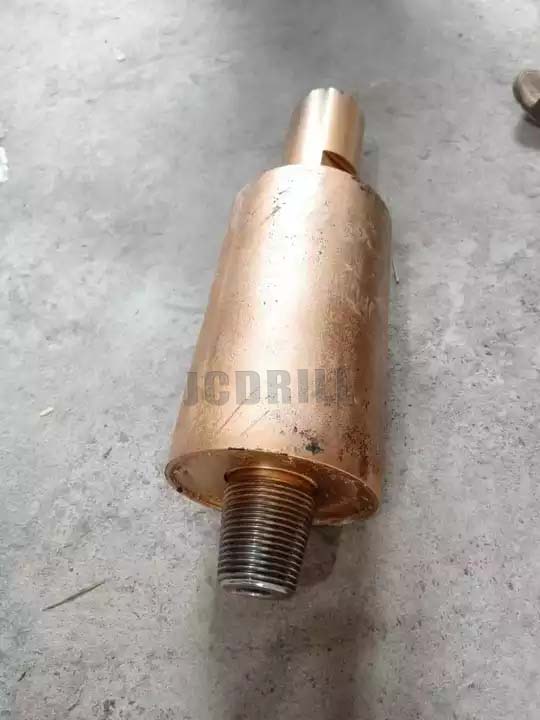

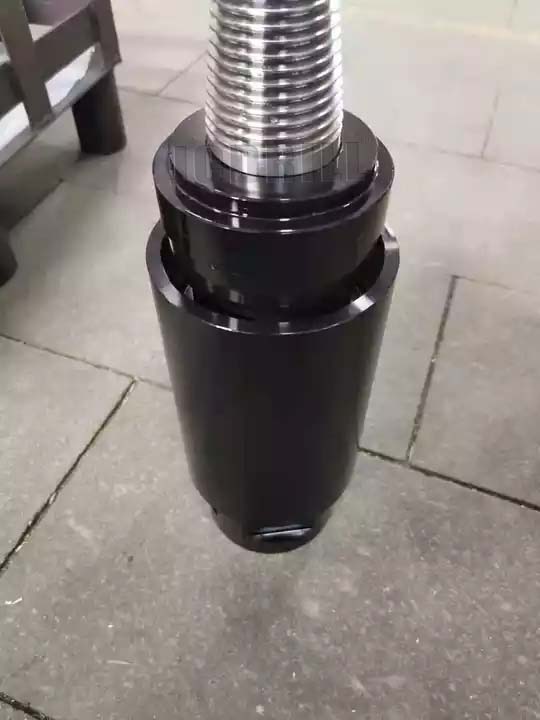

back hammer back hammer

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
