| Type: | Drill Pipe | Machine Type: | Drilling Tool |
| Applicable Industries: | Construction works,Energy & Mining | Material: | Chromium, 555iMnMo |
| Weight (KG): | 5 | Processing Type: | Forging |
| Video Inspection: | Provided | Use: | Energy & Mining |
| Machinery Test Report: | Provided | Product Name: | Pneumatic Drill Rod |
| Marketing Type: | New Product 2020 | Size (mm): | 500-6000 |
| Head Diameter (mm): | 26/28/30/32/34/36/38 | Steel Grade: | Ovako 495 |
| Hex Shank | Hex Shank | Hex Shank | Hex Shank |

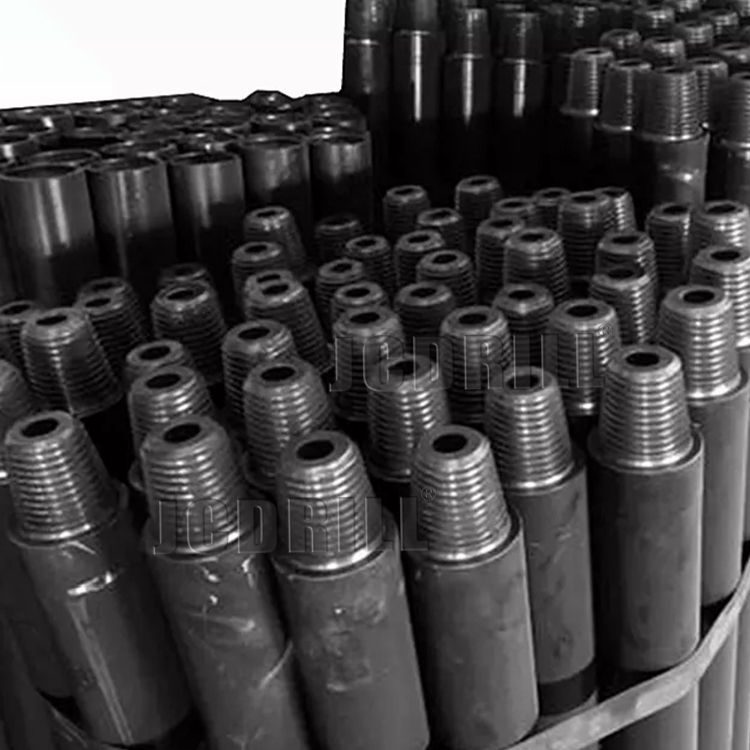

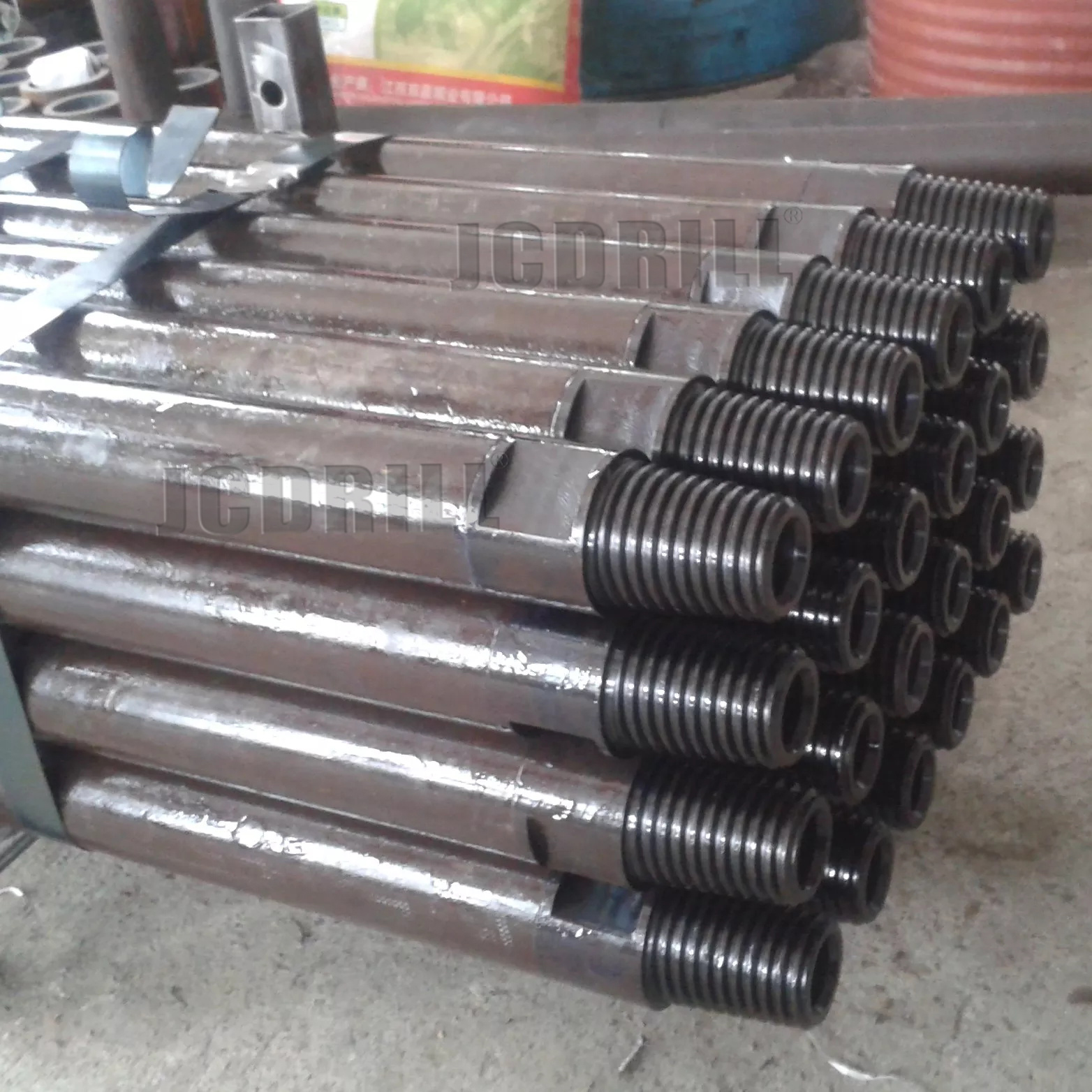

Introduction
The type have exploring water well rods, exploring water spiral drill rods, outburst-prevention drill rods, DTH drill rods, triangle drill rods, anchor-shank drill rods, extension rods, EU drill rods, RC drill rods, KLEMM drill rods, Ingersoll Rand drill rods etc.
Our drill rods produced by CNC machine, and choose high grade steel material thru heat treatment of the steel tube & thread joint to improve the steel material strength and insurance the thread wear life.
| DTH drill pipes | ||||
| Outer diameter | Thread | |||
| Wall thickness | Length | |||
| mm | inch | mm | mm | |
| 76 | 3 | API 2 3/8 REG API 2 7/8 REG API 3 1/2 REG API 4 1/2 REG API 2 3/8 IF API 2 7/8 IF API 3 1/2 IF API 4 1/2 IF BECO 3 1/2" |
4 | 1000-6000 |
| 6.3 | ||||
| 89 | 3 1/2 | 4 | 1000-6000 | |
| 6.3 | ||||
| 8.8 | ||||
| 102 | 4 | 6.3 | 4000-6000 | |
| 8.8 | ||||
| 114 | 4 1/2 | 6.3 | 4000-9000 | |
| 12.5 | ||||
| 127 | 5 | 6.3 | 4000-9000 | |
| 12.5 | ||||
| 19 | ||||
| 133 | 5 1/4 | 6.3 | 4000-9000 | |
| 12.5 | ||||
| 19 | ||||
| 140 | 5 1/2 | 8.8 | 4000-9000 | |
| 12.5 | ||||
| 19 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
