Mining drill bar Diameter 38mm H22 integral drill rod

Mining drill bar Diameter 38mm H22 integral drill rod Featured Image
  • Mining drill bar Diameter 38mm H22 integral drill rod
  • Mining drill bar Diameter 38mm H22 integral drill rod
  • Mining drill bar Diameter 38mm H22 integral drill rod

Short Description:

Applicable Industries:
Energy & Mining
Place of Origin:
Shandong, China

Brand Name:
JCDRILL

Type:
integral drill rod

Machine Type:
Drilling Equipment

Material:
Carbon steel

Processing Type:
Forging

Use:
mining and quarry

Name:
integrall drill rod

shank:
H22*108mm


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    Product Detail

    Type: Drill Pipe Machine Type: Drilling Tool
    Applicable Industries: Construction works,Energy & Mining Material: Chromium, 555iMnMo
    Weight (KG): 5 Processing Type: Forging
    Video Inspection: Provided Use: Energy & Mining
    Machinery Test Report: Provided Product Name: Pneumatic Drill Rod
    Marketing Type: New Product 2020 Size (mm): 500-6000
    Head Diameter (mm): 26/28/30/32/34/36/38 Steel Grade: Ovako 495
    Hex Shank Hex Shank Hex Shank Hex Shank

    Product Features

    Introduction

    Integral Drill Steels are a fixed length with a shank at one end and a bit at the other ,and are able to drill to a depth equivalent to their effective length.The bit may consist of single chisel shaped tungsten carbide insert or three such inserts.
    To drill deep holes,the rods are designed to be used in a series where the length of any rod used in longer than the one used just before it.
    Features
    Integral Steel Rod is used by a hand held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually.
    Application
    Dimensional Stone Quarrying Industry
    Underground Mining
    TunnelingMining drill bar Diameter 38mm H22 integral drill rod



    H22
    Integral Drill Steels Length Bit Dia. Weight  Parts No.
    mm Foot mm (kg)
    Shank 22mm×108mmSHANK H22 Integral Steels



























































    		 800 2'7'' 34 　3 I22-108-0800-34
    1600 5'3'' 33 5.2 I22-108-1600-33
    2400 7'10'' 32 8 I22-108-2400-32
    3200 10'6'' 31 10.2 I22-108-3200-31
    4000 13'1'' 30 12.9 I22-108-4000-30
    4800 15'9'' 29 15.1 I22-108-4800-29
    5600 18'4'' 28 17.6 I22-108-5600-28
    6400 21' 27 20.1 I22-108-6400-27
    7200 23'6'' 26 22.5 I22-108-7200-26
    800 2'7'' 40 3 I22-108-0800-40
    1600 5'3'' 39 5.2 I22-108-1600-39
    2400 7'10'' 38 8 I22-108-2400-38
    3200 10'6'' 37 10.2 I22-108-3200-37
    4000 13'1'' 36 12.9 I22-108-4000-36
    4800 15'9'' 35 15.1 I22-108-4800-35
    5600 18'4'' 34 17.6 I22-108-5600-34
    6400 21' 33 20.1 I22-108-6400-33
    7200 23'6'' 32 22.5 I22-108-7200-32
    8000 26'2'' 31 25 I22-108-8000-31
    400 1'4'' 34 1.7 I22-108-0400-34
    800 2'7'' 33 3 I22-108-0800-33
    1200 3'11'' 32 4.1 I22-108-1200-32
    1600 5'3'' 31 5.2 I22-108-1600-31
    2000 6'7'' 30 6.7 I22-108-2000-30
    600 2' 41 2.4 I22-108-0600-41
    1200 3'11'' 40 4.3 I22-108-1200-40
    1800 5'11'' 39 6.2 I22-108-1800-39
    2400 7'10'' 38 8 I22-108-2400-38
    400 1'4'' 41 1.7 I22-108-0400-41
    800 2'7'' 29 3 I22-108-0800-29
    800 2'7'' 38 3.1 I22-108-0800-38
    1600 3'11'' 39 4.3 I22-108-1600-39
    2400 5'3'' 36 5.2 I22-108-2400-36
    3200 5'11'' 36 6 I22-108-3200-36
    4000 6'7'' 32 6.7 I22-108-4000-32
    4800 7'10'' 27 8 I22-108-4800-27
    5600 10'6'' 27 10.2 I22-108-5600-27
    6400 10'6'' 32 10.3 I22-108-6400-32
    7200 21 20 20.1 I22-108-7200-20
    8000 26'2'' 26 25 I22-108-8000-26

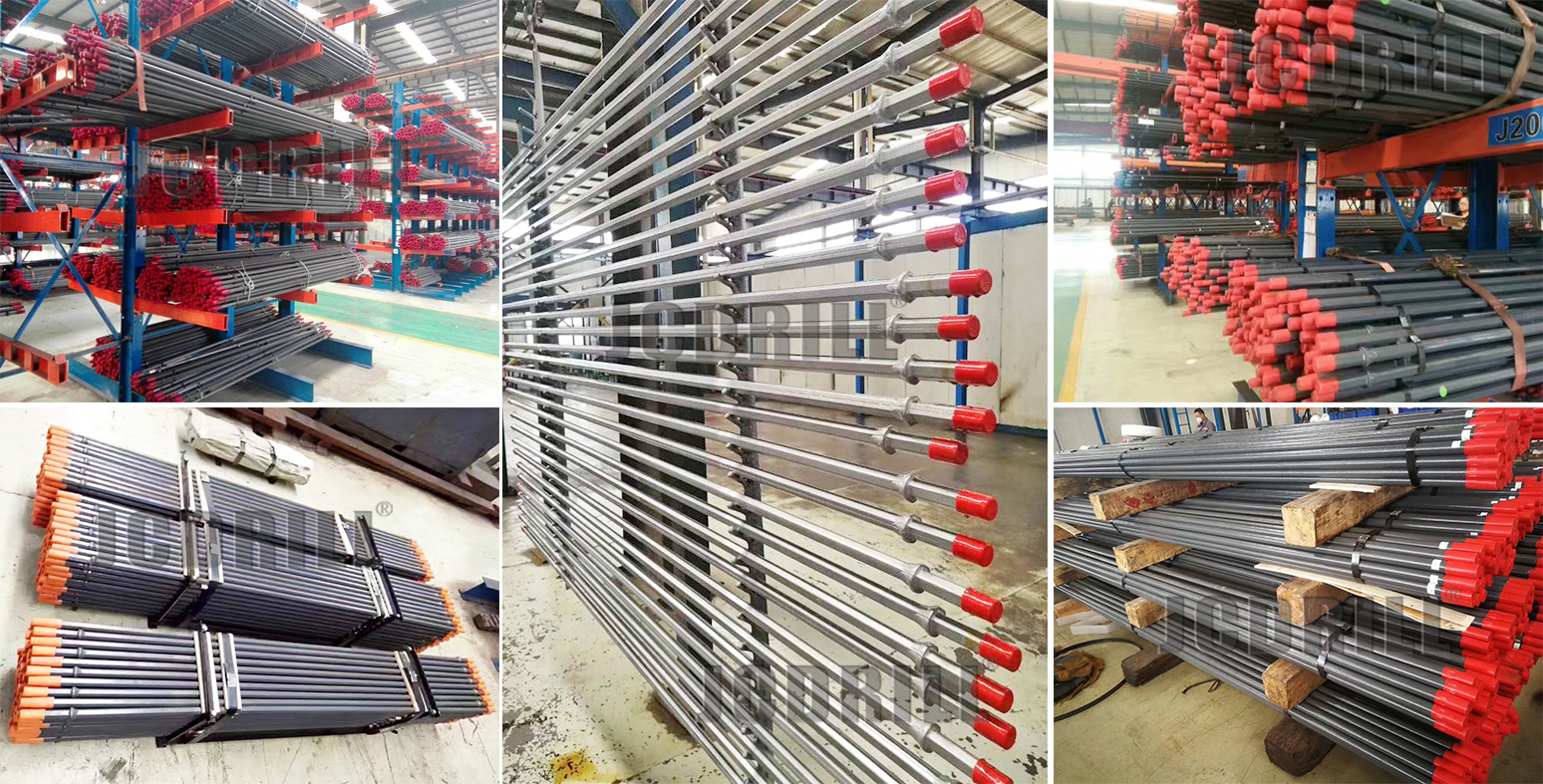

    Integral Drill Steel Rod (10)详情2



    Integral Drill Steel Rod (16)

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
