JD140A High air pressure DTH hammer Drill,DTH Hammer for Rock Drilling

Short Description:

Model Number 3/3.5,4,5,6,8,10,12 inches
Drill Rock hardness F=6-20
Condition New
Type Rotary Drilling Rig
Processing Type Forging
 Place of Origin Beijing, China (Mainland)
Brand Name JCDRILL
Usage Rock drilling
Material Carbide

Product Detail

Product Tags

Product Detail

Model Number 3/3.5,4,5,6,8,10,12 inches Certification ISO CE
Drill Rock hardness F=6-20 Warranty 1 Year
Condition New After-sales Service 7X24hours available
Type Rotary Drilling Rig Color As request
Processing Type Forging Button shape Spherical, Ballistic, Semi-ballistic
 Place of Origin Beijing, China (Mainland) Bit face shape Flat, concave, convex, drop center
Brand Name JCDRILL Other shanks COP,DHD,MISSION, SD
Usage Rock drilling Type DTH Hammer
Material Carbide Machine Type Drilling Tool

Product Features

Introduction

x-default

Advantages:优点

1) Non-Blocking:Our S-series Down the hole hammers are proved to ensure extremely low rate of blocking during it   works.

2) High Efficiency:The well drilling equipment carries with larger power of impact frequency and torque, thus ensuring   faster penetration. Compared with others, the efficiency can be improved 10%.

3) Longer Service Life:All surfaces of the DTH hammer and bits are treated by anti-friction and intensified technology.   When used in deep-hole drilling works, it can reach at 5000 meters or more.

4) Excellent Cleaning Effect: This DTH tool has large air output, which specially designed for water well users and   enables it to flush out cuttings in deep hole drilling works.

5) Our hammer and bits are compatible with DHD, QL and Mission hammer and bits.


All our products, are widely used in open pit mining, tunneling, quarrying, transportation construction, engineering, earth-rock excavation, water wells, pile foundation, and civil engineering project etc.We are one of the companies which have the most complete product lines, the most abundant species and the most widely usedproducts in drilling industry.

DTH Hammer
Type Model Outer Diameter
High pressure DTH Hammer
3 inch JD25A 71mm
3.5 inch JD35A/M30 82mm
4 inch JD45A/QL40A/M40/SD4 99mm
5 inch JD55A/QL50A/M50/SD5 125mm
6 inch JD65A/QL60A/M60/SD6 142mm
8 inch JD85A/QL80A/M80/SD8 180mm
10 inch HD100A/SD10 225mm
12 inch JD125A/SD12 275mm
14 inch JD140A -
Middel Pressure DTH Hammer
2.5 inch BR1 56mm
3 inch BR2 64mm
3.5 inch BR3 82mm
Lower Pressure DTH Hammer
3 inch CIR65 68mm
3.5 inch CIR70 76mm
4 inch CIR90 99mm
5 inch CIR110 110mm
6 inch CIR150 150mm
8 inch CIR170 170mm
Back Hammer
6 inch BH140 155mm
8 inch BH170 190mm
10 inch BH190 220mm
12 inch BH240 190mm
hammer
Type Model Length Weight External Dia.(mm) Hole Range
(mm) (kg) (mm)
3.5 inch DHD3.5 930 25 82 90-110
4 inch DHD340 1030 39 99 110-135
SD4 1084 40.5 99
QL40 1097 41 99
Mission40 1005 40 99
5 inch DHD350 1214 76.5 125 135-155
SD5 1175 72.5 125
QL50 1147 73 125
Mission50 1110 68.5 125
6 inch DHD360 1248 100 142 155-190
SD6 1261 100 142
QL60 1212 95 146
Mission60 1161 90 146
8 inch D85 1492 188 180 195-254
SD8 1463 192 180
QL80 1465 182 180
Mission80 1338 176 180
10 inch SD10 1502 290 226 254-311
NUMA100 1510 288 226
12 inch DHD1120 All can be designed according to your requests!
Numa120
Numa 125
14 inch JD140A

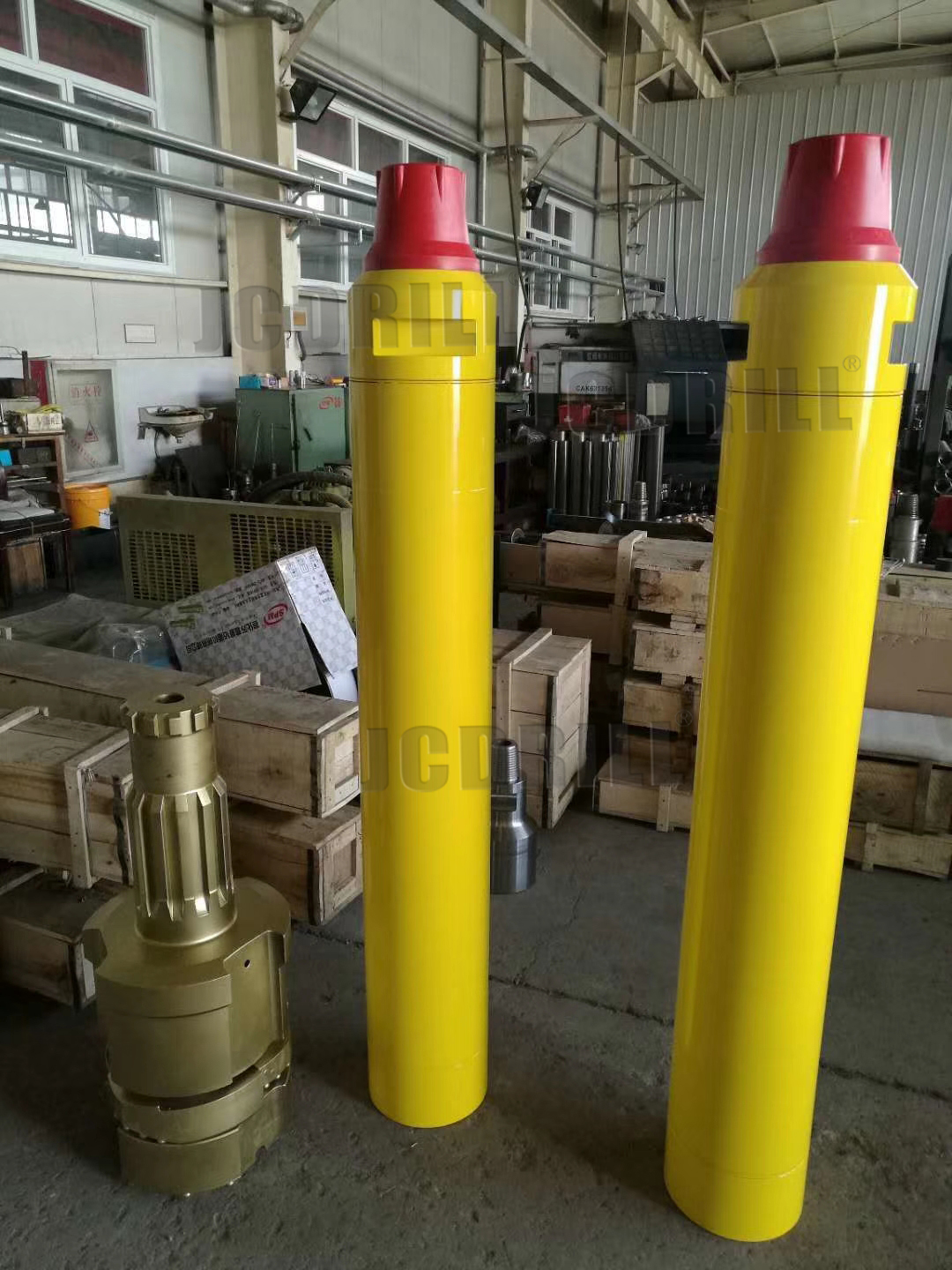

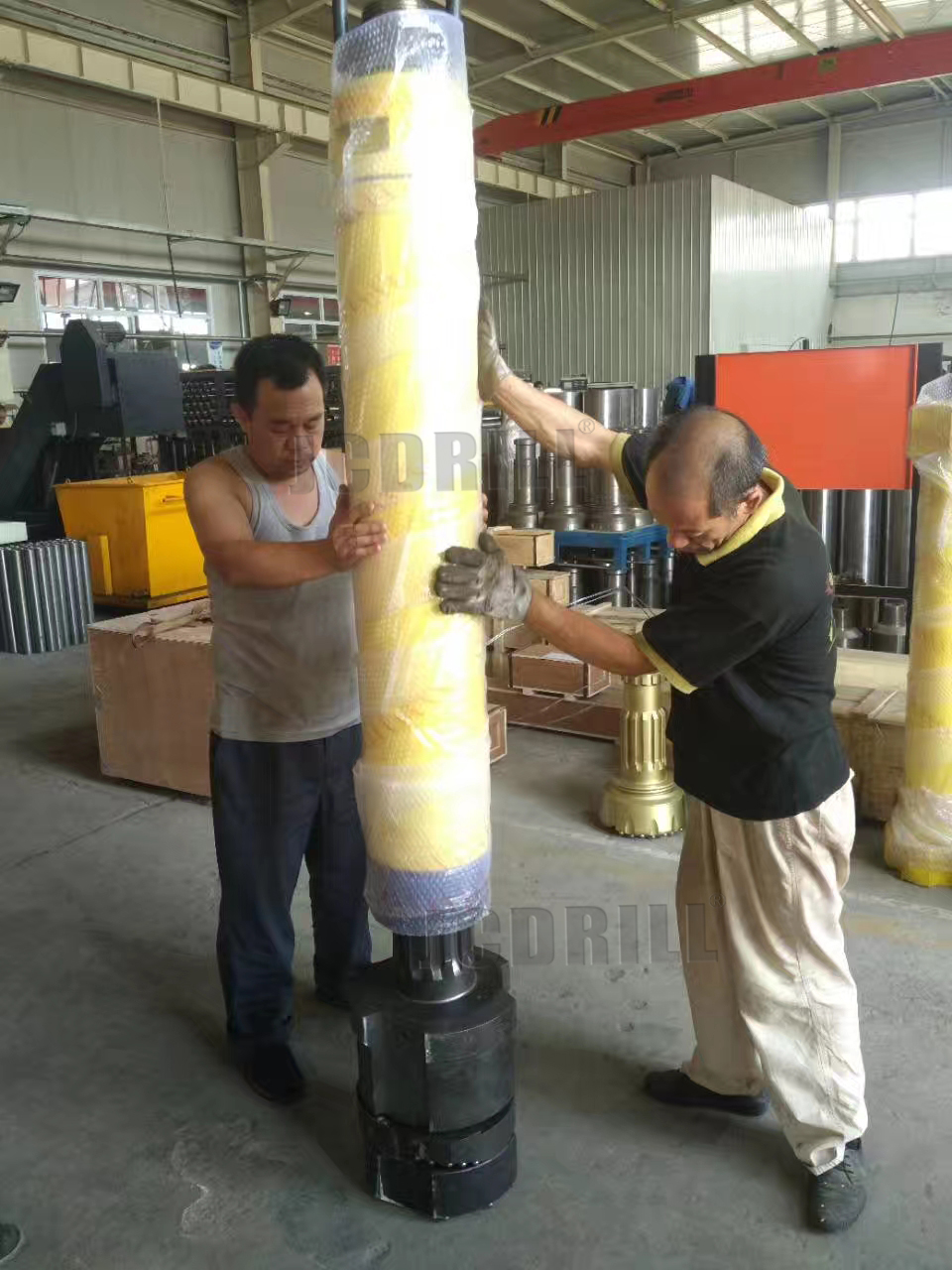

dth hammer dth hammer

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
