Low Air Pressure DTH Hammer Drilling Tools CIR170 DTH Hammer Bits

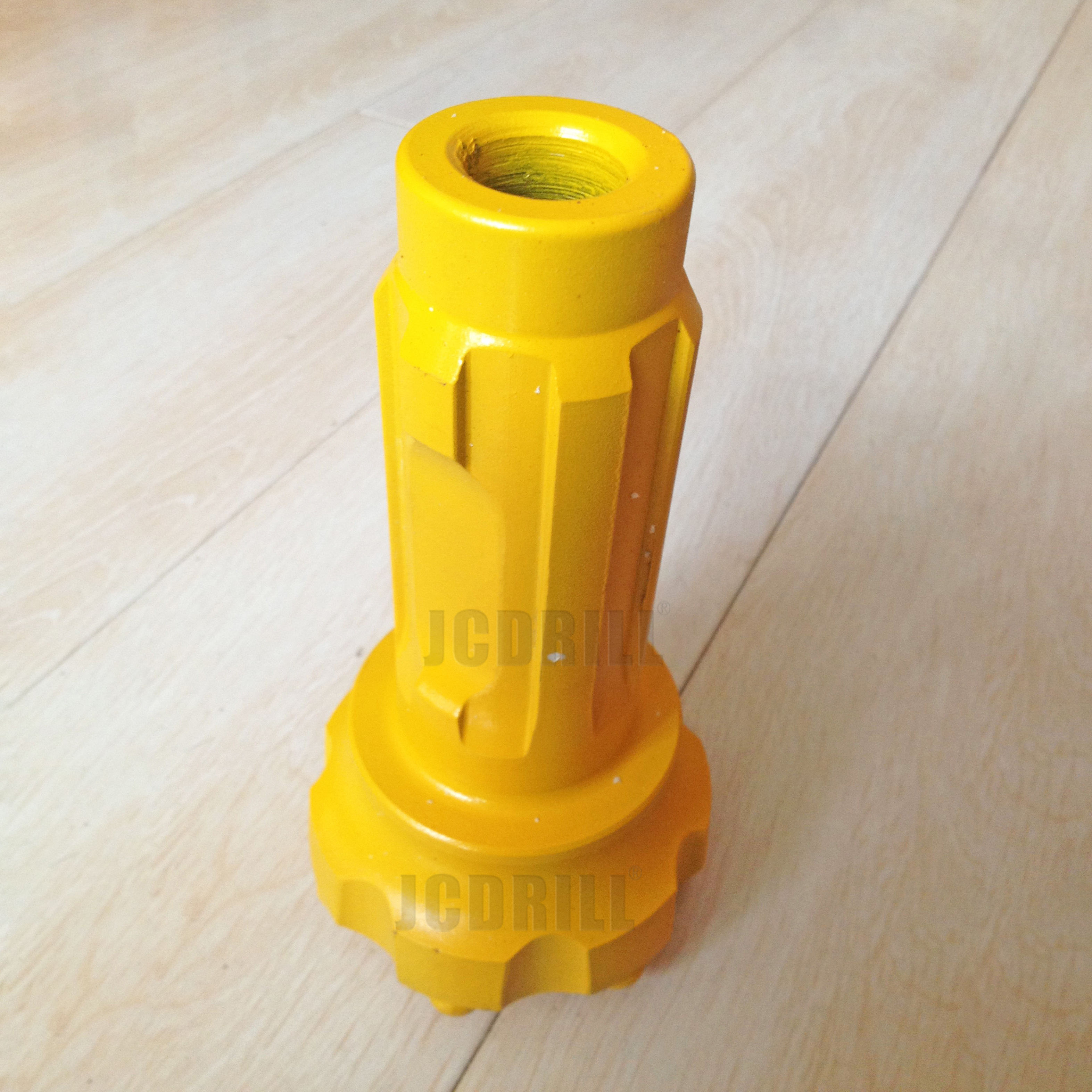

Low Air Pressure DTH Hammer Drilling Tools CIR170 DTH Hammer Bits Featured Image
  • Low Air Pressure DTH Hammer Drilling Tools CIR170 DTH Hammer Bits
  • Low Air Pressure DTH Hammer Drilling Tools CIR170 DTH Hammer Bits
  • Low Air Pressure DTH Hammer Drilling Tools CIR170 DTH Hammer Bits

Short Description:

Place of Origin: China
Brand Name: JCDRILL
Model Number: N/A
Certification: CE,ISO


Product Detail

Product Tags

Product Detail

Model Number 3/3.5,4,5,6,8,10,12 inches Certification ISO CE
Drill Rock hardness F=6-20 Warranty 1 Year
Condition New After-sales Service 7X24hours available
Type Down the hole drill bits Color As request
Processing Type Forging Button shape Spherical, Ballistic, Semi-ballistic
 Place of Origin Hebei, China (Mainland) Bit face shape Flat, concave, convex, drop center
Brand Name JCDRILL Other shanks COP,DHD,MISSION, SD
Usage Rock drilling Type DTH Hammer bits
Material Tungsten Carbide Machine Type Drilling Tool
Advantages high quality and factory prices Bit face shape Flat, concave, convex, drop center
Application Quarry or mining or well drilling Packing Carton and Wooden case

Product Features

low pressure DTH hammer bit advantages

1 Quality 95% quality similarity with world top class brands,such as atlas ingersoll rand etc.

2 Shank Type Our products can be suitable for many types of DTH Hammer, such as QL, Mission, COP, IR, SD,HD,DHD,BR,CIR etc.

3 Materials Our products adopt high-quality raw materials, advanced technology and passed through strictly inspection, making sure the high quality of every dth bits

4 Advantages Our dth bits can transmit intensive impact energy into the rock with the least loss of energy, which can help you improve efficiency and reduce costs

5 Product life We select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear, thus the service life of bits will be increased.

Lower Pressure Button Bits
Model Head,Dia.（mm） Shank Length Apline Q'ty Port Hole Q'ty Drill Bit Face
CIR CIR65 65,68 105 4 2 Flat Face
CIR70 76,85 111 4 2 Flat Face,Convex Face
CIR90 90,110 130 6 2 Concave Face,Convex Face
CIR110 110,130,140 140 6 2 Concave Face,Flat Face
CIR150 155,165,178 170 6 3 Convex Face
CIR170 195,203 170 6 3 Convex Face
Bit Shank Bit Diameter.(mm)
CIR-Series Low Air pressure DTH Bits
CIR65,HR65 65,68,75mm
CIR80,HR80 83,85mm
CIR90,HR90 85,90,110mm
CIR110,HR110 110,115,120,135mm
HR150, 155,160,165,170,180,210,220mm
1''-2''Middle Air pressure DTH Bits
BR1,BR2,HD25 64,70,76,80,82,90mm
3'' High Air pressure DTH Bits
COP32,BR3,HD35,IR3.5,COP34,QL30,M30 85,90,95,100,105mm
4'' High Air pressure DTH Bits
HD45,DHD340A,COP44,SD4,QL40,M40,HM4 105,110,115,120,127,130,133mm
5'' High Air pressure DTH Bits
HD55,DHD350,COP54,SD5,QL50,M50,HM5 130,135,140,146,152,165mm
6'' High Air pressure DTH Bits
HD65,DHD360,COP64,SD6,QL60,M60,HM6 152,155,165,171,190,203mm
8'' High Air pressure DTH Bits
HD85,DHD380,COP84,SD8,QL80,M80,HM8 200,203,216,222,226,229,,241,254,270,305mm
10'' High Air pressure DTH Bits
SD10,NUMA100 254,305,311,318,330mm
12'' High Air pressure DTH Bits
DHD1120,SD12,NUMA120,NUMA125 305,311,330,356,381mm

Lower Pressure button bits Lower Pressure button bits

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
