| Color | black, Yellow | Product name | anchor bolt |
| Finish | Bright(Uncoated) | Usage | Slope stabilization, micro pile, soil nail, rock anchor |
| System of Measurement | Metric | Key words 1 | anchor rod |
| Brand Name | JCDRILL | Key words 2 | self drilling anchor rod |
| Material | Steel | Key words 3 | full threaded steel anchor rod |
| Diameter | R25, R32, R38, R51, T30, T40, T52, T76, T103 | Name 1 | rock bolt |
| Capacity | High Load Capacity | Name 2 | hollow anchor bar |
| Standard | ISO | Name 3 | anchor rods |
Introduction
Application:

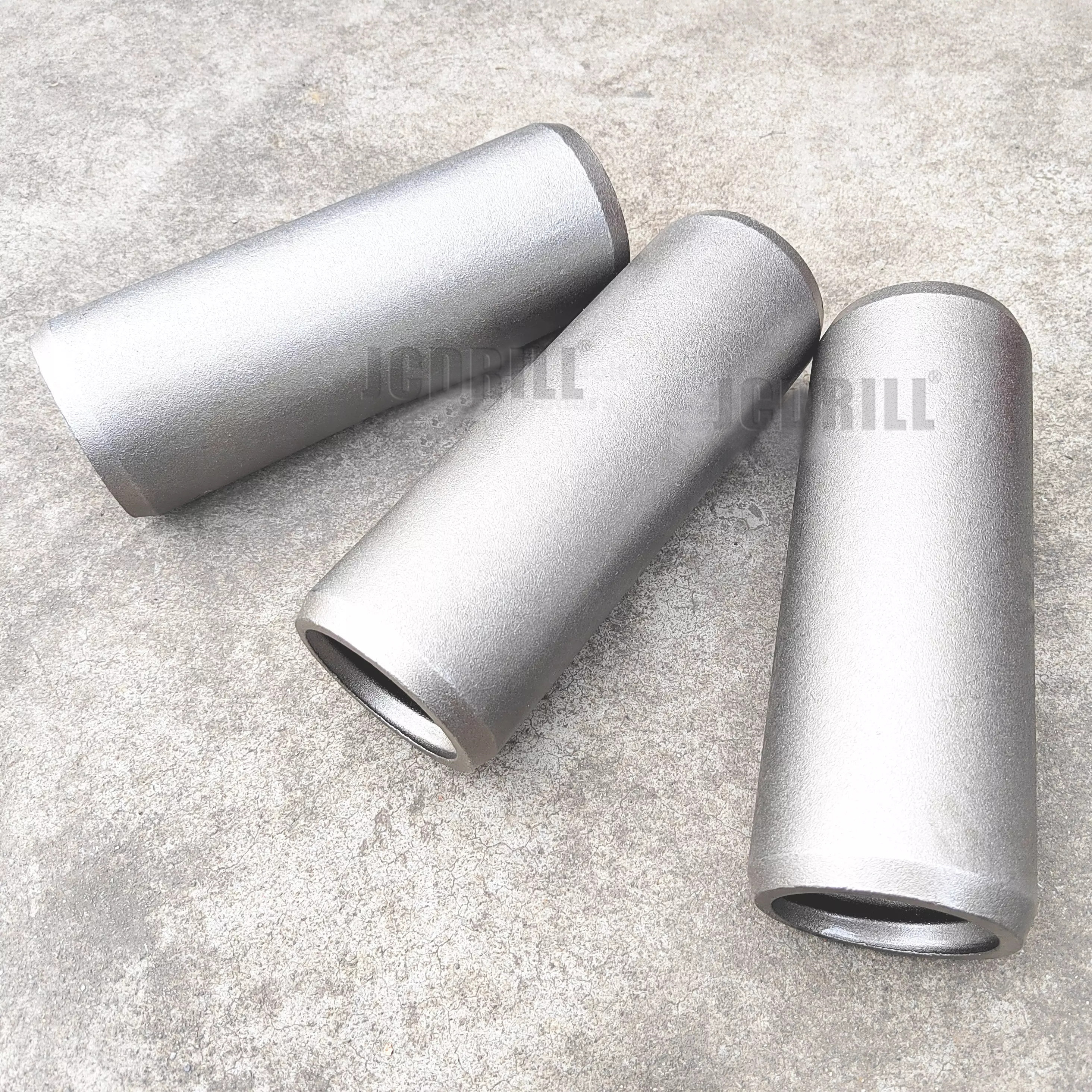

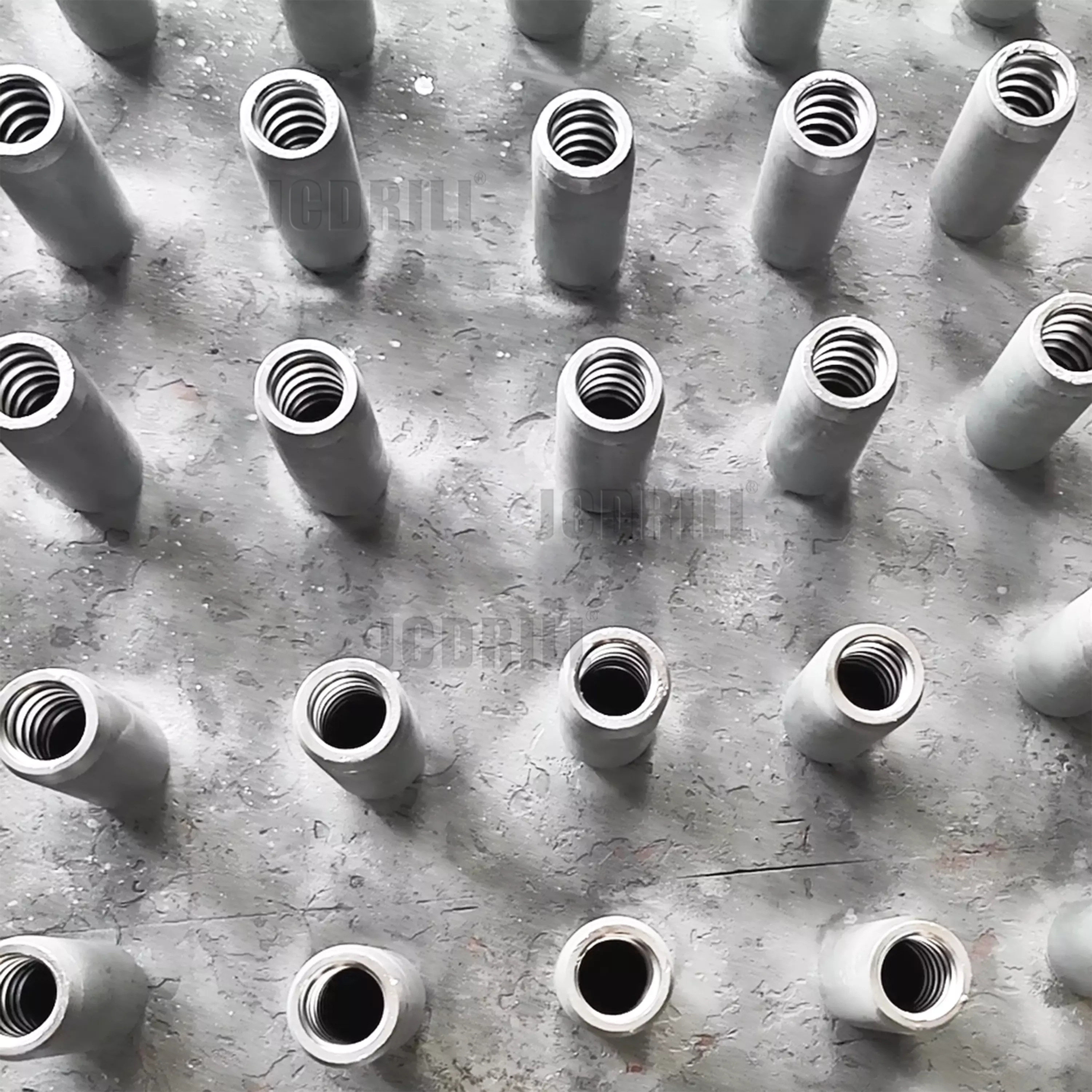

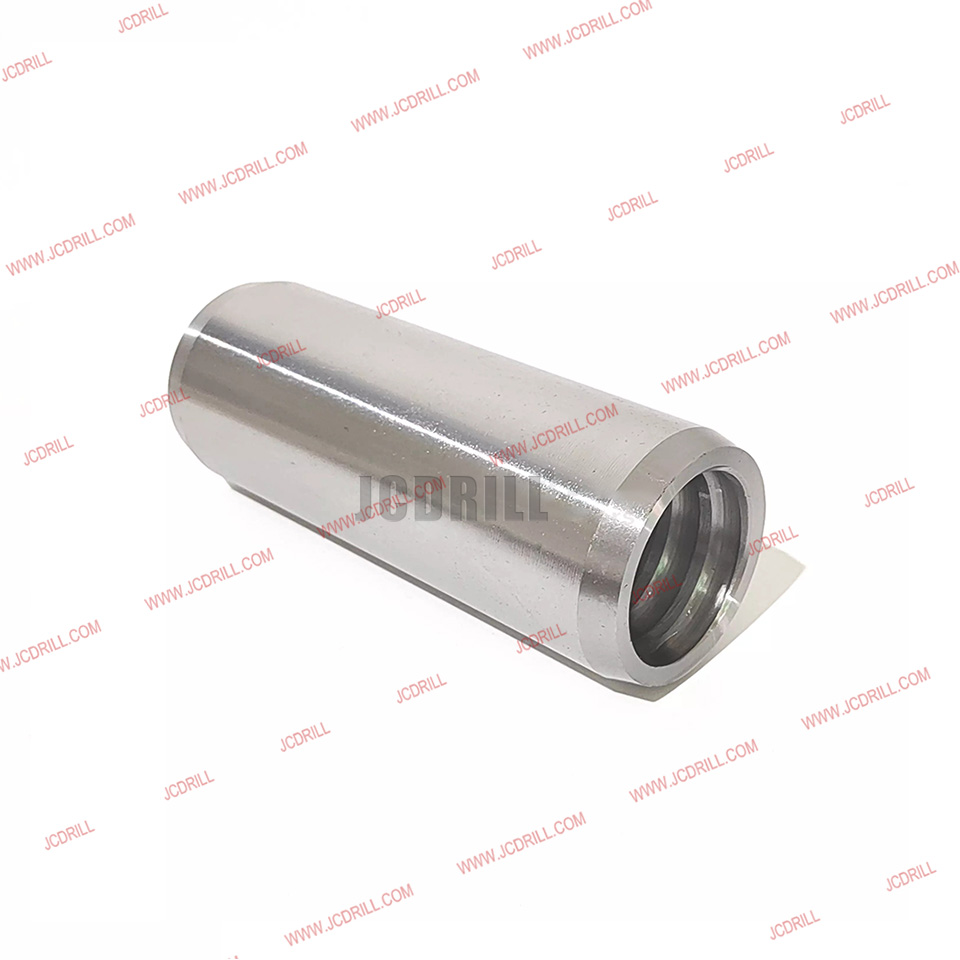

The anchor coupler is used to elongate the anchor bar. It enables direct end-to-end energy transmission between bars to
be installed in special conditions. Therefore it can reduce the loss of anchor bar. Meanwhile, it will be used in kinds of
conditions which needs different length of anchor bar. Anchor coupler also can ensure the maximum percussive energy
on the drill bit. According to the minimum load specifications, Jcdrill anchor couplings can guarantee that its ultimate
breaking load is the same as the SDA dimension.
Characteristic
1.Being adjustable to kinds of anchor bars.
2. Couplers can elongate the anchor bars .
3.Easy connecting anchor bars.
| R-Thread-Coupling | ||||
 |
Size | Outer Dia | Length | Weight |
| mm | mm | Kg | ||
| R25N | 36 | 150 | 0.6 | |
| R32L | 42 | 145 | 0.8 | |
| R32N/1 | 42 | 160 | 0.85 | |
| R32N | ||||
| R32S/1 | 42 | 190 | 1.02 | |
| R32S | ||||
| R38 | 51 | 220 | 1.7 | |
| R51L | 63 | 140 | 1.2 | |
| R51L | 63 | 170 | 1.7 | |
| R5IN | 63 | 200 | 19 | |
| R5IN | 63 | 220 | 2 | |
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
