| Condition | New | Material | Carbon steel |
| Applicable Industries | Construction works , Energy & Mining | Processing Type | Forging |
| Video outgoing-inspection | Provided | Use | Ore Mining |
| Machinery Test Report | Provided | Product name | R25 - Hex25 - R25 drifter drill rod |
| Marketing Type | Hot Product 2022 | Application | tunneling, mining |
| Brand Name | JCDRILL | Usage | top hammer drilling |
| Type | drill rod | Name | tunneling drill rod |
| Machine Type | Drilling Equipment | Word | mining drill rod |

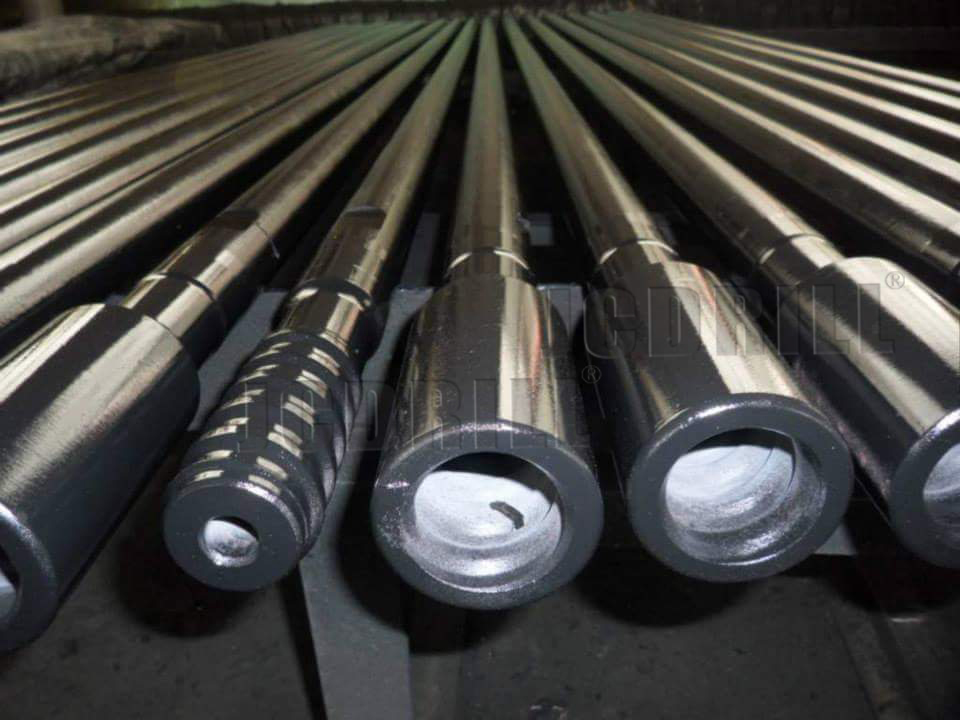

There are two shapes of extension rods, round type and hexagonal type.
Hexagon rods are more rigid, heavier and transfer energy more efficiently, while increasing flushing.
Round rods are generally lighter than hexagonal rods and are normally used in extension drilling applications.
It is well known that the performance of the material could be played well only after going through heat treatment to release its maximum potential, therefore, the choice of material and heat treatment process are important on an equal basis.
(1) Threaded Connection: R22, R25, R32, R38, T38, T45, T51, and so on.
(2) Diameter: OD32, OD38, HEX32, HEX35, And so on.
(3) Length: 600-6400mm.
(4) Package: Wooden cases or wrapped with plastic knitting and then packed into bundles or as per your requests.
| T60 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
spherical Buttons | |||||||
| 92 | 3 5/8 | 4x13,1x13 | 8x13 | 35° | 4 | 5.3 | ||
| 96 | 3 3/4 | 4x13,1x13 | 8x14 | 35° | 4 | 5.6 | ||
| 102 | 4 | 9x11 | 9x13 | 35° | 3 | 6 | ||
| 115 | 4 1/2 | 10x12 | 9x14 | 35° | 3 | 6.8 | ||
| 127 | 5 | 10x13 | 9x14 | 35° | 3 | 7.5 | ||
| 140 | 5 1/5 | 10x14 | 9x16 | 35° | 3 | 9 | ||
| 152 | 6 | 12x14 | 9x16 | 35° | 3 | 10.6 | ||
| Parabolic Buttons | ||||||||
| 92 | 1 5/8 | 4x13,1x13 | 8x13 | 35° | 1 | 5.3 | ||
| 96 | 1 2/3 | 4x13,1x13 | 8x14 | 35° | 1 | 5.6 | ||
| 102 | 1 2/3 | 9x11 | 9x13 | 35° | 2 | 6 | ||
| 115 | 1 2/3 | 10x12 | 9x14 | 35° | 3 | 6.8 | ||
| 127 | 1 3/4 | 10x13 | 9x14 | 35° | 1 | 7.5 | ||
| 140 | 1 3/4 | 10x14 | 9x16 | 35° | 2 | 9 | ||
| 152 | 1 3/4 | 12x14 | 9x16 | 35° | 3 | 10.6 | ||
| Drill Roll | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
3660 | 12' | 60 | 2 3/8 | 73.9 | |||
| 4265 | 14' | 60 | 2 3/8 | 85.5 | ||||
| 6095 | 20' | 60 | 2 3/8 | 116.6 | ||||
| 4265 | 14' | 60 | 2 1/2 | 95 | ||||
 |
3660 | 12' | 60 | 2 3/8 | 73.9 | |||
| 4265 | 14' | 60 | 2 3/8 | 85.5 | ||||
| 6095 | 20' | 60 | 2 3/8 | 116.6 | ||||
 |
1660 | 5'3'' | 87 | 3 1/2 | 39 | |||
| 4265 | 14' | 87 | 3 1/2 | 99 | ||||
| 5335 | 17'6'' | 76 | 3 | 124.9 | ||||
 |
3660 | 12' | 87 | 3 1/2 | 87.8 | |||
| 4265 | 14' | 87 | 3 1/2 | 99 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
