9 Inch Pdc Bit Factory Hot Sale 5 Blades Hard Rock Drill Bit For Oil Well Drilling

9 Inch Pdc Bit Factory Hot Sale 5 Blades Hard Rock Drill Bit For Oil Well Drilling Featured Image
  • 9 Inch Pdc Bit Factory Hot Sale 5 Blades Hard Rock Drill Bit For Oil Well Drilling
  • 9 Inch Pdc Bit Factory Hot Sale 5 Blades Hard Rock Drill Bit For Oil Well Drilling
  • 9 Inch Pdc Bit Factory Hot Sale 5 Blades Hard Rock Drill Bit For Oil Well Drilling

Short Description:

Size of Rock Bit 228.6mm
9 inch
Blade 5
IADC S232
Thread Connection 4 1/2 API
WOB 25~120 KN
RPM 60-350
Formation Suitable for soft to medium hard formation
Net weight 55kg
Gross weight 60kg
Flow Rate L/S 25-38

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    Product Detail

    The IDEAS platform and field experience show that a single dynamically stable bit design can provide exceptional
    performance with a variety of drilling systems, especially in directional drilling.

    The earlier perception was that each type of rotary steerable system (RSS) or steerable motor BHA required its own bit design with highly specialized directional features. Bits with IDEAS platform certification are stable and produce less torque and stick/slip in transitional drilling. The risk of time-consuming and costly trips due to shock and vibration is greatly reduced.
    PDC BITS APPLICATION

    Feature:

    1. PDC cutters for high speed drilling;

    2. All cutters are premium grade for extended bit life and durability;

    3. Cutter layout is force balanced to drill a precise round hole and reduce bit whirl;

    4. Large junk slots and flushing ports;

    5. Advanced geometric design for faster penetration.

    6. Gauge pads have tungsten carbide inserts for maximum wear resistance

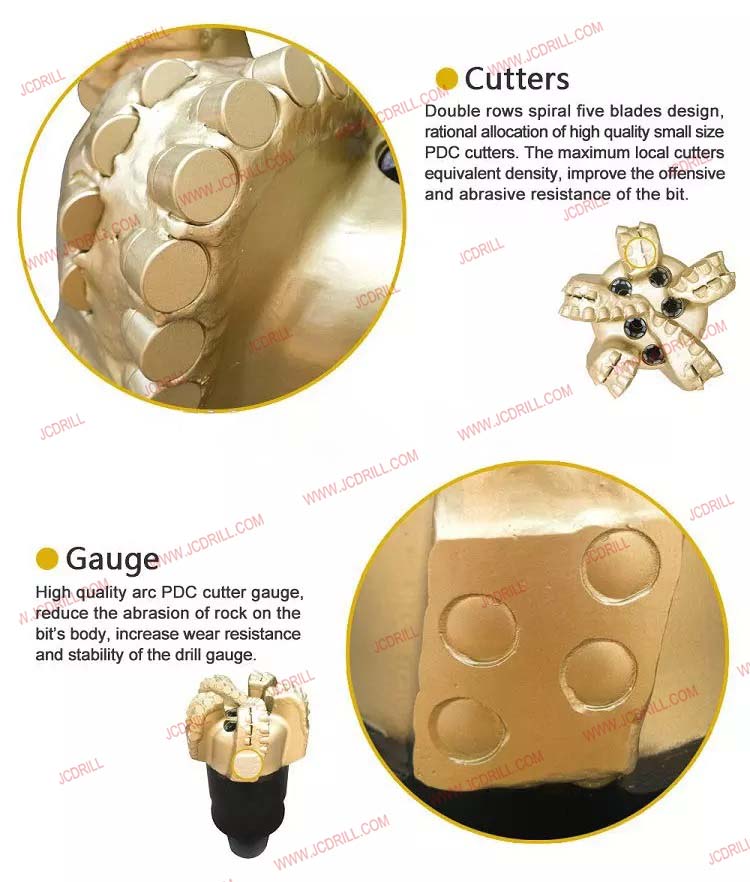

    PDC BITS PRODUCING

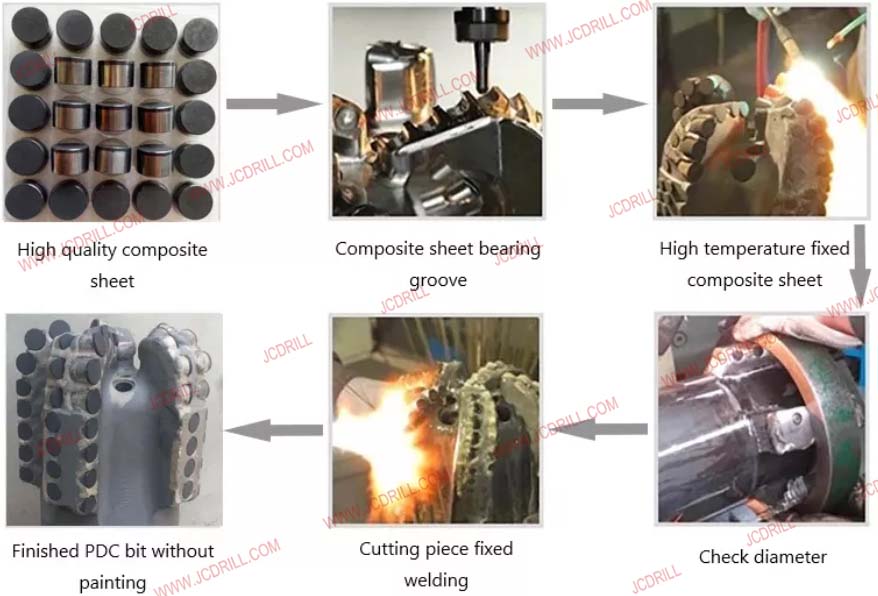

    PDC BITS PRODUCE -2

    Product Advantage:

    1. Impregnated Diamond Bit: Special mental coated diamonds to extend the diamond working life.

    2. Surface Set Diamond Bit: Choose natural diamond with the fast drilling speed, espencially used for soft, abrasive and unconsolidated rock formation.
    3. PDC Bit: Reasonable design of the angle, arrangement and water outlet of each PDC.
    4. Matrix Height: 7mm-25mm, provide better drilling speed and drilling life.
    5. Drill Bit Design: Standard V-ring,Turbo, Face discharge, Flat face, Stepped, Vortex type,Pilot type, etc.
    6. Bit Series:Choose appropriate bit series to matched rock formation better,please see below table.
    PDC Common size: PDC Bits: From 2 7/8” to 36”
    PDC core bits: 36mm, 45mm, 50mm, 56mm, 60mm, 65mm, 75mm, 94mm, 98mm, 112mm, 118mm, 120mm, 132mm,140mm, 149mm, 152mm, 171mm,180mm, 190mm, 203mm, 254mm, 280mm, 300mm , 330mm, etc.
    Impregnated diamond core bits: AQ, BQ, NQ, HQ, PQ
    PDC bolt bit for coal mine: 26mm27mm/28mm/29mm/30mm/32mm/42mm/43mm/55mm etc.
    Blade number: 2 blades, 3 blades, 4 blades, 5 blades, 6 blades, 7 blades, 8 blades
    PDC cutter: 1304, 1305, 1308, 1313, 1613, 1908, 1913, as required
    Strata： Soft, medium soft, hard, medium hard, very hard formations
    Material： Steel, carbide, diamond, PDC tools
    Application： Water Well Drilling/Mining/Geological Drilling/Oil and Gas Extraction
    Package： wooden case or carton
    payment method： T/T,L/C,Western Union ,Paypal
    delivery time： After receiving payment,Regular products within 2 days, customized products within 15-30 days
    delivery conditions： Sea or Air or Ground or Express
    Our factory can produce according to customer requirements and geological conditions, and can also customize the processing of drill bits according to customer's drawings or samples.

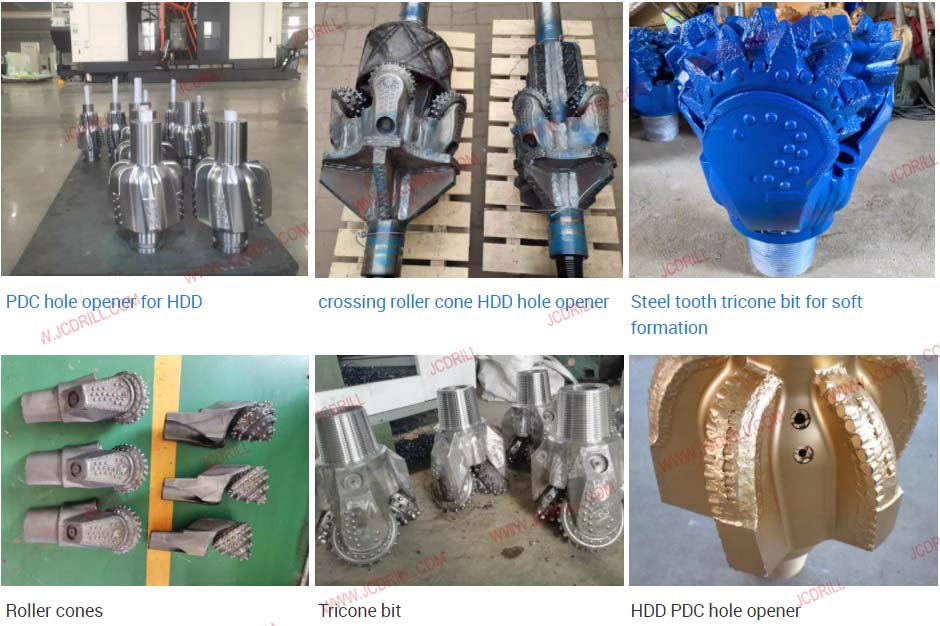

    PDC BITS SIMILAR PRODUCTS

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
