| Condition | New | Material | Carbon steel |
| Applicable Industries | Construction works , Energy & Mining | Processing Type | Forging |
| Video outgoing-inspection | Provided | Use | Ore Mining |
| Machinery Test Report | Provided | Product name | drill rod |
| Marketing Type | Hot Product 2022 | Application | tunneling, mining |
| Brand Name | JCDRILL | Usage | top hammer drilling |
| Type | drill rod | Name | tunneling drill rod |
| Machine Type | Drilling Equipment | Word | mining drill rod |
Introduction
Description

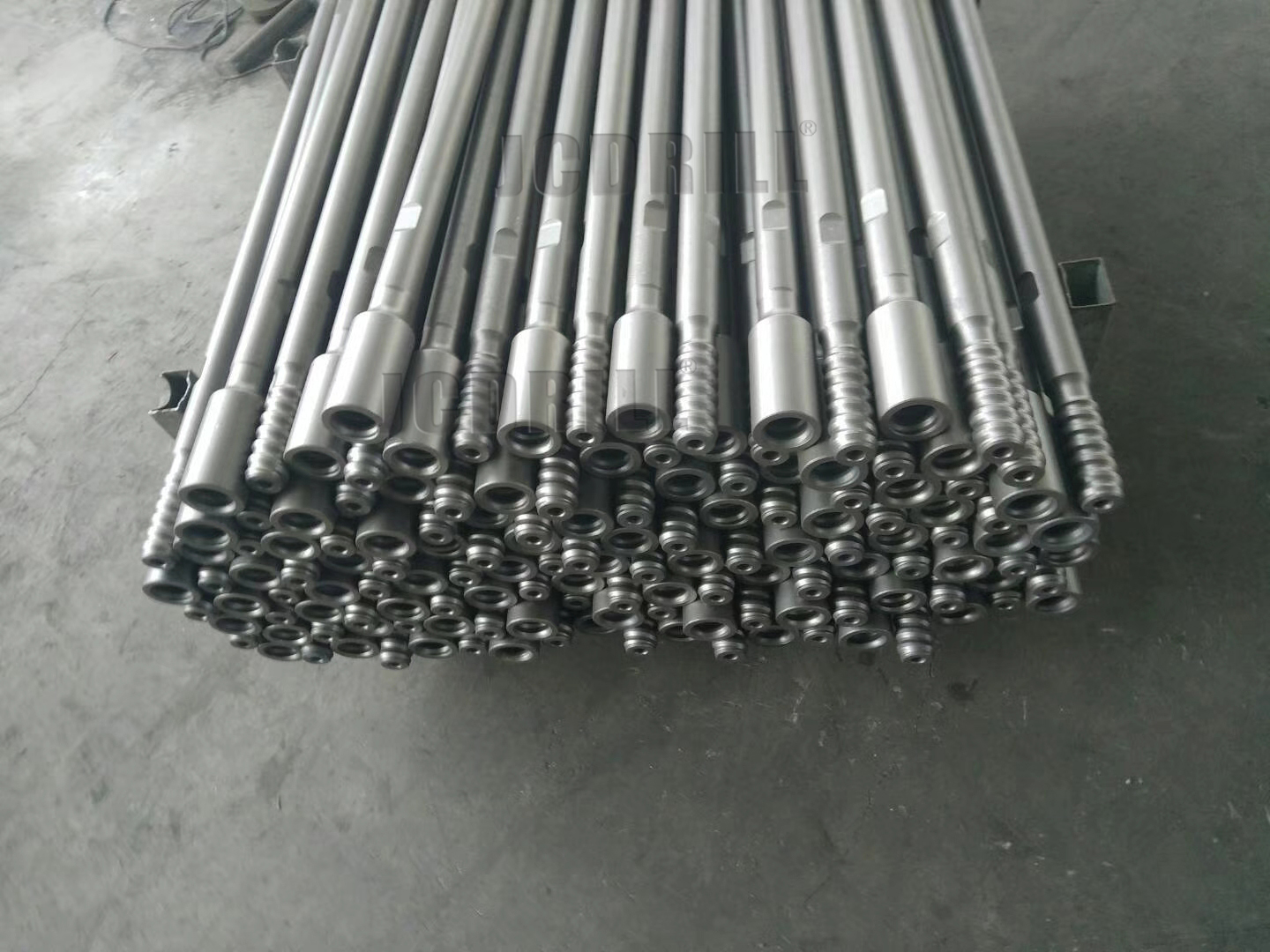

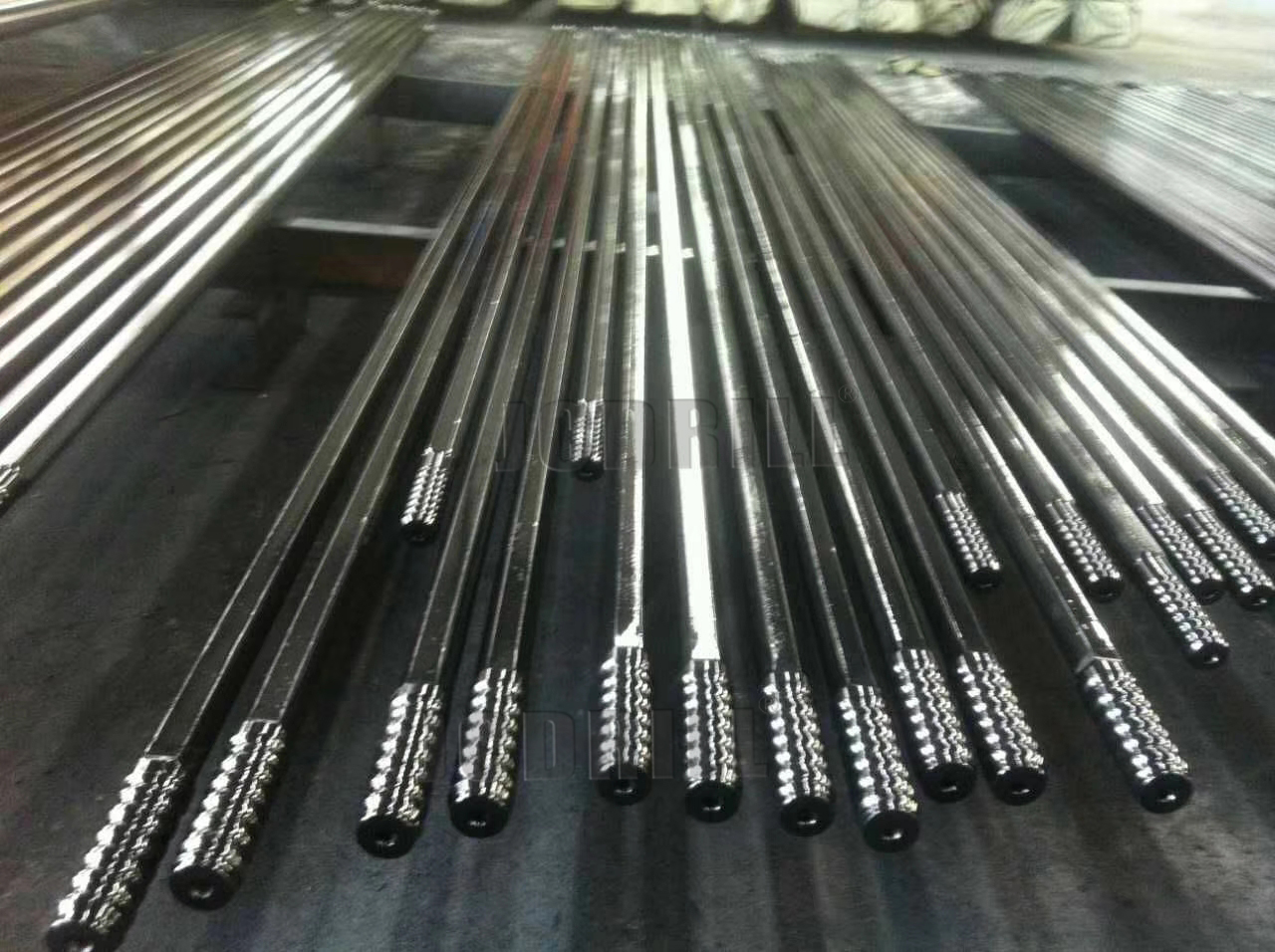

JCDRILL offer all kinds of top hammer drill rods, which are available by integral rods, tapered rods and threaded rods, etc. They are characterized by high quality, high performance, reasonable price and long service life.
For enhancing superior wear resistance and impact toughness, jcdrill adopt high quality alloy steel bar and special heat treatment for our rods, so that it can withstand the toughest rock in drilling and transmit intensive impact energy into the rock with the least loss of energy. They are widely used in all kinds of drilling, such as open-pit mining, underground mining, quarrying, tunneling, benching and engineering construction.
For superior quality and high durability, our top hammer drill rods enjoy the great reputations from different countries, such as Australia, South Africa, Chile, Mexico, Russia, Kazakhstan, Iran, Vietnam and so on.
Product Features
1. High Strength Alloy Steel with strict quality control for steel smelting and rolling.
2. Scientific and standard thread tooth designs and strengthening for Excellent Thread Connection.
3. Special heat treatment by fully carburization, quenching and tempering for Superior Surface Hardness and Strength Index.
4. Good Adaptbility for all kinds of drills and drill rigs and ensure economic operation.
| R28 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
Spherical Buttons | |||||||
| 37 | 1 29/64 | 2x7 | 5x9 | 30° | 1 | 1 | 0.5 | |
| 38 | 1 1/2 | 2x8 | 4x9 | 30° | 1 | 2 | 0.6 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 30° | 1 | 1 | 0.6 | |
| 41 | 1 5/8 | 2x8 | 5x9 | 35° | 1 | 1 | 0.7 | |
| 43 | 1 2/3 | 2x9 | 5x9 | 30° | 1 | 2 | 0.8 | |
| 45 | 1 3/4 | 2x9 | 5x10 | 30° | 1 | 2 | 0.9 | |
| 45 | 1 3/4 | 3x8 | 6x9 | 30° | 1 | 3 | 0.9 | |
| Parabolic Buttons | ||||||||
| 37 | 1 4/9 | 2x7 | 5x9 | 30° | 1 | 1 | 0.5 | |
| 38 | 1 1/2 | 2x8 | 4x9 | 30° | 1 | 2 | 0.6 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 30° | 1 | 1 | 0.6 | |
| 41 | 1 5/8 | 2x8 | 5x9 | 35° | 1 | 1 | 0.7 | |
| 43 | 1 2/3 | 2x9 | 5x9 | 35° | 1 | 2 | 0.8 | |
| 45 | 1 3/4 | 2x9 | 5x10 | 30° | 1 | 2 | 0.9 | |
| 45 | 1 3/4 | 3x8 | 6x9 | 35° | 1 | 3 | 0.9 | |
| 48 | 1 7/8 | 2x9 | 5x11 | 30° | 1 | 2 | 1.0 | |
| 48 | 1 7/8 | 3x8 | 6x9 | 35° | 1 | 3 | 1.0 | |
 |
38 | 1 1/2 | 14x8 | 1 | 2 | 0.6 | ||
| 41 | 1 5/8 | 14x8 | 1 | 4 | 0.7 | |||
| 43 | 1 2/3 | 14x8 | 1 | 4 | 0.7 | |||
| 45 | 1 3/4 | 14x8 | 1 | 4 | 0.9 | |||
| 51 | 2 | 14x8 | 1 | 4 | 1.1 | |||
| Drill Roll | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
2400 | 7'10" | 28 | 1 1/8 | 12.2 | |||
| 2750 | 9' | 28 | 1 1/8 | 14.4 | ||||
| 3700 | 12'11/2" | 28 | 1 1/8 | 18.9 | ||||
| 4000 | 13'1/8" | 28 | 1 1/8 | 20.4 | ||||
| 4310 | 14'11/2" | 28 | 1 1/8 | 22.0 | ||||
| 4920 | 16'11/2" | 28 | 1 1/8 | 25.3 | ||||
| 2900 | 9'61/8" | 32 | 1 1/4 | 18.8 | ||||
| 3090 | 10'11/2" | 32 | 1 1/4 | 20.0 | ||||
| 3700 | 12'11/2" | 32 | 1 1/4 | 24.0 | ||||
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.9 | ||||
| 3090 | 10'11/2" | 32 | 1 1/4 | 20.0 | ||||
| 3700 | 12'11/2" | 32 | 1 1/4 | 23.5 | ||||
| 3090 | 10'11/2" | 32 | 1 1/4 | 20.0 | ||||
| 3700 | 12'11/2" | 32 | 1 1/4 | 24.0 | ||||
| 4000 | 13'13/8" | 32 | 1 1/4 | 25.9 | ||||
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.9 | ||||
| 3050 | 10' | 28 | 1 1/8 | 15.0 | ||||
| 3050 | 10' | 28 | 1 1/8 | 15.0 | ||||
| Coupling | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
150 | 5 7/8 | 44 | 1 3/4 | 1.0 | |||
| 150 | 5 7/8 | 40 | 1 37/64 | 0.9 | ||||
| 170 | 6 3/4 | 55 | 2 5/32 | 2.0 | ||||
| 160 | 6 5/16 | 45 | 1 3/4 | 1.2 | ||||
| 160 | 6 5/16 | 56 | 1 13/64 | 2.5 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
