| Condition | New | Material | Carbon steel |
| Applicable Industries | Construction works , Energy & Mining | Processing Type | Forging |
| Video outgoing-inspection | Provided | Use | Ore Mining |
| Machinery Test Report | Provided | Product name | R25 - Hex25 - R25 drifter drill rod |
| Marketing Type | Hot Product 2022 | Application | tunneling, mining |
| Brand Name | JCDRILL | Usage | top hammer drilling |
| Type | drill rod | Name | tunneling drill rod |
| Machine Type | Drilling Equipment | Word | mining drill rod |
Introduction

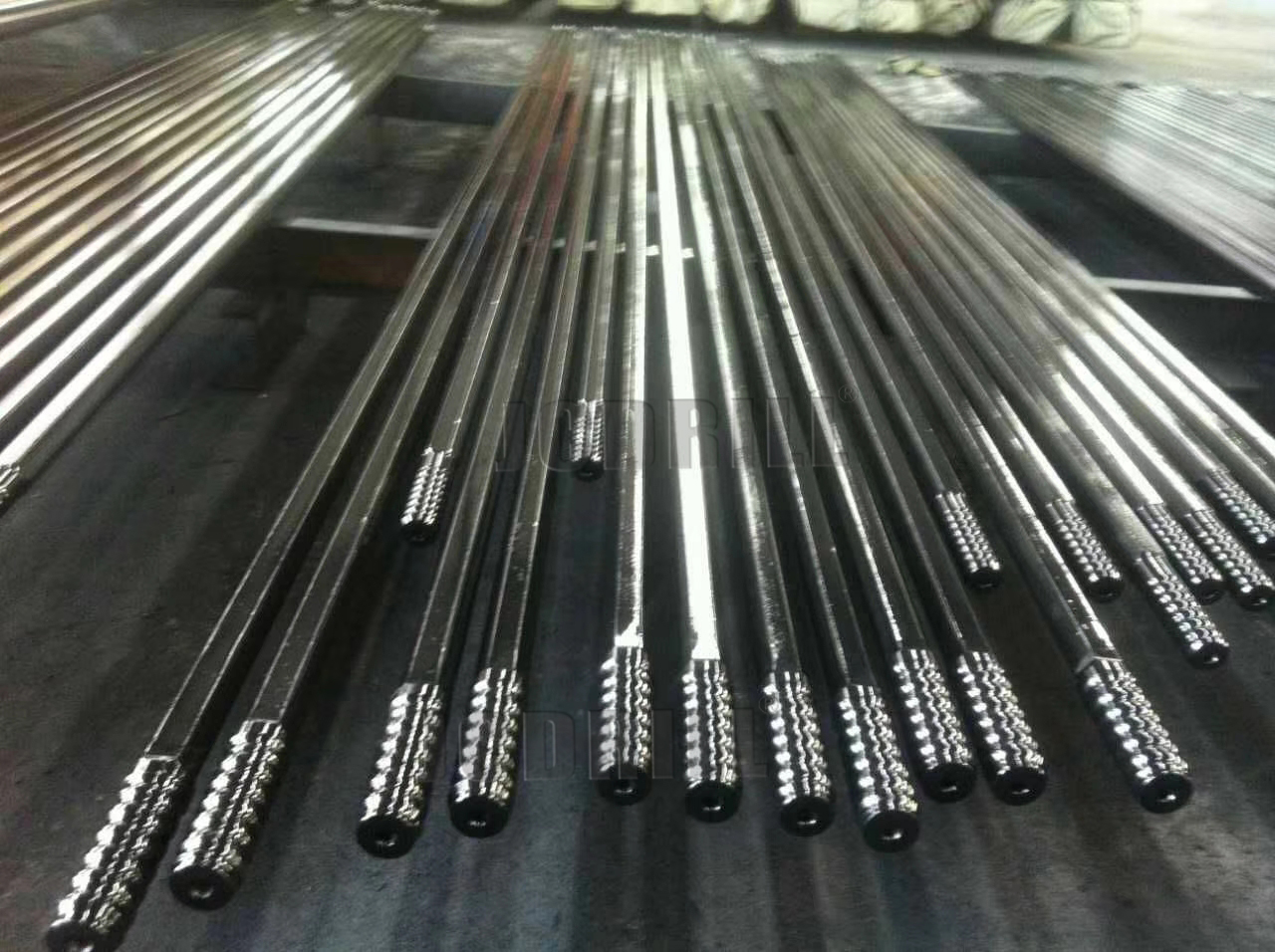

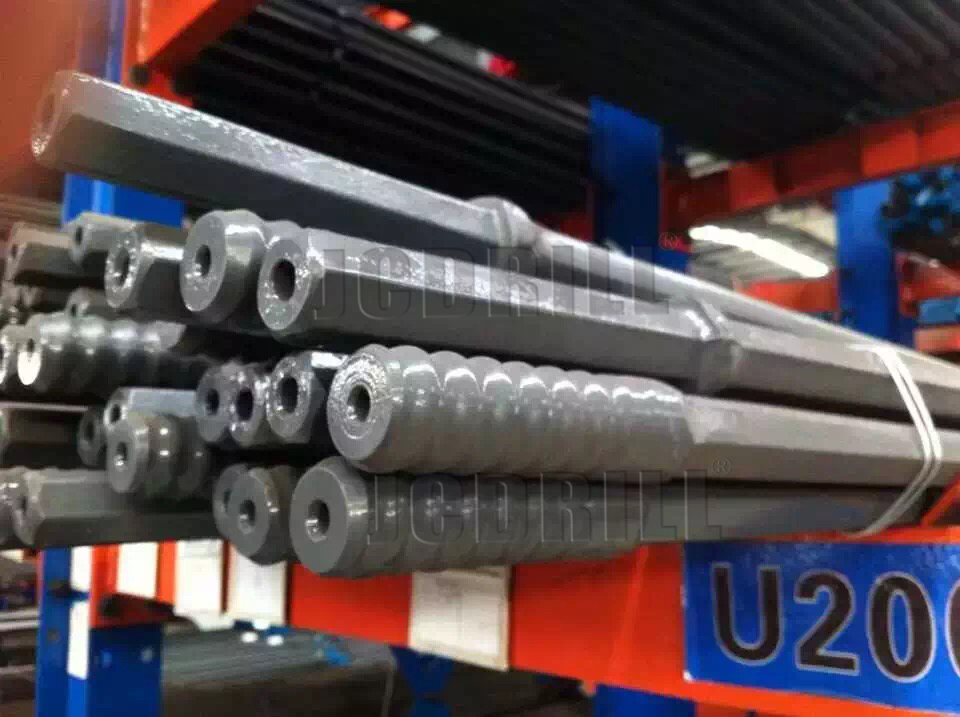

Drill rod using R25 thread system. Suited for short hole drilling operations. For drills capable of receiving Hex 22x108mm and Hex 25x159mm shank. Used in drifting and tunneling.
Widely used in drifting, tunneling, benching, and long hole drilling
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
1. Adequate inventory.
2. The delivery in time.
3. The company is an integrated model(production to sales-service).
4. Experienced, can provide the most suitable solution for different scenarios.
5. Dedicated R & amp; d institutions to ensure continuous updating and improvement of products.
6. Perfect sales network, widely recognized by users.
Our factory can offer many kinds of drill bits, including chisel type bits, cross type bits, tapered drill rods and integral drill rods, mainly used for mining, coal cutting, tunneling, rock cutting in quarrying.
| R25 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
Spherical Buttons | |||||||
| 33 | 1 19/64 | 5X7 | 35° | 1 | 1 | 0.4 | ||
| 35 | 1 3/8 | 5x8 | 35° | 1 | 1 | 0.4 | ||
| 38 | 1 1/2 | 2x7 | 5x8 | 30° | 1 | 1 | 0.5 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 30° | 1 | 1 | 0.5 | |
| 41 | 1 5/8 | 2x9 | 4x9 | 35° | 1 | 2 | 0.6 | |
| 41 | 1 5/8 | 2x8 | 5x9 | 35° | 1 | 1 | 0.6 | |
| 45 | 1 3/4 | 2x9 | 4x11 | 35° | 1 | 2 | 0.6 | |
| 45 | 1 3/4 | 2x8 | 5x11 | 30° | 1 | 2 | 0.6 | |
| Parabolic Buttons | ||||||||
| 33 | 1 19/64 | 2x7 | 5x7 | 35° | 1 | 1 | 0.4 | |
| 35 | 1 3/8 | 2x7 | 5x9 | 25° | 1 | 1 | 0.4 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 40° | 1 | 1 | 0.5 | |
| 41 | 1 5/8 | 2x8 | 5x9 | 35° | 1 | 1 | 0.5 | |
| 45 | 1 3/4 | 2x9 | 5x10 | 35° | 1 | 2 | 0.6 | |
 |
33 | 1 2/7 | 14x8 | 1 | 2 | 0.4 | ||
| 35 | 1 3/8 | 14x8 | 1 | 2 | 0.5 | |||
| 38 | 1 1/2 | 14x8 | 1 | 4 | 0.6 | |||
| 41 | 1 5/8 | 14x8 | 1 | 4 | 0.7 | |||
| 43 | 1 2/3 | 14x8 | 1 | 4 | 0.7 | |||
| 45 | 1 3/4 | 14x8 | 1 | 2 | 0.8 | |||
| 51 | 2 | 14x8 | 1 | 4 | 1.1 | |||
| Drill Roll | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
2100 | 7' | 25 | 1" | 8.6 | |||
| 2400 | 8' | 25 | 1" | 9.6 | ||||
| 2600 | 8'8' | 25 | 1" | 1.4 | ||||
| 2800 | 9' | 25 | 1" | 11.1 | ||||
| 3090 | 10' | 25 | 1" | 12.2 | ||||
| 3700 | 12' | 25 | 1" | 14.6 | ||||
| 915 | 3' | 25 | 1" | 3.4 | ||||
| 1000 | 3'33'/8' | 25 | 1" | 4.0 | ||||
| 1220 | 4' | 25 | 1" | 4.6 | ||||
| 1525 | 5' | 25 | 1" | 5.8 | ||||
| 1830 | 6' | 25 | 1" | 7.0 | ||||
| 2435 | 8' | 25 | 1" | 9.3 | ||||
| 3050 | 10' | 25 | 1" | 12.0 | ||||
| 610 | 2' | 25 | 1" | 2.7 | ||||
| 1220 | 4' | 25 | 1" | 5.1 | ||||
| Shank and Rod | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
Shank 22mm*108mm | |||||||
| 610 | 2' | 22 | 7/8 | 2.6 | ||||
| 760 | 2'6' | 22 | 7/8 | 2.9 | ||||
| 1000 | 3'3' | 22 | 7/8 | 2.7 | ||||
| 1200 | 4' | 22 | 7/8 | 4.4 | ||||
| 1800 | 6' | 22 | 7/8 | 6.3 | ||||
| 2435 | 8' | 22 | 7/8 | 8.1 | ||||
| 3200 | 10'6' | 22 | 7/8 | 10.6 | ||||
| 3600 | 12' | 22 | 7/8 | 12.0 | ||||
| 25mm*159mm | ||||||||
| 2700 | 8'10' | 25 | 1" | 11.3 | ||||
| 3200 | 12' | 25 | 1" | 13.7 | ||||
| Coupling | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
Shank 22mm*108mm | |||||||
| 155 | 6 1/8 | 44 | 1 3/4 | 1.0 | ||||
| 150 | 5 7/8 | 35 | 1 3/8 | 0.7 | ||||
| 160 | 6 5/16 | 38 | 1 1/2 | 1.3 | ||||
| 150 | 5 7/8 | 45 | 1 3/4 | 1.1 | ||||
| 160 | 6 5/16 | 45 | 1 3/4 | 1.2 | ||||
| 160 | 6 5/16 | 56 | 1 13/64 | 2.5 | ||||
| 170 | 6 3/4 | 56 | 1 13/64 | 3.0 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
