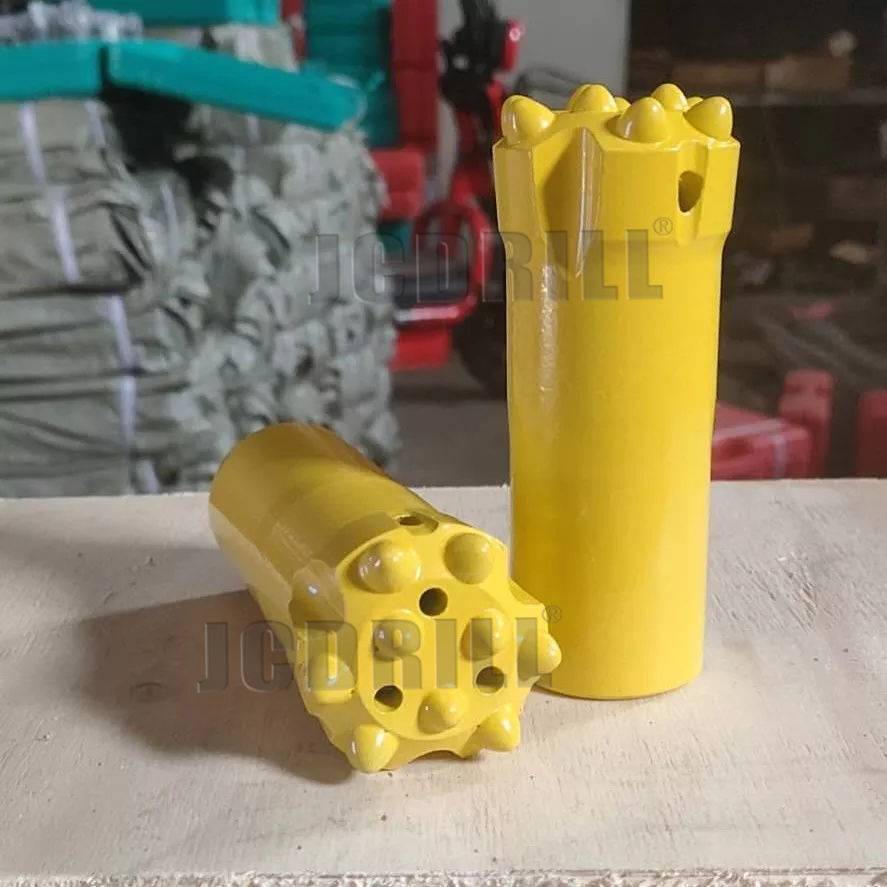

Hard Rock Integral Reamer Drill Bit R32 67mm – 102mm Fast Penetration Rates

Short Description:

Product Name thread button bit
Material special steel and zhuzhou carbide
Color yellow,blue,black or others
Standard ISO9001
Used with thread rod
Used mine/stone quarry drilling

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Product Detail

    Condition: New Processing Type Forging
    Applicable Industries: Energy & Mining, Underground Drilling And Surface Drilling Use Ore Mining, quarry,mining,blasting,construction,open bit etc.
    Video outgoing-inspection Provided Quality 100% quality similarity world top class brands
    Machinery Test Report Provided Advantages high quality and factory prices
    Marketing Type Ordinary Product Boby type Normal type or retrac type
    Brand Name JCDRILL Thread R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68
    Type Thread Button Bit Tungsten carbide Spherical, ballistic,Conical,Hemispherical
    Machine Type Drilling Tool Fact type Drop Center, Flat Face, Convex, Concave, etc
    Material Carbon steel

    Product Features

    Introduction

    Steel Material: 42CrMo/YK05 Button Bit Diameter: 102mm
    Thread: R32 Material: Tungsten Carbide
    Use: Rock Drilling Type: Thread Button Bit
    High Light: carbide button bits,

    threaded drill bit

    1. Application: The thread drill bits are widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.

    2. Material: Thread Drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat

    treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks.

    3. OEM: In addition, we can design customized thread button drill bits according to different drilling application, and
    custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.

    Characteristic
    (1)Bit body : normal type and retrac type (2)R thread: R22 R25 R28 R32 R38 (3)T thread: T38 T45 T51 ST58 ST68 GT60 (4)Bit diameter: 32-127mm. (5)Drill bit models: cross bit/button bit (6)Button bit shape: spherical/parabolic (7)Bit face shape: flat face and drop centre
    R32
    Drifting and Tunneling
    Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
    mm inch Front Gauge Angle Front Side (KG)
     1 spherical Buttons
    41 1 5/8 2x9 4x9 35° 1 1 0.6
    41 1 5/8 2x8 5x9 35° 1 1 0.7
    43 1 2/3 2x9 5x9 35° 1 2 0.7
    43 1 2/3 2x9 5x10 35° 1 1 0.7
    43 1 2/3 2x9 6x9 40° 2 0.7
    45 1 3/4 2x9 5x11 30° 1 1 0.8
    45 1 3/4 2x9 6x10 35° 2 0.8
    45 1 3/4 3x8 6x10 30° 3 0.8
    48 1 7/8 2x9 5x11 35° 1 1 0.9
    48 1 7/8 2x9 6x10 40° 2 0.9
    48 1 7/8 3x8 6x10 40° 3 0.9
    48 1 7/8 2x9 6x10 30° 3 0.9
    51 2 2x10 5x11 35° 1 1 1.0
    51 2 2x10 6x10 40° 2 1.0
    51 2 3x9 6x10 35° 3 1.0
    57 2 1/4 3x9 6x11 35° 3 1.3
    64 2 1/2 3x10,1x10 6x11 35° 3 1.6
    64 2 1/2 4x10 8x10 40° 2 1.6
    76 3 4x11 8x11 40° 2 2.6
     2 Parabolic Buttons
    41 1 5/8 2x8 5x9 40° 1 1 0.7
    43 1 2/3 2x9 5x9 40° 1 2 0.7
    43 1 2/3 2x9 5x10 40° 2 0.7
    43 1 2/3 2x9 6x9 40° 3 1 0.7
    45 1 3/4 2x9 5x11 30° 1 2 0.8
    45 1 3/4 2x9 6x10 40° 2 2 0.8
    45 1 3/4 3x8 6x10 40° 3 1 0.8
    48 1 7/8 2x9 5x11 35° 1 1 0.9
    48 1 7/8 2x9 6x10 40° 2 0.9
    48 1 7/8 3x8 6x10 40° 3 0.9
    51 2 2x10 6x10 40° 2 1
    51 2 3x9 6x10 40° 3 1 1
    54 2 1/8 3x9 6x10 40° 3 1 1
    57 2 1/4 3x9 6x11 35° 3 1.3
    64 2 1/2 4x10 8x10 40° 2 1.6
     cross 41 1 5/8 16x10 1 4 0.7
    43 1 2/3 16x10 1 4 0.8
    45 1 3/4 16x10 1 4 0.9
    48 1 7/8 16x10 1 4 0.9
    51 2 16x10 1 4 1.2
    57 2 1/4 16x10 1 4 1.3
    64 2 1/2 18x13 1 4 1.5
    Drill Roll Length Dimaeter Weight
    mm inch mm inch (KG)
     rod 2400 7'10'' 32 1 1/4 15.3
    3090 10'11/2'' 32 1 1/4 19.8
    3400 11'13/4'' 32 1 1/4 21.7
    4000 13'13/8'' 32 1 1/4 25.5
    4310 14'11/2'' 32 1 1/4 27.5
    4920 16'11/2'' 32 1 1/4 31.3
    5530 18'11/2'' 32 1 1/4 35.2
    3090 10'11/2'' 35 1 3/8 24
    3700 12'11/2'' 35 1 3/8 28.7
    4000 13'13/8'' 35 1 3/8 31.1
    4310 14'11/2'' 35 1 3/8 33.4
    4920 16'11/2'' 35 1 3/8 37.8
    5530 18'11/2'' 35 1 3/8 42.9
    6100 20' 35 1 3/8 47.3
    3700 12'11/2'' 35 1 3/8 29
    4310 14'11/2'' 35 1 3/8 34.1
    4920 16'11/2'' 35 1 3/8 38.8
    5530 18'11/2'' 35 1 3/8 43.6
    6400 21' 35 1 3/8 50.3
    Coupling Length Dimaeter Thread Weight
    mm inch mm inch (KG)
     Coupling 170 6 3/4 55 2  5/32 R38 1.8
    190 7 1/2 55 2  5/32 T38 2
    150 6 1/8 45 1 3/4 R25-R32 1.1
    160 6 1/4 45 1 3/4 R25-R32 1.2
    160 6 1/4 45 1 3/4 R28-R32 1.2
    160 6 1/4 55 2  5/32 R32-R38 1.8
    170 6 3/4 55 2  5/32 R32-R38 2
    180 71/16 55 2  5/32 R32-R38 2.2
    210 8 1/4 55 2  5/32 R32-R38 2.8
    170 6 3/4 56 2 1/8 R32-T38 2.1
    180 71/16 56 2 1/8 R32-T38 2.2
    210 8 1/4 56 2 1/8 R32-T38 2.8
    190 7 1/2 63 2 33/64 R32-T45 3.2
    Bench Drilling
    Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
    mm inch Front Gauge Angle Front Side (KG)
     1 spherical Buttons
    48 1 7/8 2x9 5x11 35° 1 2 1
    48 1 7/8 3x8 6x10 40° 3 0.9
    51 1 2x10 5x11 35° 1 2 1
    51 2 3x9 6x10 35° 3 1
    57 2 1/4 3x9 6x11 35° 3 1.3
    57 2 1/4 3x10 6x11 35° 3 1.3
    64 2 1/2 3x11 6x12 30° 3 1.6
    64 2 1/2 3x10,1x10 6x11 35° 3 1.6
    64 2 1/2 4x10 8x10 40° 2 1.6
    70 3 4x11 8x11 40° 2 2.6
    76 3 4x11,1x11 8x11 35° 2 2.6
     2 Parabolic Buttons
    48 1 7/8 3x8 6x10 40° 3 0.9
    51 2 3x9 6x10 40° 3 1 1
    54 2 1/8 3x9 6x10 40° 3 1 1
    57 2 1/4 3x9 6x11 35° 3 1.3
    57 2 1/4 3x10 6x11 35° 3 1.3
    64 2 1/2 4x10 8x10 40° 2 1.6
     3 45 1 3/4 16x10 1 4 0.9
    48 1 7/8 16x10 1 4 0.9
    51 2 16x10 1 4 1.2
    57 2 1/4 16x10 1 4 1.3
    64 2 1/2 16x10 1 4 1.5
    Drill Roll Length Dimaeter Weight
    mm inch mm inch (KG)
     4 915 3' 32 1 1/4 5.4
    1000 3'33/8'' 32 1 1/4 5.9
    1220 4' 32 1 1/4 7.2
    1830 6' 32 1 1/4 10.8
    2435 8' 32 1 1/4 14.3
    3050 10' 32 1 1/4 17.9
    3660 12' 32 1 1/4 21.5
     5 915 3' 32 1 1/4 6.2
    1000 4' 32 1 1/4 8
    1220 5' 32 1 1/4 9.8
    1830 6' 32 1 1/4 11.6
    2435 8' 32 1 1/4 15.1
    3050 10' 32 1 1/4 18.7
    3660 12' 32 1 1/4 22.3
     6 3050 10' 39 1 1/2 27
    3660 12' 39 1 1/2 32
     7 1220 4' 46 1 3/4 10
    1525 5' 46 1 3/4 12.5
    1830 6' 46 1 3/4 14.2
    3050 10' 46 1 3/4 25
    Coupling Length Dimaeter Weight
    mm inch mm inch (KG)
     8 150 6 1/8 44 1 3/4 1
    160 6 1/4 44 1 3/4 1.1


    详情13 详情15 详情14

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
