| Condition: | New | Processing Type | Forging |
| Applicable Industries: | Energy & Mining, Underground Drilling And Surface Drilling | Use | Ore Mining, quarry,mining,blasting,construction,open bit etc. |
| Video outgoing-inspection | Provided | Quality | 100% quality similarity world top class brands |
| Machinery Test Report | Provided | Advantages | high quality and factory prices |
| Marketing Type | Ordinary Product | Boby type | Normal type or retrac type |
| Brand Name | JCDRILL | Thread | R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68 |
| Type | Thread Button Bit | Tungsten carbide | Spherical, ballistic,Conical,Hemispherical |
| Machine Type | Drilling Tool | Fact type | Drop Center, Flat Face, Convex, Concave, etc |
| Material | Carbon steel |

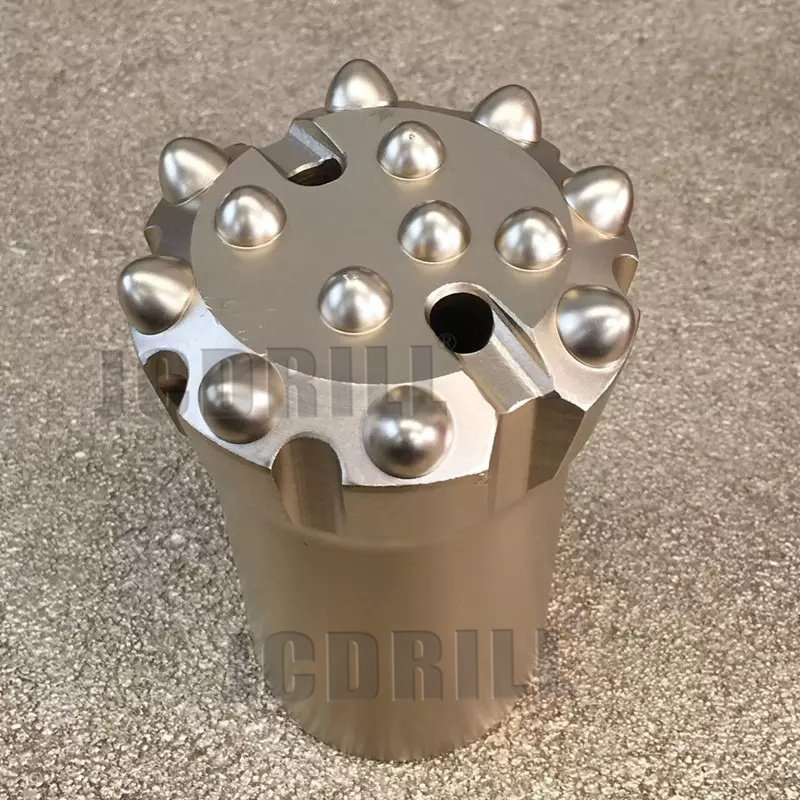

Product Description
Carbide:
The best tungsten carbides from China are commonly applied.
Steel:
first class special alloy steel with high strength, heat resistance and wearable
1.Face: Flat,Convex,Concave,Drop-center.
2.Carbide Button Shape: Spherical,Semi-ballistic,Ballistic and Two-step
3.Bit Shank: COP/DHD/QL/SD/MACH/BR
Our Advantage
1. These threaded button bits can meet different drilling requirements in all rock formations. We can offer special designs according to customer's requirements for specific work situation.
2.The button bits can transmit intensive impact energy into the rock with the least loss of energy.
3.Select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear,thus the service life of bits will be increased.
4.long service life
| T60 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
spherical Buttons | |||||||
| 92 | 3 5/8 | 4x13,1x13 | 8x13 | 35° | 4 | 5.3 | ||
| 96 | 3 3/4 | 4x13,1x13 | 8x14 | 35° | 4 | 5.6 | ||
| 102 | 4 | 9x11 | 9x13 | 35° | 3 | 6 | ||
| 115 | 4 1/2 | 10x12 | 9x14 | 35° | 3 | 6.8 | ||
| 127 | 5 | 10x13 | 9x14 | 35° | 3 | 7.5 | ||
| 140 | 5 1/5 | 10x14 | 9x16 | 35° | 3 | 9 | ||
| 152 | 6 | 12x14 | 9x16 | 35° | 3 | 10.6 | ||
| Parabolic Buttons | ||||||||
| 92 | 1 5/8 | 4x13,1x13 | 8x13 | 35° | 1 | 5.3 | ||
| 96 | 1 2/3 | 4x13,1x13 | 8x14 | 35° | 1 | 5.6 | ||
| 102 | 1 2/3 | 9x11 | 9x13 | 35° | 2 | 6 | ||
| 115 | 1 2/3 | 10x12 | 9x14 | 35° | 3 | 6.8 | ||
| 127 | 1 3/4 | 10x13 | 9x14 | 35° | 1 | 7.5 | ||
| 140 | 1 3/4 | 10x14 | 9x16 | 35° | 2 | 9 | ||
| 152 | 1 3/4 | 12x14 | 9x16 | 35° | 3 | 10.6 | ||
| Drill Roll | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
3660 | 12' | 60 | 2 3/8 | 73.9 | |||
| 4265 | 14' | 60 | 2 3/8 | 85.5 | ||||
| 6095 | 20' | 60 | 2 3/8 | 116.6 | ||||
| 4265 | 14' | 60 | 2 1/2 | 95 | ||||
 |
3660 | 12' | 60 | 2 3/8 | 73.9 | |||
| 4265 | 14' | 60 | 2 3/8 | 85.5 | ||||
| 6095 | 20' | 60 | 2 3/8 | 116.6 | ||||
 |
1660 | 5'3'' | 87 | 3 1/2 | 39 | |||
| 4265 | 14' | 87 | 3 1/2 | 99 | ||||
| 5335 | 17'6'' | 76 | 3 | 124.9 | ||||
 |
3660 | 12' | 87 | 3 1/2 | 87.8 | |||
| 4265 | 14' | 87 | 3 1/2 | 99 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
