JCDRILL Mf Rod/Speed Rod/Male-Female Drill Rods R32 for mining

JCDRILL Mf Rod/Speed Rod/Male-Female Drill Rods R32 for mining Featured Image
  • JCDRILL Mf Rod/Speed Rod/Male-Female Drill Rods R32 for mining
  • JCDRILL Mf Rod/Speed Rod/Male-Female Drill Rods R32 for mining
  • JCDRILL Mf Rod/Speed Rod/Male-Female Drill Rods R32 for mining

Short Description:

Place of Origin: China
Brand Name: JCDRILL
Model Number: N/A
Certification: CE,ISO


Product Detail

Product Tags

Product Detail

Condition: New Processing Type Forging
Applicable Industries: Energy & Mining, Underground Drilling And Surface Drilling Use Ore Mining, quarry,mining,blasting,construction,open bit etc.
Video outgoing-inspection Provided Quality 100% quality similarity world top class brands
Machinery Test Report Provided Advantages high quality and factory prices
Marketing Type Ordinary Product Boby type Normal type or retrac type
Brand Name JCDRILL Thread R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68
Type Thread Button Bit Tungsten carbide Spherical, ballistic,Conical,Hemispherical
Machine Type Drilling Tool Fact type Drop Center, Flat Face, Convex, Concave, etc
Material Carbon steel

Product Features

Introduction


Our Company

JCDRILL provides top hammer equipment for every application, such as underground mining and tunneling, surface mining and quarries, road and construction. Our quality can compare with world's famous brand. Look no further, we have the best top hammer
drilling tools for you
Description

jcdrill offer all kinds of top hammer drill rods, which are available by integral rods, tapered rods and threaded rods, etc. They are characterized by high quality, high performance, reasonable price and long service life.
For enhancing superior wear resistance and impact toughness,JCDRILL adopt high quality alloy steel bar and special heat treatment for our rods, so that it can withstand the toughest rock in drilling and transmit intensive impact energy into the rock with the least loss of energy. They are widely used in all kinds of drilling, such as open-pit mining, underground mining, quarrying, tunneling, benching and engineering construction.
For superior quality and high durability, our top hammer drill rods enjoy the great reputations from different countries, such as Australia, South Africa, Chile, Mexico, Russia, Kazakhstan, Iran, Vietnam and so on.

R32
Drifting and Tunneling
Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
mm inch Front Gauge Angle Front Side （KG）
 1 spherical Buttons
41 1 5/8 2x9 4x9 35° 1 1 0.6
41 1 5/8 2x8 5x9 35° 1 1 0.7
43 1 2/3 2x9 5x9 35° 1 2 0.7
43 1 2/3 2x9 5x10 35° 1 1 0.7
43 1 2/3 2x9 6x9 40° 2 0.7
45 1 3/4 2x9 5x11 30° 1 1 0.8
45 1 3/4 2x9 6x10 35° 2 0.8
45 1 3/4 3x8 6x10 30° 3 0.8
48 1 7/8 2x9 5x11 35° 1 1 0.9
48 1 7/8 2x9 6x10 40° 2 0.9
48 1 7/8 3x8 6x10 40° 3 0.9
48 1 7/8 2x9 6x10 30° 3 0.9
51 2 2x10 5x11 35° 1 1 1.0
51 2 2x10 6x10 40° 2 1.0
51 2 3x9 6x10 35° 3 1.0
57 2 1/4 3x9 6x11 35° 3 1.3
64 2 1/2 3x10,1x10 6x11 35° 3 1.6
64 2 1/2 4x10 8x10 40° 2 1.6
76 3 4x11 8x11 40° 2 2.6
 2 Parabolic Buttons
41 1 5/8 2x8 5x9 40° 1 1 0.7
43 1 2/3 2x9 5x9 40° 1 2 0.7
43 1 2/3 2x9 5x10 40° 2 0.7
43 1 2/3 2x9 6x9 40° 3 1 0.7
45 1 3/4 2x9 5x11 30° 1 2 0.8
45 1 3/4 2x9 6x10 40° 2 2 0.8
45 1 3/4 3x8 6x10 40° 3 1 0.8
48 1 7/8 2x9 5x11 35° 1 1 0.9
48 1 7/8 2x9 6x10 40° 2 0.9
48 1 7/8 3x8 6x10 40° 3 0.9
51 2 2x10 6x10 40° 2 1
51 2 3x9 6x10 40° 3 1 1
54 2 1/8 3x9 6x10 40° 3 1 1
57 2 1/4 3x9 6x11 35° 3 1.3
64 2 1/2 4x10 8x10 40° 2 1.6
 cross 41 1 5/8 16x10 1 4 0.7
43 1 2/3 16x10 1 4 0.8
45 1 3/4 16x10 1 4 0.9
48 1 7/8 16x10 1 4 0.9
51 2 16x10 1 4 1.2
57 2 1/4 16x10 1 4 1.3
64 2 1/2 18x13 1 4 1.5
Drill Roll Length Dimaeter Weight
mm inch mm inch （KG）
 rod 2400 7'10'' 32 1 1/4 15.3
3090 10'11/2'' 32 1 1/4 19.8
3400 11'13/4'' 32 1 1/4 21.7
4000 13'13/8'' 32 1 1/4 25.5
4310 14'11/2'' 32 1 1/4 27.5
4920 16'11/2'' 32 1 1/4 31.3
5530 18'11/2'' 32 1 1/4 35.2
3090 10'11/2'' 35 1 3/8 24
3700 12'11/2'' 35 1 3/8 28.7
4000 13'13/8'' 35 1 3/8 31.1
4310 14'11/2'' 35 1 3/8 33.4
4920 16'11/2'' 35 1 3/8 37.8
5530 18'11/2'' 35 1 3/8 42.9
6100 20' 35 1 3/8 47.3
3700 12'11/2'' 35 1 3/8 29
4310 14'11/2'' 35 1 3/8 34.1
4920 16'11/2'' 35 1 3/8 38.8
5530 18'11/2'' 35 1 3/8 43.6
6400 21' 35 1 3/8 50.3
Coupling Length Dimaeter Thread Weight
mm inch mm inch （KG）
 Coupling 170 6 3/4 55 2  5/32 R38 1.8
190 7 1/2 55 2  5/32 T38 2
150 6 1/8 45 1 3/4 R25-R32 1.1
160 6 1/4 45 1 3/4 R25-R32 1.2
160 6 1/4 45 1 3/4 R28-R32 1.2
160 6 1/4 55 2  5/32 R32-R38 1.8
170 6 3/4 55 2  5/32 R32-R38 2
180 71/16 55 2  5/32 R32-R38 2.2
210 8 1/4 55 2  5/32 R32-R38 2.8
170 6 3/4 56 2 1/8 R32-T38 2.1
180 71/16 56 2 1/8 R32-T38 2.2
210 8 1/4 56 2 1/8 R32-T38 2.8
190 7 1/2 63 2 33/64 R32-T45 3.2
Bench Drilling
Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
mm inch Front Gauge Angle Front Side （KG）
 1 spherical Buttons
48 1 7/8 2x9 5x11 35° 1 2 1
48 1 7/8 3x8 6x10 40° 3 0.9
51 1 2x10 5x11 35° 1 2 1
51 2 3x9 6x10 35° 3 1
57 2 1/4 3x9 6x11 35° 3 1.3
57 2 1/4 3x10 6x11 35° 3 1.3
64 2 1/2 3x11 6x12 30° 3 1.6
64 2 1/2 3x10,1x10 6x11 35° 3 1.6
64 2 1/2 4x10 8x10 40° 2 1.6
70 3 4x11 8x11 40° 2 2.6
76 3 4x11,1x11 8x11 35° 2 2.6
 2 Parabolic Buttons
48 1 7/8 3x8 6x10 40° 3 0.9
51 2 3x9 6x10 40° 3 1 1
54 2 1/8 3x9 6x10 40° 3 1 1
57 2 1/4 3x9 6x11 35° 3 1.3
57 2 1/4 3x10 6x11 35° 3 1.3
64 2 1/2 4x10 8x10 40° 2 1.6
 3 45 1 3/4 16x10 1 4 0.9
48 1 7/8 16x10 1 4 0.9
51 2 16x10 1 4 1.2
57 2 1/4 16x10 1 4 1.3
64 2 1/2 16x10 1 4 1.5
Drill Roll Length Dimaeter Weight
mm inch mm inch （KG）
 4 915 3' 32 1 1/4 5.4
1000 3'33/8'' 32 1 1/4 5.9
1220 4' 32 1 1/4 7.2
1830 6' 32 1 1/4 10.8
2435 8' 32 1 1/4 14.3
3050 10' 32 1 1/4 17.9
3660 12' 32 1 1/4 21.5
 5 915 3' 32 1 1/4 6.2
1000 4' 32 1 1/4 8
1220 5' 32 1 1/4 9.8
1830 6' 32 1 1/4 11.6
2435 8' 32 1 1/4 15.1
3050 10' 32 1 1/4 18.7
3660 12' 32 1 1/4 22.3
 6 3050 10' 39 1 1/2 27
3660 12' 39 1 1/2 32
 7 1220 4' 46 1 3/4 10
1525 5' 46 1 3/4 12.5
1830 6' 46 1 3/4 14.2
3050 10' 46 1 3/4 25
Coupling Length Dimaeter Weight
mm inch mm inch （KG）
 8 150 6 1/8 44 1 3/4 1
160 6 1/4 44 1 3/4 1.1

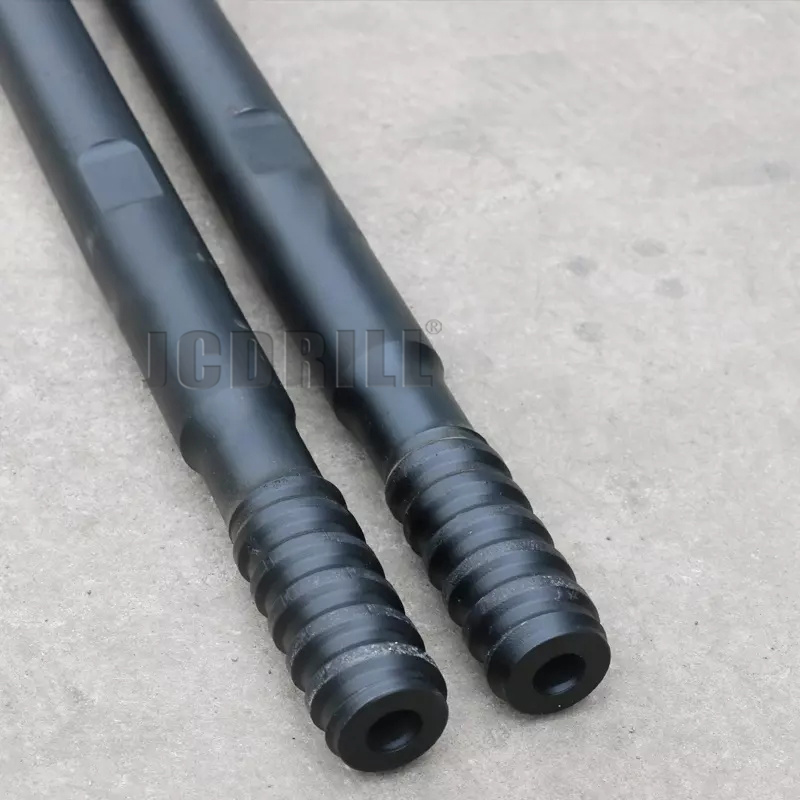

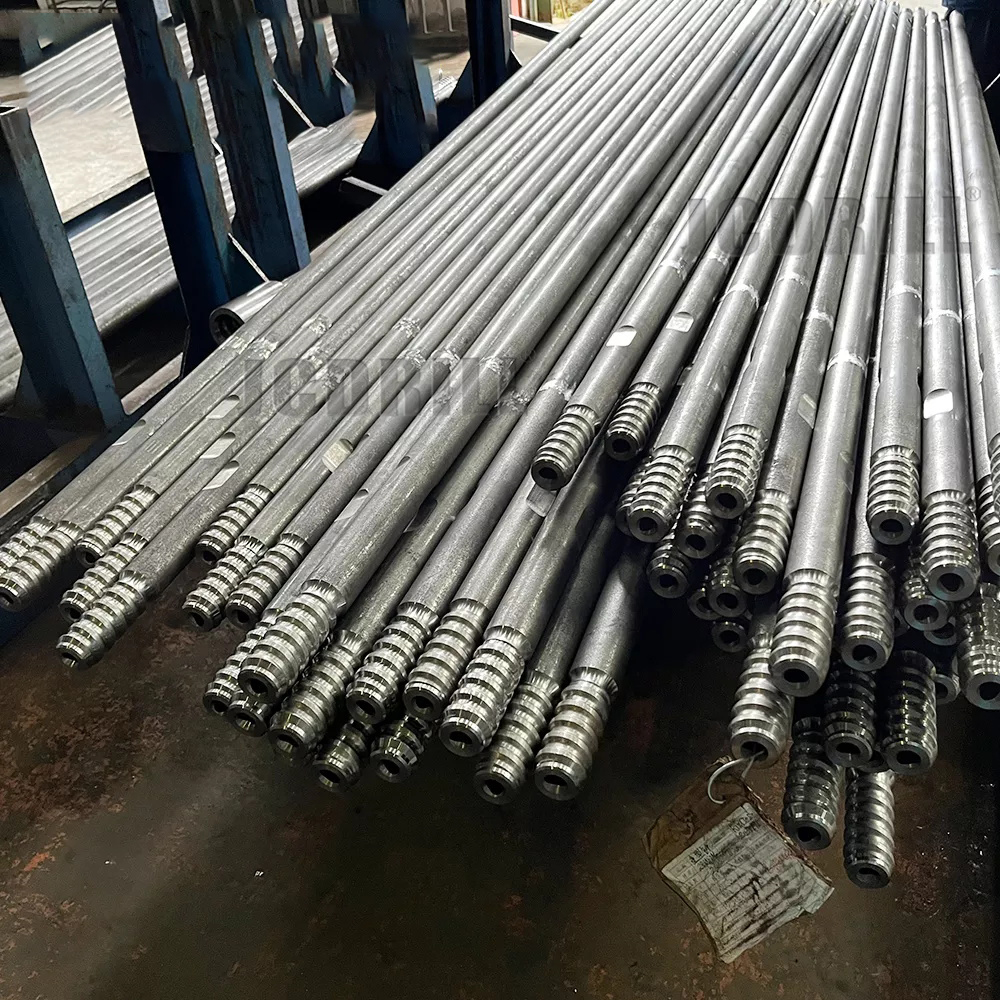

Threaded Drill Rods (11) Threaded Drill Rods (10)

Commercial Terms of Product

Minimum Order Quantity N/A
Price
Packaging Details Standard Export Delivery Package
Delivery Time 7days
Payment Terms T/T
Supply Ability Based on Detailed Order
