Retrac Button Drill Bit Top Hammer Drilling Tools T60 Grade

Retrac Button Drill Bit Top Hammer Drilling Tools T38 T51 T45 T60 Grade

Description

About us:
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bit top hammer button bits, coupling, cross bits, drill rods.We have

rich experience in this field of DTH hammers and bits for 20 years.Owing to high quality, professional service and competitive price, we have got good reputation from our customers all over the world, such as France,Spain, Italy,South Africa,Australia, Iran, Malaysia, etc.

Product specifications: Button Bit

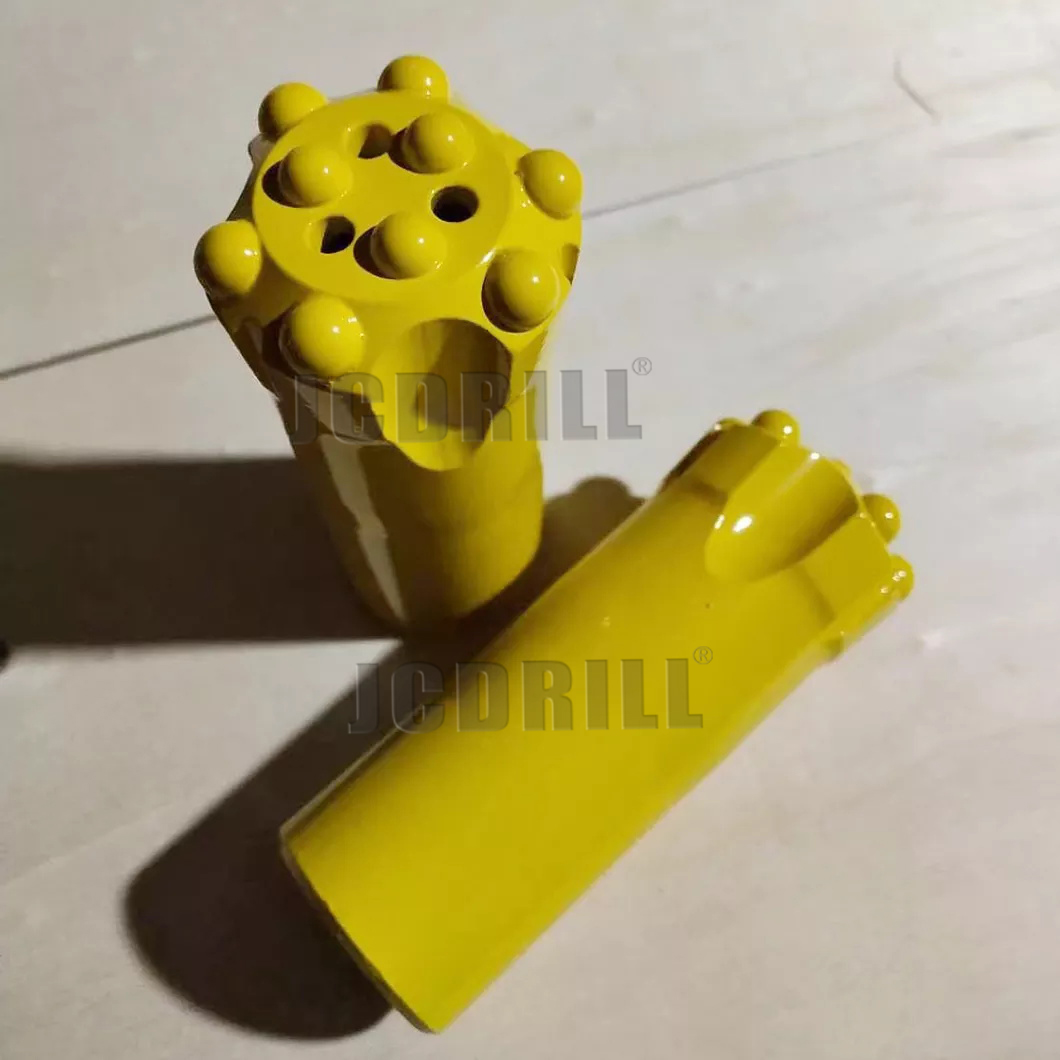

Thread Button Bits
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
(1) Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, T58, T60
(2) Diameter: 38-127mm.

Body type: Normal body or retrac body
Product description:
(1) Made from high alloy steel and YK05 tungsten carbide as same with world famous brand
(2) Apply "hot (thermal) -insertion" processing procedure to insert the buttons.
(3) Entire CNC processing procedure ensure the quality consistency
(4) Military grade requirements of heat-treatment guarantee durability
(5) Fast penetration rates, and straight and clean hole quality, longer drilling life
Threaded Button Bits also named Top hammer bits for penumatic or hydraulic drill rig.
We offer a wide range of button bits, the follow specification table to see the different sizes. All of the top hammer bits are avaliable with parabolic or hemispherical inserts.
