St58 St68 Retrac Retract Thread Threaded Button Drill Bit

St58 St68 Retrac Retract Thread Threaded Button Drill Bit Featured Image
  • St58 St68 Retrac Retract Thread Threaded Button Drill Bit
  • St58 St68 Retrac Retract Thread Threaded Button Drill Bit
  • St58 St68 Retrac Retract Thread Threaded Button Drill Bit

Short Description:

Product Name thread button bit
Material special steel and zhuzhou carbide
Color yellow,blue,black or others
Standard ISO9001
Used with thread rod
Used mine/stone quarry drilling

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    Product Detail

    Condition: New Processing Type Forging
    Applicable Industries: Energy & Mining, Underground Drilling And Surface Drilling Use Ore Mining, quarry,mining,blasting,construction,open bit etc.
    Video outgoing-inspection Provided Quality 100% quality similarity world top class brands
    Machinery Test Report Provided Advantages high quality and factory prices
    Marketing Type Ordinary Product Boby type Normal type or retrac type
    Brand Name JCDRILL Thread R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68
    Type Thread Button Bit Tungsten carbide Spherical, ballistic,Conical,Hemispherical
    Machine Type Drilling Tool Fact type Drop Center, Flat Face, Convex, Concave, etc
    Material Carbon steel

    Product Features

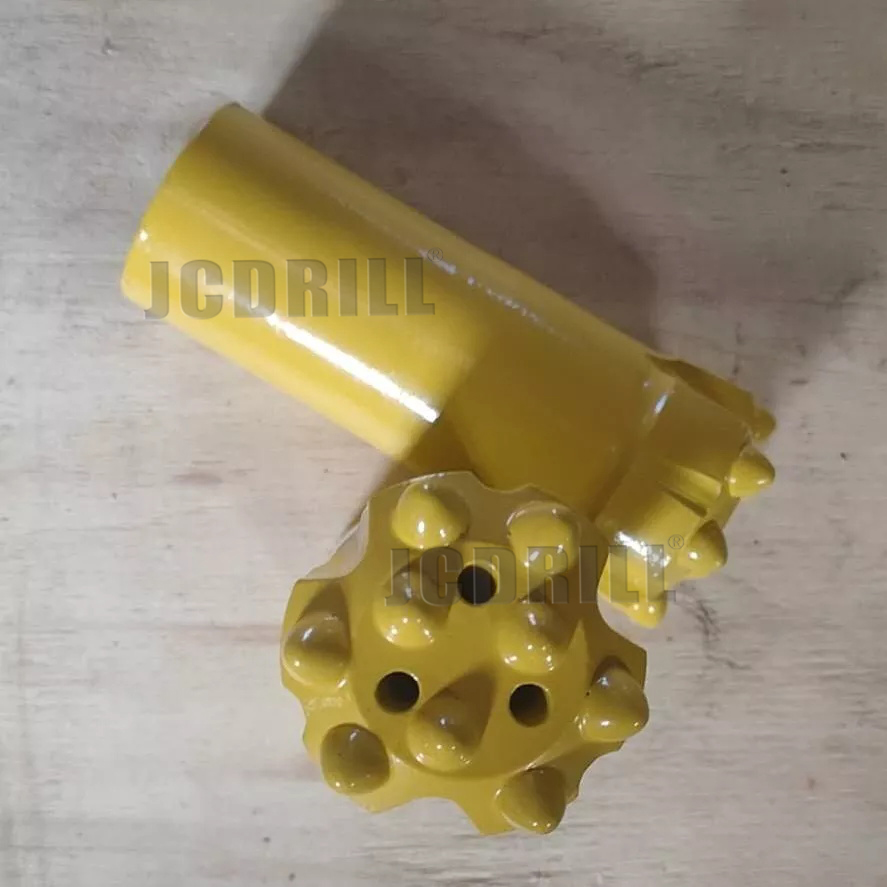

    Thread button bits

    Thread connection: R25, R28, R32, R38, T38, T45, T51, ST58, GT60 and ST68.

    Carbide profile: Spherical, ballistic and parabolic.

    Bit Faces: flat, concave, convex and drop-center, uniface.

    Bits Diameters: 33mm-152mm

    Bit body: standard and retrac

    ST58
    Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
    mm inch Front Gauge Angle Front Side （KG）
     1 spherical Buttons
    89 3 1/2 6x12 8x12 35° 2 1 4.1
    89 3 1/2 6x13 8x13 35° 2 1 4.1
    89 3 1/2 4x13,1x13 8x13 35° 4 4.1
    89 3 1/2 4x12,1x12 8x12 35° 4 4.1
    89 3 3/4 4x13,1x13 8x14 35° 4 4.6
    102 4 6x14 8x14 35° 2 6
    102 4 6x13 8x16 35° 2 1 6
    115 4 1/2 6x14 8x16 35° 2 7
    Parabolic Buttons
    89 3 1/2 6x12 8x12 35° 2 1 4.1
    89 3 1/2 6x13 8x13 35° 2 1 4.1
    89 3 1/2 4x13,1x13 8x13 35° 4 4.1
    89 3 1/2 4x12,1x12 8x12 35° 4 4.1
    89 3 3/4 4x13,1x13 8x14 35° 4 4.6
    102 4 6x14 8x14 35° 2 6
    102 4 6x13 8x16 35° 2 1 6
    115 4 1/2 6x14 8x16 35° 2 7

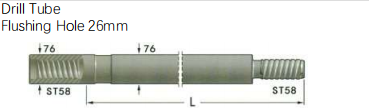

    Drill Roll Length Dimaeter Weight
    mm inch mm inch （KG）
     2 1525 5' 76 2 3/8 34
    1830 6' 76 2 3/8 40
    3660 12' 76 2 3/8 76.3


    详情1 详情12 详情22

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
