| Condition: | New | Processing Type | Forging |
| Applicable Industries: | Energy & Mining, Underground Drilling And Surface Drilling | Use | Ore Mining, quarry,mining,blasting,construction,open bit etc. |
| Video outgoing-inspection | Provided | Quality | 100% quality similarity world top class brands |
| Machinery Test Report | Provided | Advantages | high quality and factory prices |
| Marketing Type | Ordinary Product | Boby type | Normal type or retrac type |
| Brand Name | JCDRILL | Thread | R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68 |
| Type | Thread Button Bit | Tungsten carbide | Spherical, ballistic,Conical,Hemispherical |
| Machine Type | Drilling Tool | Fact type | Drop Center, Flat Face, Convex, Concave, etc |
| Material | Carbon steel |
Introduction
Description:
Suitable for powerful percussive drills and top hammers with high speed drifter, , such as Atlas Copco 282 rocket boomer, Atlas Copco 352 rocket boomer jumbo, AtlasCopcoD7roc, FurukawaHCR 1200, Tamrock, and Ingesoll Rand ECM660, the products are widely used in bench and production drilling, extensional drilling, our products with comparative advantages of the more prominent cost-effective as the famous brand in the world, our products have been recognized as high-quality brand of rock-drilling tools made in China.

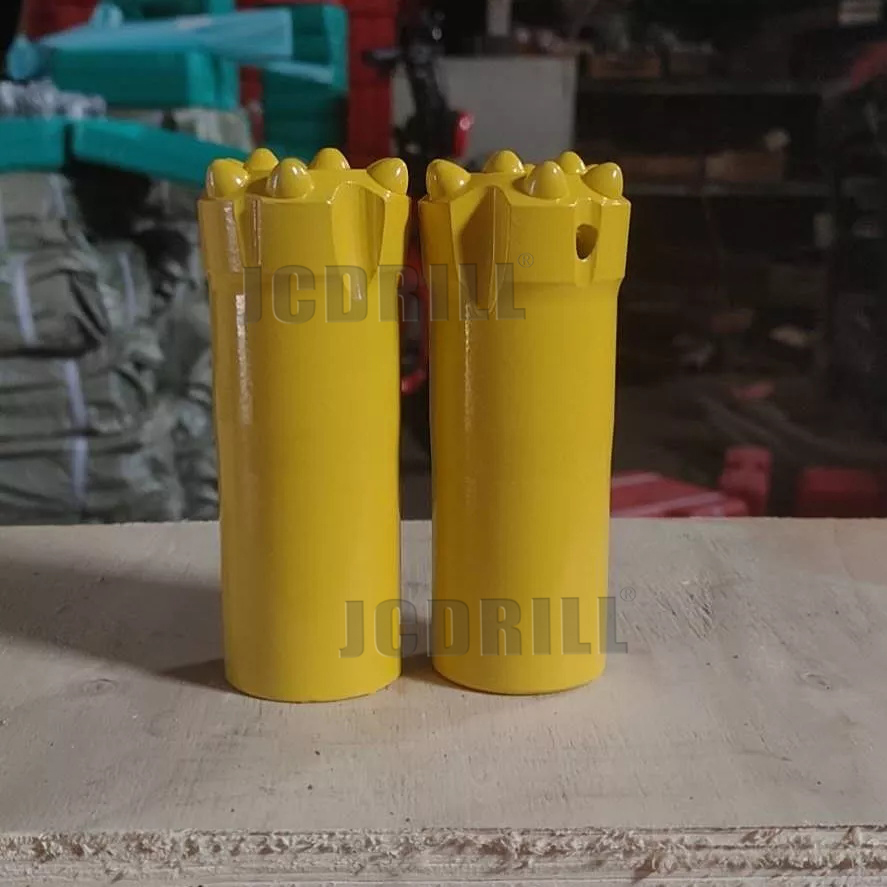

Information of button bits:
• Thread: R25
• Diameter:51mm
• Gauge:6×10mm
• Front:3×10mm
• Skirt Design: Standard
• Weight: 0.93KGS
• Skirt Design: Standard
• water Holes: 3 on front, 3 on side
Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory
| R25 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
Spherical Buttons | |||||||
| 33 | 1 19/64 | 5X7 | 35° | 1 | 1 | 0.4 | ||
| 35 | 1 3/8 | 5x8 | 35° | 1 | 1 | 0.4 | ||
| 38 | 1 1/2 | 2x7 | 5x8 | 30° | 1 | 1 | 0.5 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 30° | 1 | 1 | 0.5 | |
| 41 | 1 5/8 | 2x9 | 4x9 | 35° | 1 | 2 | 0.6 | |
| 41 | 1 5/8 | 2x8 | 5x9 | 35° | 1 | 1 | 0.6 | |
| 45 | 1 3/4 | 2x9 | 4x11 | 35° | 1 | 2 | 0.6 | |
| 45 | 1 3/4 | 2x8 | 5x11 | 30° | 1 | 2 | 0.6 | |
| Parabolic Buttons | ||||||||
| 33 | 1 19/64 | 2x7 | 5x7 | 35° | 1 | 1 | 0.4 | |
| 35 | 1 3/8 | 2x7 | 5x9 | 25° | 1 | 1 | 0.4 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 40° | 1 | 1 | 0.5 | |
| 41 | 1 5/8 | 2x8 | 5x9 | 35° | 1 | 1 | 0.5 | |
| 45 | 1 3/4 | 2x9 | 5x10 | 35° | 1 | 2 | 0.6 | |
 |
33 | 1 2/7 | 14x8 | 1 | 2 | 0.4 | ||
| 35 | 1 3/8 | 14x8 | 1 | 2 | 0.5 | |||
| 38 | 1 1/2 | 14x8 | 1 | 4 | 0.6 | |||
| 41 | 1 5/8 | 14x8 | 1 | 4 | 0.7 | |||
| 43 | 1 2/3 | 14x8 | 1 | 4 | 0.7 | |||
| 45 | 1 3/4 | 14x8 | 1 | 2 | 0.8 | |||
| 51 | 2 | 14x8 | 1 | 4 | 1.1 | |||
| Drill Roll | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
2100 | 7' | 25 | 1" | 8.6 | |||
| 2400 | 8' | 25 | 1" | 9.6 | ||||
| 2600 | 8'8' | 25 | 1" | 1.4 | ||||
| 2800 | 9' | 25 | 1" | 11.1 | ||||
| 3090 | 10' | 25 | 1" | 12.2 | ||||
| 3700 | 12' | 25 | 1" | 14.6 | ||||
| 915 | 3' | 25 | 1" | 3.4 | ||||
| 1000 | 3'33'/8' | 25 | 1" | 4.0 | ||||
| 1220 | 4' | 25 | 1" | 4.6 | ||||
| 1525 | 5' | 25 | 1" | 5.8 | ||||
| 1830 | 6' | 25 | 1" | 7.0 | ||||
| 2435 | 8' | 25 | 1" | 9.3 | ||||
| 3050 | 10' | 25 | 1" | 12.0 | ||||
| 610 | 2' | 25 | 1" | 2.7 | ||||
| 1220 | 4' | 25 | 1" | 5.1 | ||||
| Shank and Rod | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
Shank 22mm*108mm | |||||||
| 610 | 2' | 22 | 7/8 | 2.6 | ||||
| 760 | 2'6' | 22 | 7/8 | 2.9 | ||||
| 1000 | 3'3' | 22 | 7/8 | 2.7 | ||||
| 1200 | 4' | 22 | 7/8 | 4.4 | ||||
| 1800 | 6' | 22 | 7/8 | 6.3 | ||||
| 2435 | 8' | 22 | 7/8 | 8.1 | ||||
| 3200 | 10'6' | 22 | 7/8 | 10.6 | ||||
| 3600 | 12' | 22 | 7/8 | 12.0 | ||||
| 25mm*159mm | ||||||||
| 2700 | 8'10' | 25 | 1" | 11.3 | ||||
| 3200 | 12' | 25 | 1" | 13.7 | ||||
| Coupling | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
Shank 22mm*108mm | |||||||
| 155 | 6 1/8 | 44 | 1 3/4 | 1.0 | ||||
| 150 | 5 7/8 | 35 | 1 3/8 | 0.7 | ||||
| 160 | 6 5/16 | 38 | 1 1/2 | 1.3 | ||||
| 150 | 5 7/8 | 45 | 1 3/4 | 1.1 | ||||
| 160 | 6 5/16 | 45 | 1 3/4 | 1.2 | ||||
| 160 | 6 5/16 | 56 | 1 13/64 | 2.5 | ||||
| 170 | 6 3/4 | 56 | 1 13/64 | 3.0 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
