Professional Drilling Tools manufacturer

25 Years Manufacturing Experience

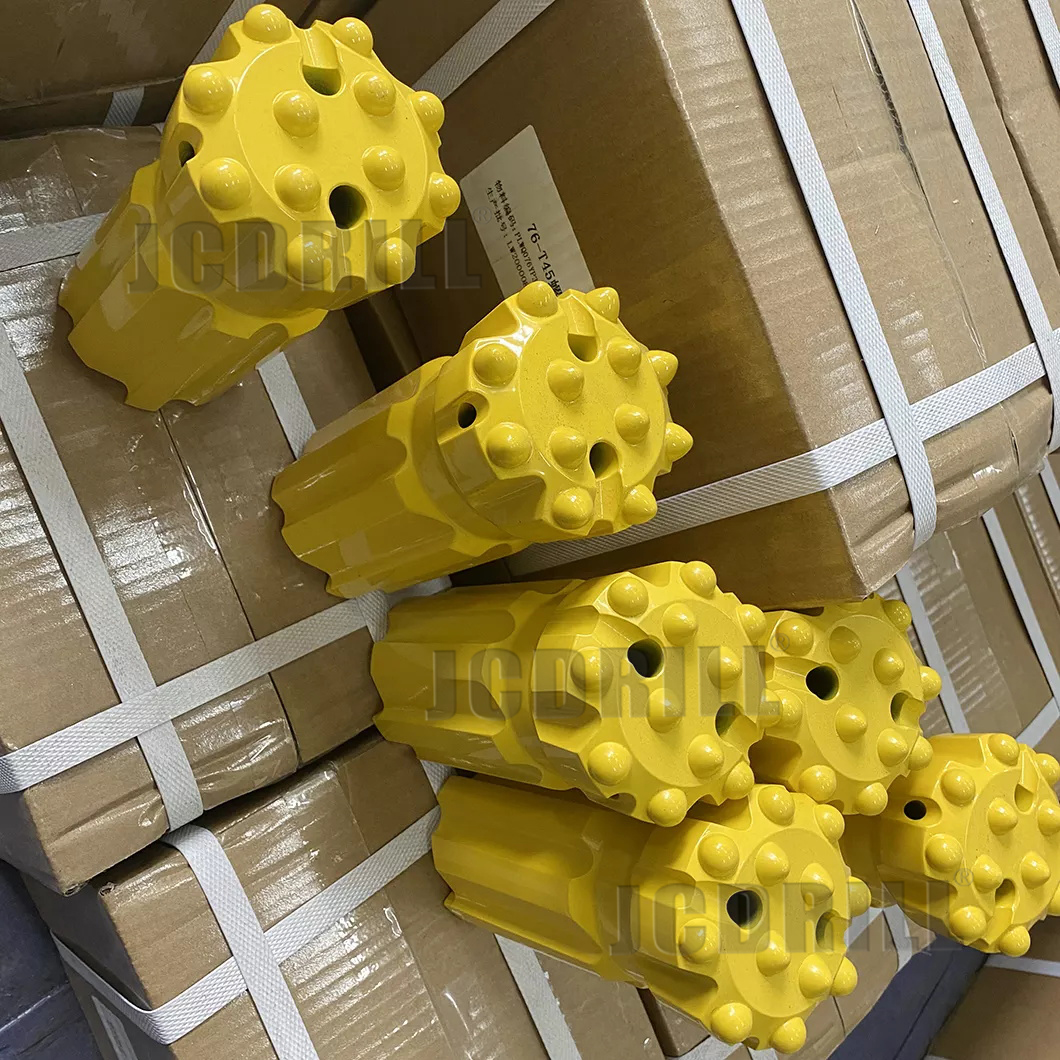

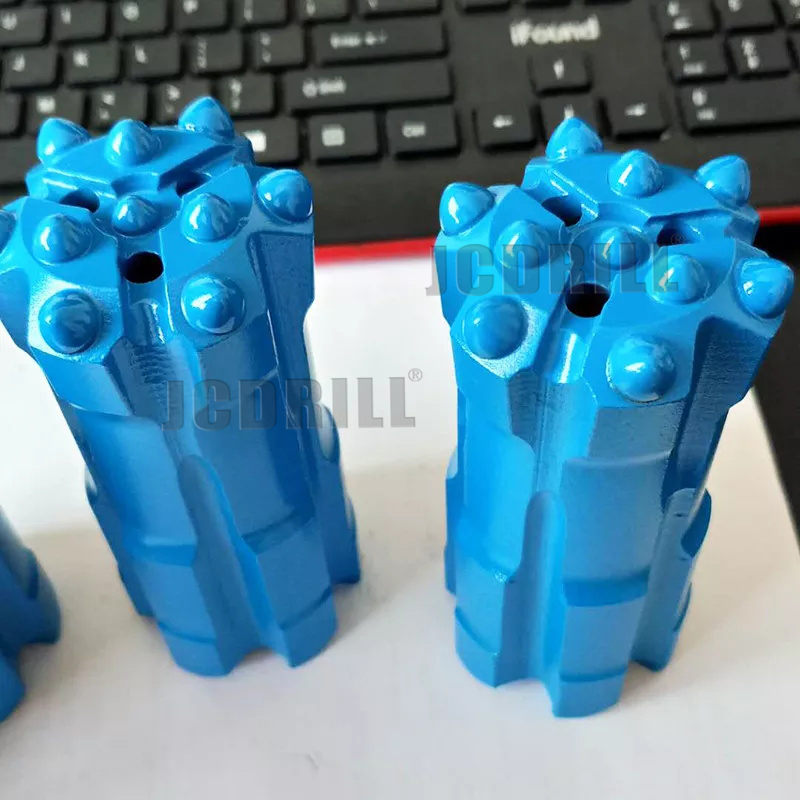

Thread Button Bits / Rock Drilling Bits for Top Hammer R3212

Thread Button Bits / Rock Drilling Bits for Top Hammer R3212 Featured Image
  • Thread Button Bits / Rock Drilling Bits for Top Hammer R3212
  • Thread Button Bits / Rock Drilling Bits for Top Hammer R3212
  • Thread Button Bits / Rock Drilling Bits for Top Hammer R3212

Short Description:

Product Name thread button bit
Material special steel and zhuzhou carbide
Color yellow,blue,black or others
Standard ISO9001
Used with thread rod
Used mine/stone quarry drilling

  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month

    • Product Detail

    Product Tags

    Product Detail

    Condition: New Processing Type Forging
    Applicable Industries: Energy & Mining, Underground Drilling And Surface Drilling Use Ore Mining, quarry,mining,blasting,construction,open bit etc.
    Video outgoing-inspection Provided Quality 100% quality similarity world top class brands
    Machinery Test Report Provided Advantages high quality and factory prices
    Marketing Type Ordinary Product Boby type Normal type or retrac type
    Brand Name JCDRILL Thread R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68
    Type Thread Button Bit Tungsten carbide Spherical, ballistic,Conical,Hemispherical
    Machine Type Drilling Tool Fact type Drop Center, Flat Face, Convex, Concave, etc
    Material Carbon steel

    Product Features

    Introduction

    Bench Drilling Thread Button Bits
    Spherical buttons/ Parabolic buttons
    Thread: R3212/R32/HL38/T38/T45/T51/T60/St58/St68
    Diameter: 35-89mm
    R3212 Drilling Button bit

    R3212
    Drill Bit Bit Dia. NO x Button x Dia. Flushing Hole Weight
    mm inch Front Gauge Angle Front Side （KG）
     1 48 1 7/8 2x9 3x11 35° 1 1 0.7
    48 1 7/8 2x9 5x11 35° 1 1 0.7
    55 2 1/8 1x12 3x14 35° 1 1 0.9
    55 2 1/8 2x10,1x10 4x12 35° 1 1 0.8
    55 2 1/8 2x10,1x10 4x10 35° 1 1 0.8
    55 2 1/8 3x9 6x10 35° 3 0.9
    60 2 3/8 2x12 3x14 40° 1 1 1.0
    60 2 3/8 2x11 5x12 40° 1 1 1.0
    60 2 3/8 2x10,1x10 4x12 40° 2 1 0.9
    60 2 3/8 3x10 6x11 40° 3 1.1
    65 2 1/2 2x13 3x14 40° 1 1 1.1
    65 2 1/2 3x12 3x14 40° 1 1 1.1
    65 2 1/2 2x12,1x12 4x12 40° 1 1 1.2
    65 2 1/2 2x12,1x12 4x14 35° 1 1 1.5
    65 2 1/2 3x12 6x12 35° 1 1 1.2
    65 2 1/2 3x12 6x12 35° 3 1.2
    70 2 3/4 3x12 3x14 35° 1 1 1.6
    70 2 3/4 3x12 6x12 35° 1 1 1.4
    70 2 3/4 3x12 6x12 35° 3 1.4
    75 3 5x10 6x12 35° 2 1 1.7
     2 55 2 1/8 16x10 1 2 0.8
    60 2 3/8 16x10 0.9
    65 2 1/2 16x10 1.0
    70 2 3/4 16x10 1.1
    75 3 16x10 1.3
    80 3 1/8 16x10 1.6
    Drill Roll Length Dimaeter Weight
    mm inch mm inch （KG）
     3 600 2' 32 1 1/4 3.53
    800 2'7'' 32 1 1/4 4.7
    900 2' 32 1 1/4 5.3
    1000 3'3'' 32 1 1/4 5.9
    1100 3'6'' 32 1 1/4 6.52
    1200 3'9'' 32 1 1/4 7.1
    600 2' 32 1 1/4 4.45
    800 2'7'' 32 1 1/4 5.6
    900 2' 32 1 1/4 6.17
    1000 3'3'' 32 1 1/4 6.8
    1100 3'6'' 32 1 1/4 7.4
    1200 3'9'' 32 1 1/4 7.9
    Coupling Length Dimaeter Thread Weight
    mm inch mm inch （KG）
     4 150 6 1/8 44 1 3/4 R3212 1
    160 6 1/4 44 1 3/4 R3212 1.1
    160 6 1/4 48 1 7/8 R3212 1.5


    详情3 详情21 详情13

    Commercial Terms of Product

    Minimum Order Quantity N/A
    Price
    Packaging Details Standard Export Delivery Package
    Delivery Time 7days
    Payment Terms T/T
    Supply Ability Based on Detailed Order
