| Condition: | New | Processing Type | Forging |
| Applicable Industries: | Energy & Mining, Underground Drilling And Surface Drilling | Use | Ore Mining, quarry,mining,blasting,construction,open bit etc. |
| Video outgoing-inspection | Provided | Quality | 100% quality similarity world top class brands |
| Machinery Test Report | Provided | Advantages | high quality and factory prices |
| Marketing Type | Ordinary Product | Boby type | Normal type or retrac type |
| Brand Name | JCDRILL | Thread | R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68 |
| Type | Thread Button Bit | Tungsten carbide | Spherical, ballistic,Conical,Hemispherical |
| Machine Type | Drilling Tool | Fact type | Drop Center, Flat Face, Convex, Concave, etc |
| Material | Carbon steel |
Introduction

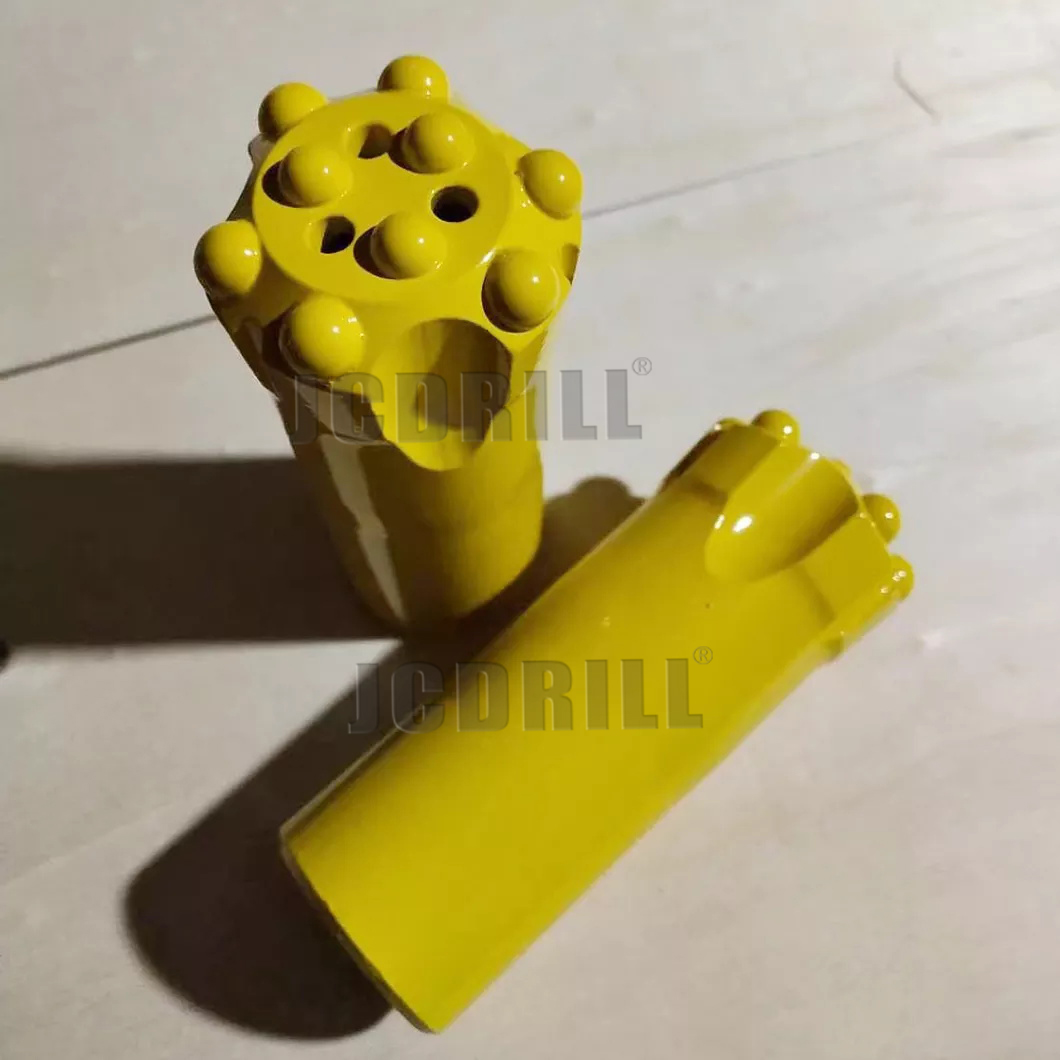

Details of our tungsten carbide thread drill bit:
| Product Name: | Button bit for rock drilling tool |
| Description: | Thread button bits made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands |
| Material: | carbide+steel |
| MOQ: | 10PCS |
| Thread type | R25,R28,R32,R3212,R38,T38,T45,T51 |
| Diameter | 38mm-127mm |
| Use | Mining and drilling |
| Color | According to the your requirement |
Concave Front: This head shape is suitable for all rock formations, especially in medium-hard condition and uniform rock condition.
Flat Front: This head shape is suitble for drilling very hard rock conditions and abrasive conditions.
Convex Front: This head shape is suitable for soft or nedium-hard rock conditions, and the bit body is not easy to wear.
Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory
Shape of tungsten carbide button:
Spherical button, gauge button, suitable for very hard rock.
Ballistic button, front button, suitable for meduim abrasive, medium hard rock.
Parabolic button, front button, gauge button, suitable for meidum abrasive, hard rock.
Flat button, guage protection.
| R3212 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
48 | 1 7/8 | 2x9 | 3x11 | 35° | 1 | 1 | 0.7 |
| 48 | 1 7/8 | 2x9 | 5x11 | 35° | 1 | 1 | 0.7 | |
| 55 | 2 1/8 | 1x12 | 3x14 | 35° | 1 | 1 | 0.9 | |
| 55 | 2 1/8 | 2x10,1x10 | 4x12 | 35° | 1 | 1 | 0.8 | |
| 55 | 2 1/8 | 2x10,1x10 | 4x10 | 35° | 1 | 1 | 0.8 | |
| 55 | 2 1/8 | 3x9 | 6x10 | 35° | 3 | 0.9 | ||
| 60 | 2 3/8 | 2x12 | 3x14 | 40° | 1 | 1 | 1.0 | |
| 60 | 2 3/8 | 2x11 | 5x12 | 40° | 1 | 1 | 1.0 | |
| 60 | 2 3/8 | 2x10,1x10 | 4x12 | 40° | 2 | 1 | 0.9 | |
| 60 | 2 3/8 | 3x10 | 6x11 | 40° | 3 | 1.1 | ||
| 65 | 2 1/2 | 2x13 | 3x14 | 40° | 1 | 1 | 1.1 | |
| 65 | 2 1/2 | 3x12 | 3x14 | 40° | 1 | 1 | 1.1 | |
| 65 | 2 1/2 | 2x12,1x12 | 4x12 | 40° | 1 | 1 | 1.2 | |
| 65 | 2 1/2 | 2x12,1x12 | 4x14 | 35° | 1 | 1 | 1.5 | |
| 65 | 2 1/2 | 3x12 | 6x12 | 35° | 1 | 1 | 1.2 | |
| 65 | 2 1/2 | 3x12 | 6x12 | 35° | 3 | 1.2 | ||
| 70 | 2 3/4 | 3x12 | 3x14 | 35° | 1 | 1 | 1.6 | |
| 70 | 2 3/4 | 3x12 | 6x12 | 35° | 1 | 1 | 1.4 | |
| 70 | 2 3/4 | 3x12 | 6x12 | 35° | 3 | 1.4 | ||
| 75 | 3 | 5x10 | 6x12 | 35° | 2 | 1 | 1.7 | |
 |
55 | 2 1/8 | 16x10 | 1 | 2 | 0.8 | ||
| 60 | 2 3/8 | 16x10 | 0.9 | |||||
| 65 | 2 1/2 | 16x10 | 1.0 | |||||
| 70 | 2 3/4 | 16x10 | 1.1 | |||||
| 75 | 3 | 16x10 | 1.3 | |||||
| 80 | 3 1/8 | 16x10 | 1.6 | |||||
| Drill Roll | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
600 | 2' | 32 | 1 1/4 | 3.53 | |||
| 800 | 2'7'' | 32 | 1 1/4 | 4.7 | ||||
| 900 | 2' | 32 | 1 1/4 | 5.3 | ||||
| 1000 | 3'3'' | 32 | 1 1/4 | 5.9 | ||||
| 1100 | 3'6'' | 32 | 1 1/4 | 6.52 | ||||
| 1200 | 3'9'' | 32 | 1 1/4 | 7.1 | ||||
| 600 | 2' | 32 | 1 1/4 | 4.45 | ||||
| 800 | 2'7'' | 32 | 1 1/4 | 5.6 | ||||
| 900 | 2' | 32 | 1 1/4 | 6.17 | ||||
| 1000 | 3'3'' | 32 | 1 1/4 | 6.8 | ||||
| 1100 | 3'6'' | 32 | 1 1/4 | 7.4 | ||||
| 1200 | 3'9'' | 32 | 1 1/4 | 7.9 | ||||
| Coupling | Length | Dimaeter | Thread | Weight | ||||
| mm | inch | mm | inch | （KG） | ||||
 |
150 | 6 1/8 | 44 | 1 3/4 | R3212 | 1 | ||
| 160 | 6 1/4 | 44 | 1 3/4 | R3212 | 1.1 | |||
| 160 | 6 1/4 | 48 | 1 7/8 | R3212 | 1.5 | |||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
