6 1/2 Api Standard Tungsten Carbide Drill Bit For Oil Well Drilling Matrix Body Pdc Drill Bits

Introduction

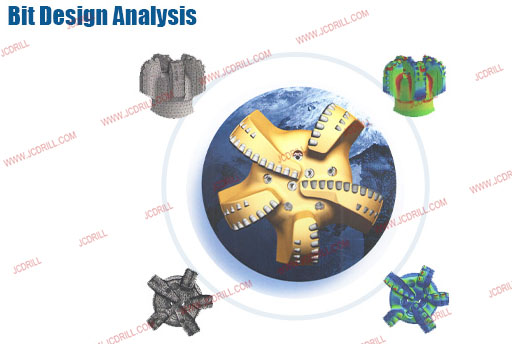

This drill bit is designed with 5 straight blades and short parabolic configuration, made with low carbon alloy steel, improving ROP and enhancing the stability of the bit. With auxiliary cutting teeth, this bit has higher sttach strength and abrasive resistance in high grind formation. Suitable for drilling in medium formation with high penetration rate.

Appliaction

1,Suit for drilling medium to medium-hard formations.

2,Evolute asymmetrical blade cutter design and balanced bit load so that bit whirl is prevented .

3,Composite gage protection and low torque design improve rate of penetration .

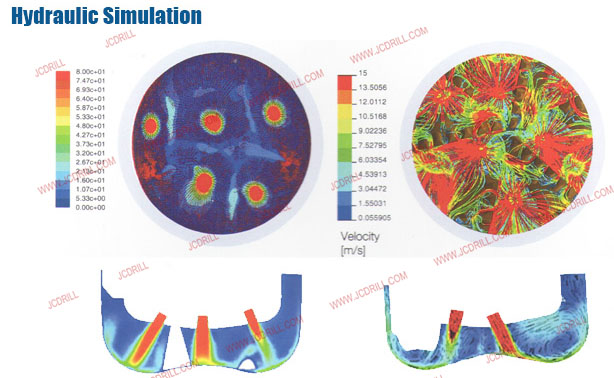

4,CFD hydraulic balance design results in better bit cleaning and cutting removal .

5,Combined utilization of high performance PDC compacts significantly prolongs bit life

Higher nozzle counts and/or fixed ports to best serve cleaning,cooling and cuttings evacuation requirements with available hydraulic flows.Allows for higher flow rates with minimal increase in pump pressure.

Feature:Diamonds are impregnated in the matrix behind the PDC cutters

Benefit:Increased footage drilled in abrasive applications
