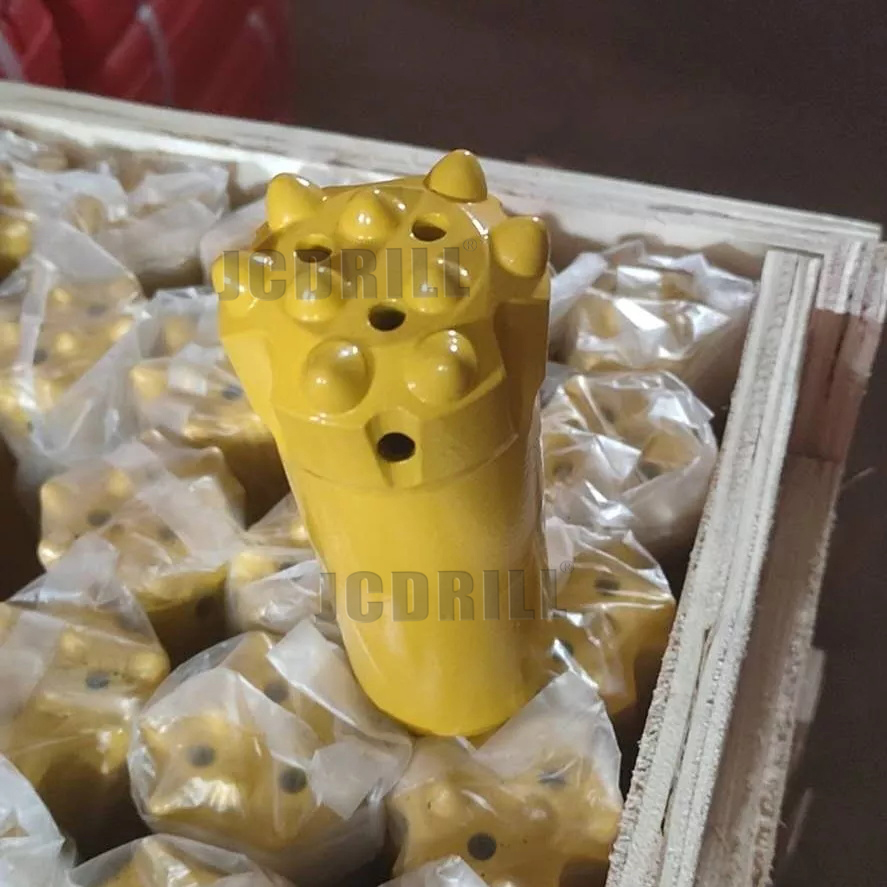

High Footage Speed T45 89mm Rock Drilling Tools Thread Button Bits

Short Description:

Product Name	thread button bit
Material	special steel and zhuzhou carbide
Color	yellow,blue,black or others
Standard	ISO9001
Used with	thread rod
Used	mine/stone quarry drilling

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

Product Detail

Condition:	New	Processing Type	Forging
Applicable Industries:	Energy & Mining, Underground Drilling And Surface Drilling	Use	Ore Mining, quarry,mining,blasting,construction,open bit etc.
Video outgoing-inspection	Provided	Quality	100% quality similarity world top class brands
Machinery Test Report	Provided	Advantages	high quality and factory prices
Marketing Type	Ordinary Product	Boby type	Normal type or retrac type
Brand Name	JCDRILL	Thread	R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68
Type	Thread Button Bit	Tungsten carbide	Spherical, ballistic,Conical,Hemispherical
Machine Type	Drilling Tool	Fact type	Drop Center, Flat Face, Convex, Concave, etc
Material	Carbon steel

Product Features

Introduction

Product Description
The ball tooth bit uses different alloy teeth (hemispherical teeth, bullet teeth, parabolic teeth, etc.) according to different rock formation structures and hardness. We can make alloy ball tooth drills of different specifications and different forms according to different needs of users. Widely used in mining, tunneling, underground plant excavation and other construction sites. It is an ideal substitute for the same type of ball tooth bit in foreign countries, with stable quality and high cost performance.

Main Features

1) High quality;

2) High resistance;

3) High footage speed;

4) Very low breakage;

5) Very low percentage of carbide falling off.

6)Wide application range.

T45
Drill Bit	Bit Dia.		NO x Button x Dia.			Flushing Hole		Weight
Drill Bit	mm	inch	Front	Gauge	Angle	Front	Side	（KG）
	spherical Buttons
	70	2 3/4	4x11	8x11	40°	2		2.3
	70	2 3/4	3x11,1x9	6x11	35°	3		2.2
	70	2 3/4	4x10,1x10	8x11	35°	4		2.2
	76	3	4x11	8x11	40°	2		2.6
	76	3	5x11	8x12	35°	2	1	2.6
	76	3	3x11,1x11	6x12	35°	3		2.4
	76	3	4x11,1x11	8x12	35°	4		2
	89	3 1/2	4x13	8x13	40°	2		4.6
	89	3 1/2	6x11	8x12	35°	2		4.6
	89	3 1/2	3x11,2x11	6x13	35°	3	1	4.1
	89	3 1/2	4x11,1x11	8x12	35°	4		4.6
	89	3 1/2	4x13,1x13	8x13	35°	4		4.6
	102	4	5x14	8x14	40°	2		5.0
	102	4	6x13	8x16	40°	2	1	5.0
	102	4	3x13,2x13	6x14	35°	3	1	4.5
	102	4	4x13,1x13	8x14	35°	4		4.5
	102	4	4x13,1x13	8x13	35°	4	1	4.5
	Parabolic Buttons
	70	2 3/4	3x11,1x9	6x11	35°	3		2.2
	70	2 3/4	4x10,1x10	8x11	35°	4		2.2
	76	3	4X11	8x11	40°	2		2.6
	76	3	5X11	8x12	35°	2	1	2.6
	76	3	3x11,1x11	6x13	35°	3	1	2.4
	76	3	4x11,1x11	8x11	35°	4		2.6
	76	3	4x11,1x11	8x12	35°	4		2.6
	89	3 1/2	4x13	8x13	40°	2		4.6
	89	3 1/2	6x11	8x12	35°	2		4.6
	89	3 1/2	3x11,2x11	6x13	35°	3	1	4.1
	89	3 1/2	4x11,1x11	8x12	35°	4		4.6
	89	3 1/2	4x13,1x13	8x13	35°	4		4.6
Drill Roll				Length		Dimaeter		Weight
Drill Roll				mm	inch	mm	inch	（KG）
				1830	6'	46	1 3/4	21.6
				2435	8'	46	1 3/4	28.3
				3050	10'	46	1 3/4	35.2
				3660	12'	46	1 3/4	42.1
				4270	14'	46	1 3/4	48.9
				5530	18'	46	1 3/4	63
				6095	20'	46	1 3/4	69.3
				1525	5'	46	1 3/4	21.2
				1830	6'	46	1 3/4	24.6
				3050	10'	46	1 3/4	38.2
				3660	12'	46	1 3/4	45
				4270	14'	46	1 3/4	51.9
				5530	18'	46	1 3/4	66
				6095	20'	46	1 3/4	72.3
				3050	10'	52	2	46.6
				3660	12'	52	2	55.8
				4270	14'	52	2	63.8
				5530	18'	52	2	81.5
				6095	20'	52	2	89.4
Coupling				Length		Dimaeter		Weight
Coupling				mm	inch	mm	inch	（KG）
				210	8 1/4	63	2 1/2	3
				210	8 1/4	66	2 4/7	3.3


Commercial Terms of Product

Minimum Order Quantity	N/A
Price
Packaging Details	Standard Export Delivery Package
Delivery Time	7days
Payment Terms	T/T
Supply Ability	Based on Detailed Order
