| Condition: | New | Processing Type | Forging |
| Applicable Industries: | Energy & Mining, Underground Drilling And Surface Drilling | Use | Ore Mining, quarry,mining,blasting,construction,open bit etc. |
| Video outgoing-inspection | Provided | Quality | 100% quality similarity world top class brands |
| Machinery Test Report | Provided | Advantages | high quality and factory prices |
| Marketing Type | Ordinary Product | Boby type | Normal type or retrac type |
| Brand Name | JCDRILL | Thread | R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68 |
| Type | Thread Button Bit | Tungsten carbide | Spherical, ballistic,Conical,Hemispherical |
| Machine Type | Drilling Tool | Fact type | Drop Center, Flat Face, Convex, Concave, etc |
| Material | Carbon steel |
Introduction

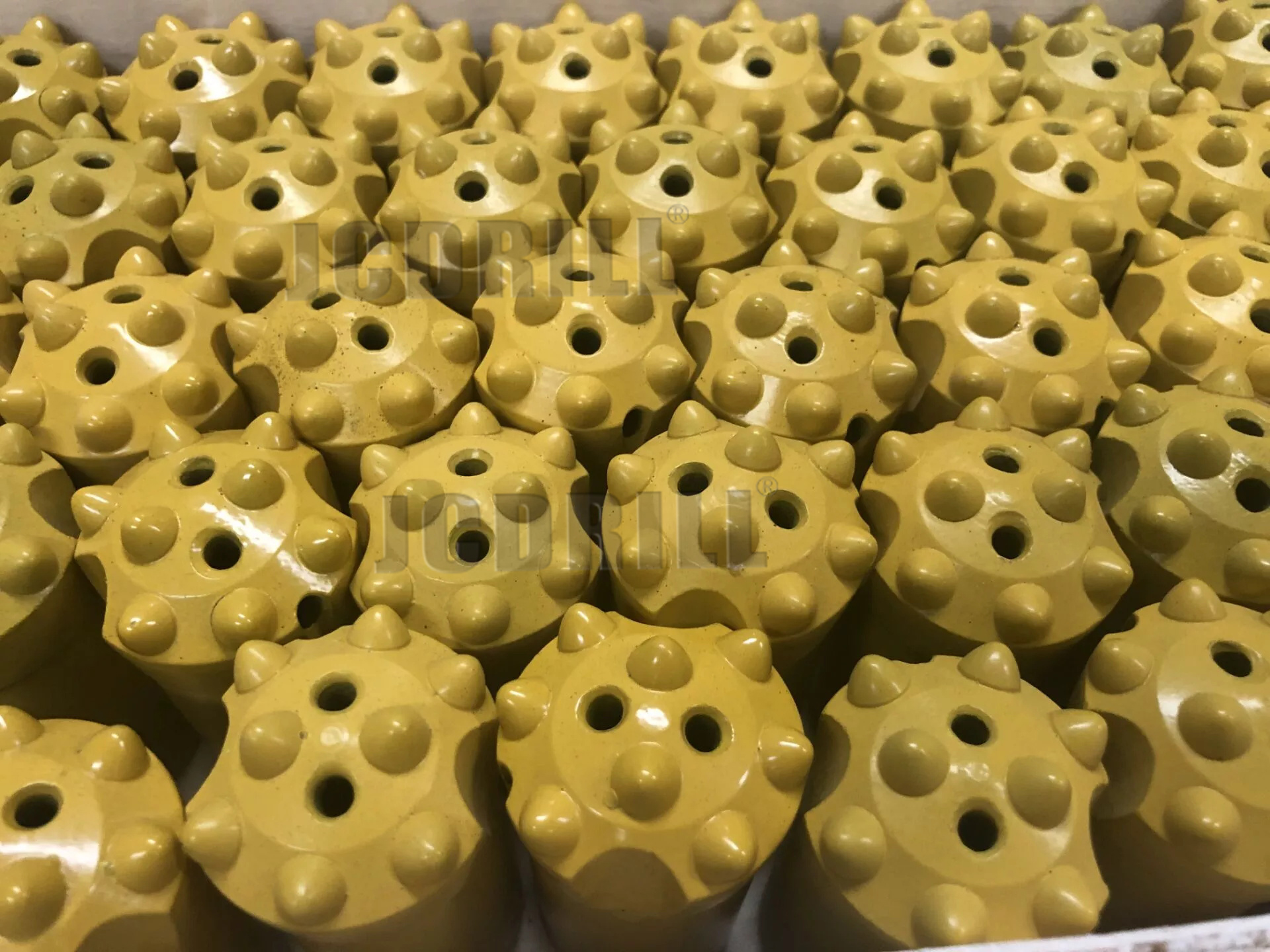

76mm, 89mm T45 Threaded Button Bit for Top Hammer Drills
JCDRILL With the top quality of alloy steels and the best carbides made in China, we produce all threaded button bits by hot press technology.
A comprehensive range of various button bits shown as below:
Thread sizes: R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST60, GT60;
Head diameters: 33mm ~ 152mm;
Face designs; flat face, drop center, uni-face;
Skirt designs: normal, retract, straigh retract
| T45 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
spherical Buttons | |||||||
| 70 | 2 3/4 | 4x11 | 8x11 | 40° | 2 | 2.3 | ||
| 70 | 2 3/4 | 3x11,1x9 | 6x11 | 35° | 3 | 2.2 | ||
| 70 | 2 3/4 | 4x10,1x10 | 8x11 | 35° | 4 | 2.2 | ||
| 76 | 3 | 4x11 | 8x11 | 40° | 2 | 2.6 | ||
| 76 | 3 | 5x11 | 8x12 | 35° | 2 | 1 | 2.6 | |
| 76 | 3 | 3x11,1x11 | 6x12 | 35° | 3 | 2.4 | ||
| 76 | 3 | 4x11,1x11 | 8x12 | 35° | 4 | 2 | ||
| 89 | 3 1/2 | 4x13 | 8x13 | 40° | 2 | 4.6 | ||
| 89 | 3 1/2 | 6x11 | 8x12 | 35° | 2 | 4.6 | ||
| 89 | 3 1/2 | 3x11,2x11 | 6x13 | 35° | 3 | 1 | 4.1 | |
| 89 | 3 1/2 | 4x11,1x11 | 8x12 | 35° | 4 | 4.6 | ||
| 89 | 3 1/2 | 4x13,1x13 | 8x13 | 35° | 4 | 4.6 | ||
| 102 | 4 | 5x14 | 8x14 | 40° | 2 | 5.0 | ||
| 102 | 4 | 6x13 | 8x16 | 40° | 2 | 1 | 5.0 | |
| 102 | 4 | 3x13,2x13 | 6x14 | 35° | 3 | 1 | 4.5 | |
| 102 | 4 | 4x13,1x13 | 8x14 | 35° | 4 | 4.5 | ||
| 102 | 4 | 4x13,1x13 | 8x13 | 35° | 4 | 1 | 4.5 | |
| Parabolic Buttons | ||||||||
| 70 | 2 3/4 | 3x11,1x9 | 6x11 | 35° | 3 | 2.2 | ||
| 70 | 2 3/4 | 4x10,1x10 | 8x11 | 35° | 4 | 2.2 | ||
| 76 | 3 | 4X11 | 8x11 | 40° | 2 | 2.6 | ||
| 76 | 3 | 5X11 | 8x12 | 35° | 2 | 1 | 2.6 | |
| 76 | 3 | 3x11,1x11 | 6x13 | 35° | 3 | 1 | 2.4 | |
| 76 | 3 | 4x11,1x11 | 8x11 | 35° | 4 | 2.6 | ||
| 76 | 3 | 4x11,1x11 | 8x12 | 35° | 4 | 2.6 | ||
| 89 | 3 1/2 | 4x13 | 8x13 | 40° | 2 | 4.6 | ||
| 89 | 3 1/2 | 6x11 | 8x12 | 35° | 2 | 4.6 | ||
| 89 | 3 1/2 | 3x11,2x11 | 6x13 | 35° | 3 | 1 | 4.1 | |
| 89 | 3 1/2 | 4x11,1x11 | 8x12 | 35° | 4 | 4.6 | ||
| 89 | 3 1/2 | 4x13,1x13 | 8x13 | 35° | 4 | 4.6 | ||
| Drill Roll | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
1830 | 6' | 46 | 1 3/4 | 21.6 | |||
| 2435 | 8' | 46 | 1 3/4 | 28.3 | ||||
| 3050 | 10' | 46 | 1 3/4 | 35.2 | ||||
| 3660 | 12' | 46 | 1 3/4 | 42.1 | ||||
| 4270 | 14' | 46 | 1 3/4 | 48.9 | ||||
| 5530 | 18' | 46 | 1 3/4 | 63 | ||||
| 6095 | 20' | 46 | 1 3/4 | 69.3 | ||||
 |
1525 | 5' | 46 | 1 3/4 | 21.2 | |||
| 1830 | 6' | 46 | 1 3/4 | 24.6 | ||||
| 3050 | 10' | 46 | 1 3/4 | 38.2 | ||||
| 3660 | 12' | 46 | 1 3/4 | 45 | ||||
| 4270 | 14' | 46 | 1 3/4 | 51.9 | ||||
| 5530 | 18' | 46 | 1 3/4 | 66 | ||||
| 6095 | 20' | 46 | 1 3/4 | 72.3 | ||||
 |
3050 | 10' | 52 | 2 | 46.6 | |||
| 3660 | 12' | 52 | 2 | 55.8 | ||||
| 4270 | 14' | 52 | 2 | 63.8 | ||||
| 5530 | 18' | 52 | 2 | 81.5 | ||||
| 6095 | 20' | 52 | 2 | 89.4 | ||||
| Coupling | Length | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
210 | 8 1/4 | 63 | 2 1/2 | 3 | |||
| 210 | 8 1/4 | 66 | 2 4/7 | 3.3 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
