| Condition: | New | Processing Type | Forging |
| Applicable Industries: | Energy & Mining, Underground Drilling And Surface Drilling | Use | Ore Mining, quarry,mining,blasting,construction,open bit etc. |
| Video outgoing-inspection | Provided | Quality | 100% quality similarity world top class brands |
| Machinery Test Report | Provided | Advantages | high quality and factory prices |
| Marketing Type | Ordinary Product | Boby type | Normal type or retrac type |
| Brand Name | JCDRILL | Thread | R25, R28, R32, R3212 R35, R38, T38, T45, T51, ST58, GT60, GT68 |
| Type | Thread Button Bit | Tungsten carbide | Spherical, ballistic,Conical,Hemispherical |
| Machine Type | Drilling Tool | Fact type | Drop Center, Flat Face, Convex, Concave, etc |
| Material | Carbon steel |
Introduction
Product details:

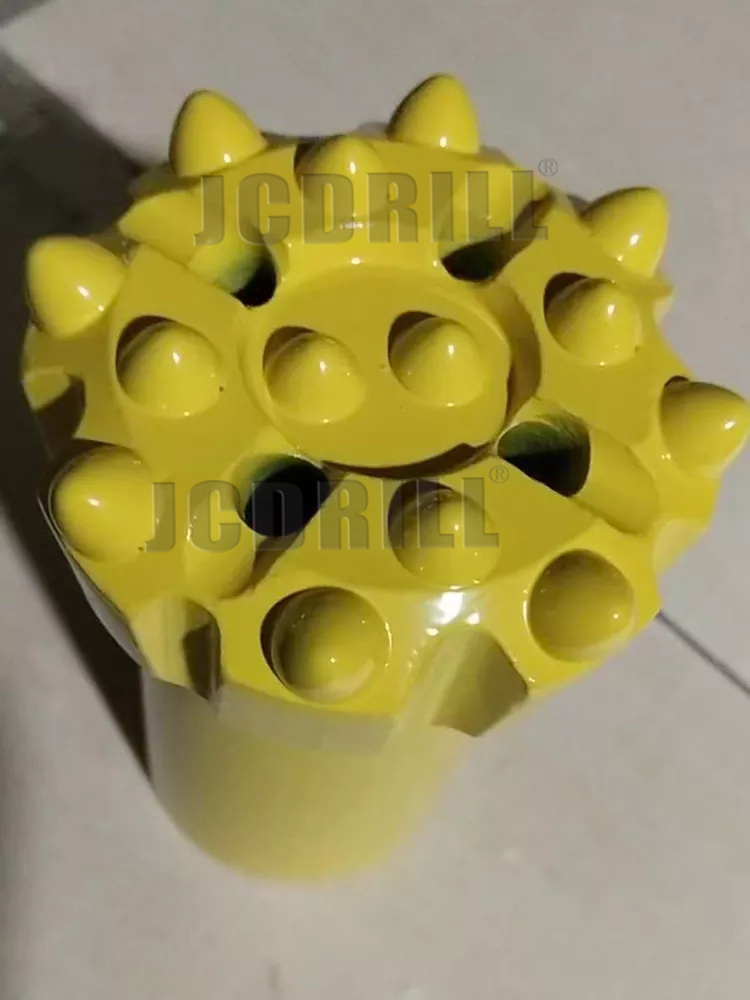

JCDRILL rock drilling button bits are widely used in all kinds of mining, drilling, quarrying, engineering, construction, water well drilling, oil exploring drifting and tunneling drilling.
We can supply waveform thread button bits, Trapezoidal thread drill bits, Retrac thread rock drill tools.
Product features:
Premium designs and steel and premium tungsten carbide insert grade T6 supplied. Offers industry-leading strength and penetration rates for more productivity,Excellent straightness and hole clean quality,Get max drilling performance for rock drills with long life to save up fuel cost rate.
| R28 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
Spherical Buttons | |||||||
| 37 | 1 29/64 | 2x7 | 5x9 | 30° | 1 | 1 | 0.5 | |
| 38 | 1 1/2 | 2x8 | 4x9 | 30° | 1 | 2 | 0.6 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 30° | 1 | 1 | 0.6 | |
| 41 | 1 5/8 | 2x8 | 5x9 | 35° | 1 | 1 | 0.7 | |
| 43 | 1 2/3 | 2x9 | 5x9 | 30° | 1 | 2 | 0.8 | |
| 45 | 1 3/4 | 2x9 | 5x10 | 30° | 1 | 2 | 0.9 | |
| 45 | 1 3/4 | 3x8 | 6x9 | 30° | 1 | 3 | 0.9 | |
| Parabolic Buttons | ||||||||
| 37 | 1 4/9 | 2x7 | 5x9 | 30° | 1 | 1 | 0.5 | |
| 38 | 1 1/2 | 2x8 | 4x9 | 30° | 1 | 2 | 0.6 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 30° | 1 | 1 | 0.6 | |
| 41 | 1 5/8 | 2x8 | 5x9 | 35° | 1 | 1 | 0.7 | |
| 43 | 1 2/3 | 2x9 | 5x9 | 35° | 1 | 2 | 0.8 | |
| 45 | 1 3/4 | 2x9 | 5x10 | 30° | 1 | 2 | 0.9 | |
| 45 | 1 3/4 | 3x8 | 6x9 | 35° | 1 | 3 | 0.9 | |
| 48 | 1 7/8 | 2x9 | 5x11 | 30° | 1 | 2 | 1.0 | |
| 48 | 1 7/8 | 3x8 | 6x9 | 35° | 1 | 3 | 1.0 | |
 |
38 | 1 1/2 | 14x8 | 1 | 2 | 0.6 | ||
| 41 | 1 5/8 | 14x8 | 1 | 4 | 0.7 | |||
| 43 | 1 2/3 | 14x8 | 1 | 4 | 0.7 | |||
| 45 | 1 3/4 | 14x8 | 1 | 4 | 0.9 | |||
| 51 | 2 | 14x8 | 1 | 4 | 1.1 | |||
| Drill Roll | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
2400 | 7'10" | 28 | 1 1/8 | 12.2 | |||
| 2750 | 9' | 28 | 1 1/8 | 14.4 | ||||
| 3700 | 12'11/2" | 28 | 1 1/8 | 18.9 | ||||
| 4000 | 13'1/8" | 28 | 1 1/8 | 20.4 | ||||
| 4310 | 14'11/2" | 28 | 1 1/8 | 22.0 | ||||
| 4920 | 16'11/2" | 28 | 1 1/8 | 25.3 | ||||
| 2900 | 9'61/8" | 32 | 1 1/4 | 18.8 | ||||
| 3090 | 10'11/2" | 32 | 1 1/4 | 20.0 | ||||
| 3700 | 12'11/2" | 32 | 1 1/4 | 24.0 | ||||
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.9 | ||||
| 3090 | 10'11/2" | 32 | 1 1/4 | 20.0 | ||||
| 3700 | 12'11/2" | 32 | 1 1/4 | 23.5 | ||||
| 3090 | 10'11/2" | 32 | 1 1/4 | 20.0 | ||||
| 3700 | 12'11/2" | 32 | 1 1/4 | 24.0 | ||||
| 4000 | 13'13/8" | 32 | 1 1/4 | 25.9 | ||||
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.9 | ||||
| 3050 | 10' | 28 | 1 1/8 | 15.0 | ||||
| 3050 | 10' | 28 | 1 1/8 | 15.0 | ||||
| Coupling | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
150 | 5 7/8 | 44 | 1 3/4 | 1.0 | |||
| 150 | 5 7/8 | 40 | 1 37/64 | 0.9 | ||||
| 170 | 6 3/4 | 55 | 2 5/32 | 2.0 | ||||
| 160 | 6 5/16 | 45 | 1 3/4 | 1.2 | ||||
| 160 | 6 5/16 | 56 | 1 13/64 | 2.5 | ||||
| Minimum Order Quantity | N/A |
| Price | |

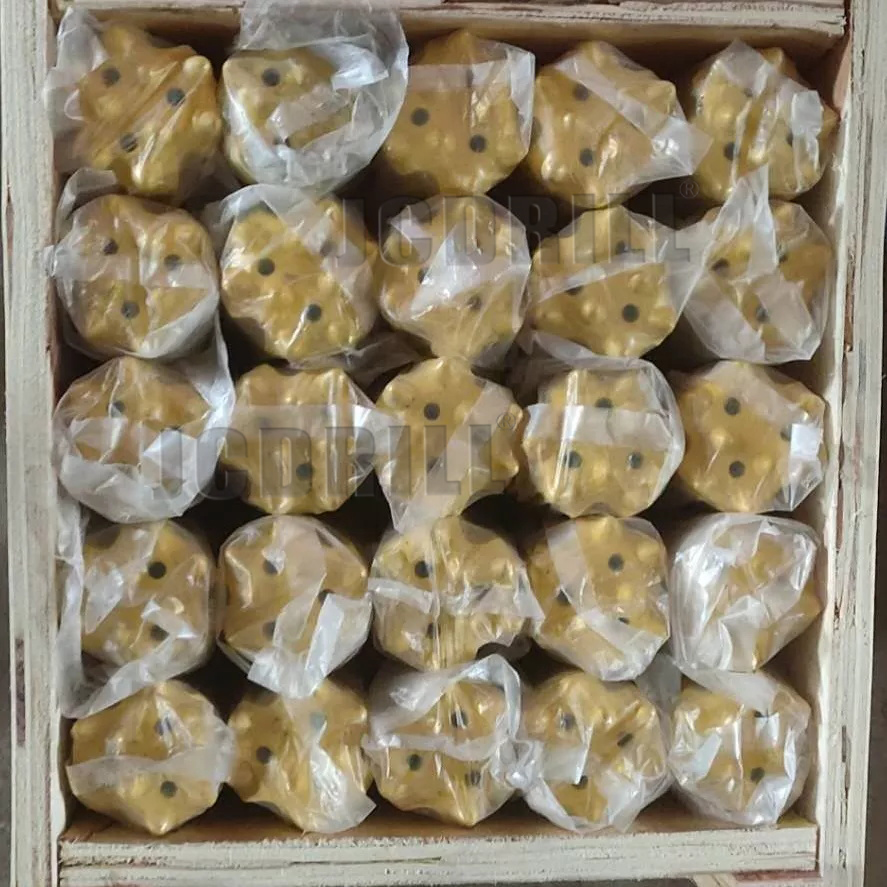

| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
