| Condition | New | Material | Carbon steel |
| Applicable Industries | Construction works , Energy & Mining | Processing Type | Forging |
| Video outgoing-inspection | Provided | Use | Ore Mining |
| Machinery Test Report | Provided | Product name | drill rod |
| Marketing Type | Hot Product 2022 | Application | tunneling, mining |
| Brand Name | JCDRILL | Usage | top hammer drilling |
| Type | drill rod | Name | tunneling drill rod |
| Machine Type | Drilling Equipment | Word | mining drill rod |
Introduction

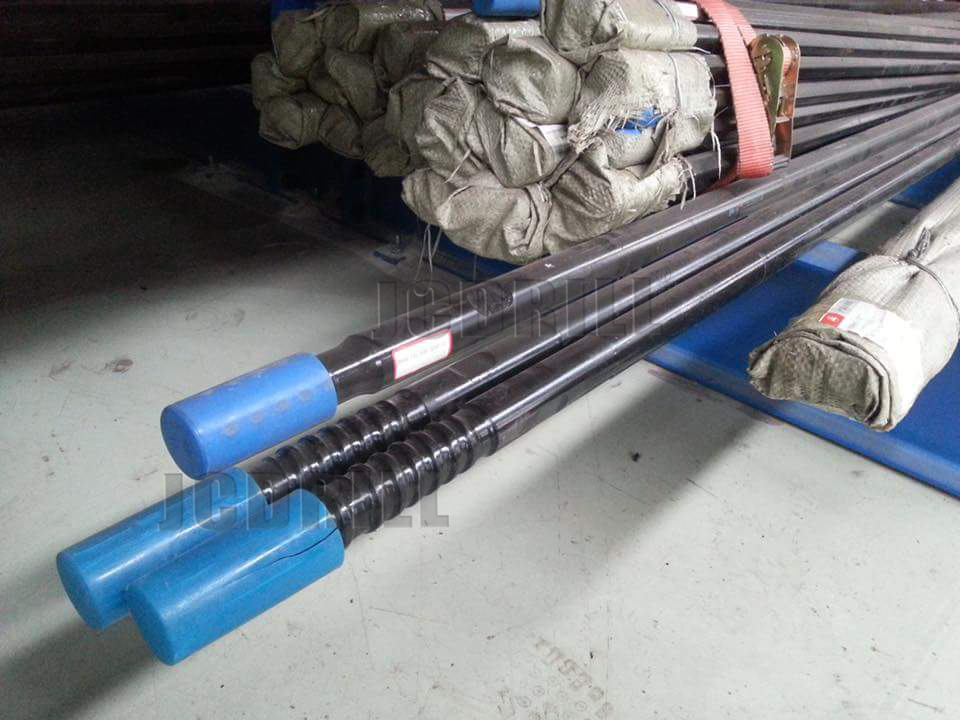

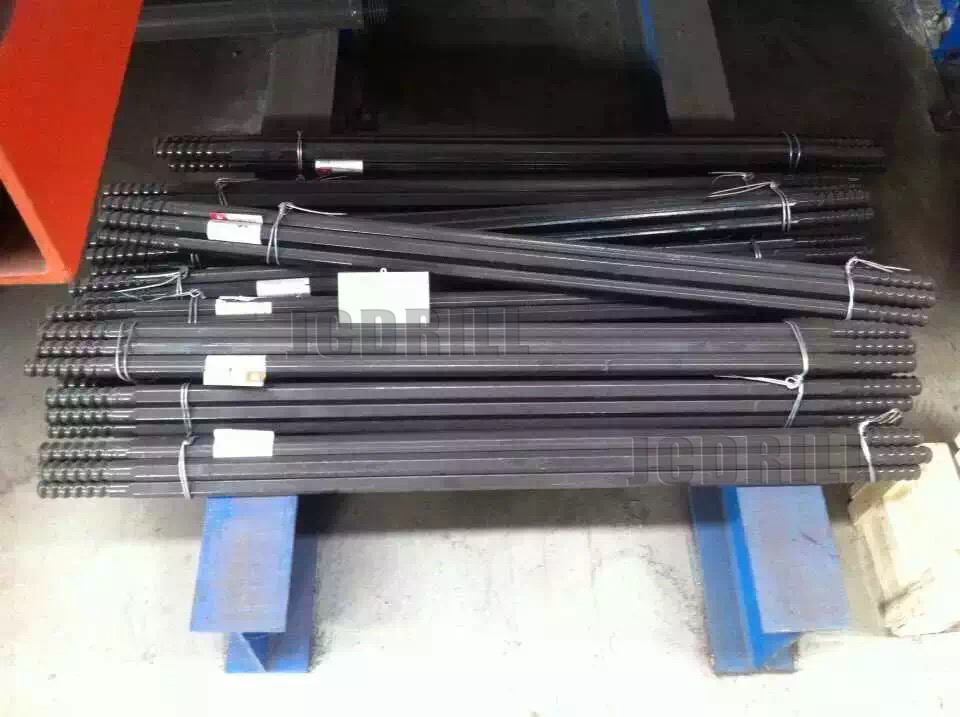

R28 Flushing Hole 9.6mm R28 Drifter Rod
R32-Hex 32-R28 Flushing Hole 9.6mm R28 Drifter Rod
Description
Drill rod using R28 thread system. With R32 thread on one shank end. Suited for short hole drilling operations.
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Type: Hex. Drifter Rod, Extension Rod, Speed Rod, MF-Rod
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
• R28 thread system
• Suitable for small hole range
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R28 Drifter Rod R32-Hex 32-R28 Flushing Hole 9.6 mm With Slimmed Shank End For Female Shank
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification
| R28 | ||||||||
| Drill Bit | Bit Dia. | NO x Button x Dia. | Flushing Hole | Weight | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | （KG） | |
 |
Spherical Buttons | |||||||
| 37 | 1 29/64 | 2x7 | 5x9 | 30° | 1 | 1 | 0.5 | |
| 38 | 1 1/2 | 2x8 | 4x9 | 30° | 1 | 2 | 0.6 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 30° | 1 | 1 | 0.6 | |
| 41 | 1 5/8 | 2x8 | 5x9 | 35° | 1 | 1 | 0.7 | |
| 43 | 1 2/3 | 2x9 | 5x9 | 30° | 1 | 2 | 0.8 | |
| 45 | 1 3/4 | 2x9 | 5x10 | 30° | 1 | 2 | 0.9 | |
| 45 | 1 3/4 | 3x8 | 6x9 | 30° | 1 | 3 | 0.9 | |
| Parabolic Buttons | ||||||||
| 37 | 1 4/9 | 2x7 | 5x9 | 30° | 1 | 1 | 0.5 | |
| 38 | 1 1/2 | 2x8 | 4x9 | 30° | 1 | 2 | 0.6 | |
| 38 | 1 1/2 | 2x7 | 5x9 | 30° | 1 | 1 | 0.6 | |
| 41 | 1 5/8 | 2x8 | 5x9 | 35° | 1 | 1 | 0.7 | |
| 43 | 1 2/3 | 2x9 | 5x9 | 35° | 1 | 2 | 0.8 | |
| 45 | 1 3/4 | 2x9 | 5x10 | 30° | 1 | 2 | 0.9 | |
| 45 | 1 3/4 | 3x8 | 6x9 | 35° | 1 | 3 | 0.9 | |
| 48 | 1 7/8 | 2x9 | 5x11 | 30° | 1 | 2 | 1.0 | |
| 48 | 1 7/8 | 3x8 | 6x9 | 35° | 1 | 3 | 1.0 | |
 |
38 | 1 1/2 | 14x8 | 1 | 2 | 0.6 | ||
| 41 | 1 5/8 | 14x8 | 1 | 4 | 0.7 | |||
| 43 | 1 2/3 | 14x8 | 1 | 4 | 0.7 | |||
| 45 | 1 3/4 | 14x8 | 1 | 4 | 0.9 | |||
| 51 | 2 | 14x8 | 1 | 4 | 1.1 | |||
| Drill Roll | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
2400 | 7'10" | 28 | 1 1/8 | 12.2 | |||
| 2750 | 9' | 28 | 1 1/8 | 14.4 | ||||
| 3700 | 12'11/2" | 28 | 1 1/8 | 18.9 | ||||
| 4000 | 13'1/8" | 28 | 1 1/8 | 20.4 | ||||
| 4310 | 14'11/2" | 28 | 1 1/8 | 22.0 | ||||
| 4920 | 16'11/2" | 28 | 1 1/8 | 25.3 | ||||
| 2900 | 9'61/8" | 32 | 1 1/4 | 18.8 | ||||
| 3090 | 10'11/2" | 32 | 1 1/4 | 20.0 | ||||
| 3700 | 12'11/2" | 32 | 1 1/4 | 24.0 | ||||
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.9 | ||||
| 3090 | 10'11/2" | 32 | 1 1/4 | 20.0 | ||||
| 3700 | 12'11/2" | 32 | 1 1/4 | 23.5 | ||||
| 3090 | 10'11/2" | 32 | 1 1/4 | 20.0 | ||||
| 3700 | 12'11/2" | 32 | 1 1/4 | 24.0 | ||||
| 4000 | 13'13/8" | 32 | 1 1/4 | 25.9 | ||||
| 4310 | 14'11/2" | 32 | 1 1/4 | 27.9 | ||||
| 3050 | 10' | 28 | 1 1/8 | 15.0 | ||||
| 3050 | 10' | 28 | 1 1/8 | 15.0 | ||||
| Coupling | Bit Dia. | Dimaeter | Weight | |||||
| mm | inch | mm | inch | （KG） | ||||
 |
150 | 5 7/8 | 44 | 1 3/4 | 1.0 | |||
| 150 | 5 7/8 | 40 | 1 37/64 | 0.9 | ||||
| 170 | 6 3/4 | 55 | 2 5/32 | 2.0 | ||||
| 160 | 6 5/16 | 45 | 1 3/4 | 1.2 | ||||
| 160 | 6 5/16 | 56 | 1 13/64 | 2.5 | ||||
| Minimum Order Quantity | N/A |
| Price | |
| Packaging Details | Standard Export Delivery Package |
| Delivery Time | 7days |
| Payment Terms | T/T |
| Supply Ability | Based on Detailed Order |
